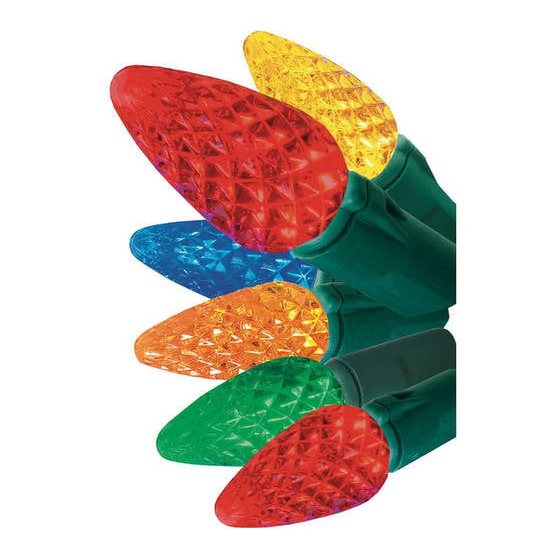

LED 100 C5 LIGHTS
LED-7
FOR INDOOR AND OUTDOOR USE
IMPORTANT SAFETY INSTRUCTIONS
When using electric products, basic precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
a)
b) Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use. When products
are used in outdoor applications, connect the product to a Ground Fault Circuit Interrupting (GFCI) outlet. If
one is not provided, contact a qualified electrician for proper installation.
c) This seasonal use product is not intended for permanent installation or use.
d) Do not mount or place near gas or electric heaters, fireplaces, candles or other similar sources of heat.
e) Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.
f) Do not let lamps rest on the supply cord or on any wire.
g) Unplug the product when leaving the house, when retiring for the night, or if left unattended.
h) This is an electric product-not a toy! To avoid risk of fire, burns, personal injury and electric shock it
should not be played with or placed where small children can reach it.
i) Do not use this product for other than its intended use.
j) Do not hang ornaments or other objects from cord, wire, or light string.
k) Do not close doors or windows on the product or extension cords as this may damage the wire insulation.
l) Do not cover the product with cloth, paper or any material not part of the product when in use.
m)This product is equipped with push-in type lamps. Do not twist lamps.
n) This product employs overload protection (fuse). A blown fuse indicates an overload or short –circuit
situation. If the fuse blows, unplug the product from the outlet. Also unplug any additional strings or
products that may be attached to the product. Replace the fuse as per the user servicing instructions (follow
product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit
may be present and the product should be discarded.
o) Read and follow all instructions that are on the product or provided with the product.
SAVE THESE INSTRUCTIONS
p)
USE AND CARE INSTRUCTIONS
a) When the product is placed on a live tree, the tree should be well maintained and fresh. Do not place
on live trees in which the needles are brown or break off easily. Keep the tree holder filled with water.
b) If the product is placed on a tree, the tree should be well secured and stable.
c) Before using or reusing, inspect product carefully. Discard any products that have cut, damaged, or frayed wire
insulation or cords, cracks in the lampholders or enclosures, loose connections, or exposed copper wire.
d) When storing the product, carefully remove the product from wherever it is placed, including tree, branches, or
bushes, to avoid any undue strain or stress on the product conductors, connections, and wires.
e) When not in use, store neatly in a cool, dry location protected from sunlight.
USER SERVICING INSTRUCTIONS
Replace the fuse.
a) Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.
b) Using a flathead screwdriver, open fuse cover.
Slide open the fuse access cover on top of attachment plug towards blades.
c) Remove fuses carefully.
d) Risk of fire. Replace fuse only with 3 Amp, 125 Volt fuse (provided with product).
e) Close fuse cover. Slide closed the fuse access cover on top of attachment plug.
f) Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that should not be removed.
Discard product if the attachment plug is damaged.
MODEL NO.
3LED-C5-100(0.067)
-SEE OTHER SIDE-
-CONTINUED FROM OTHER SIDE-
Replace the lamp.
Step 1:Grasp plug and remove from the receptacle or other outlet device.
Do not unplug by pulling cord.
Step 2: Pull lamp and plastic base
straight out of lampholder.
If the new lamp base does not fit in lampholder, follow the steps below step 3.
a) Remove the base of burned out lamp by straightening lamp leads and gently pull lamp out.
b) Thread leads of new lamp through holes in old base with one lead in each hole.
c) After lamp is fully inserted into base, bend each lead up, like other lamps in the
light set so that the leads will touch the contacts inside the lampholder.
CAUTION:
1.This lighting string is rated 8.0 Watts (0.067 Amps),do not overload. Connect other lighting
strings or decorative outfits end-to end up to a maximum of 210 Watts (1.75 Amps) total.
lf connecting to a lighting string that does not have a Wattage (W) rating {found on the tag within 6 inches of the
plug} calculate the wattage as follows: Multiply the current(___A) which is on the flag-type tag by 120.
For Example: Lighting string is rated 120V, 60 Hz, 0.2 Amps. 0.2×120=24 Watts
Add the wattage of each light string together for a total of 210 Watts or less. (Do not exceed 210 Watts.)
2. a) replace lamps only with 3.3 volt, 0.066 watt spare lamps provided with product. b) Risk of fire. This product
does not contain lamp shunts, which allow the product to operate if one lamp burns out. Do not replace lamps
with other than the spare lamps provided with this product. c) DO NOT OPERATE WITH BULBS MISSING
FROM SOCKETS. MISSING BULBS SHOULD BE REPLACED PROMPTLY.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
⑴ this device may not cause harmful interference, and
⑵ this device must accept any interference received, including interference that may cause undesired operation.
Modifications not approved by the party responsible for compliance could void user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
For questions and/or assistance, call customer service at 1-877-398-7337
or visit us on the web at www.geholidaylighting.com
© 2012 Nicolas Holiday Inc., 9F., No. 37, Guangfu North Rd. Taipei, Taiwan 10560 All rights reserved.
TROUBLE SHOOTING
PROBLEM
POSSIBLE CAUSE
If the product
One or more of the based LEDs may
does not light
have loosened from the socket during
transporting. There is a break in the
circuit between the LED leads and the
socket terminals. Fuse(s) may have
moved.
If a based LED
One or more of the based bulbs may
is missing
have come out of the socket when
transporting.
If an LED shorts
Incorrect LED, premature LED failure or
or opens
voltage is too high.
Step 3: Replace lamp with only
3.3 Volt, 0.066 Watt, LED type
lamp (provided with product).
FP-12 PRINTED IN CHINA
CORRECTIVE ACTION
Unplug the set at the outlet. Starting with the first unlit
LED, gently push (don' t twist) each LED base firmly
into the socket. If still does not light, then remove
each based LED and check for out of place lead
wires. Open fuse door and check fuses.
Mark socket(s) with a piece of tape and unplug the
set. Replace the based LED or use one of the spare
based LEDs included with product.
The LED may be out or dimly lit. Replace bad LEDs
as soon as you find them.
