INSTALLATION INSTRUCTIONS

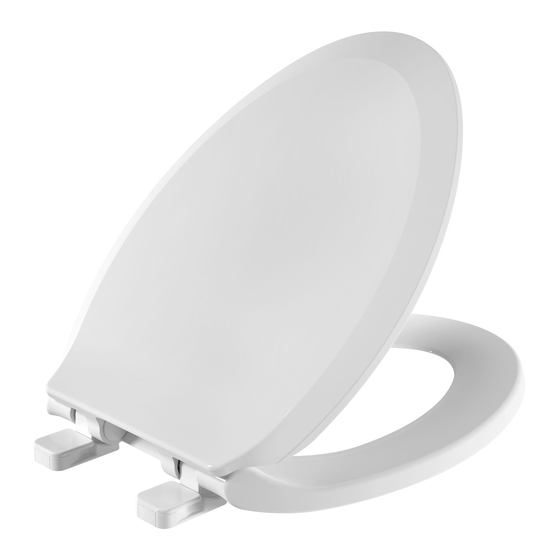

Toilet Seat / Top and Bottom Mount
5503A Elongated
5503B Round Front
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read
these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
NOTE: Pictures may not exactly depict toilet seat and components.
INSTALLATION #1: BOTTOM MOUNT WITH PLASTIC WINGNUT
Side view of the toilet
seat installation parts.
Hinge Cover
Plastic
Bolt
Plastic Wing Nut
3
With the plastic bolts installed, thread the
winged plastic nuts on to the bolts.
INSTALLATION #2: TOP MOUNT WITH RUBBER PLUG
Side view of the toilet seat installation parts.
Hinge Cover
Stainless Steel Bolt
2
Push ONLY until
bulb goes through
NOTE: FLANGE MUST REMAIN ABOVE THE SURFACE.
DO NOT ALLOW PLUG TO FALL THROUGH!
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2019
1
Hinge
Position the seat and align hinges
over holes on toilet bowl.
4
Tighten the bolts using your screwdriver.
Hinge
Rubber Plug
Push down
together
2
When the seat is properly aligned with
the front edge of the bowl slip the bolt
through the bowl bolt holes.
5
The hinge cap covers are designed to snap
lock on to the hinge. Position the hinge covers
and push down on the cover.
1
PLUG
Flange
Bulb
For ease of installation of black rubber plugs, insert
steel bolt (capture a few threads) and wet the lower
area with some water (soapy water works best).
3
Once plug is in place, unscrew and remove
bolts and keep nearby for step 4.
Bolt
Washer
Wet this area
with water
Unscrew and
remove bolts
760226-100 Rev. 2 7/19
