Quick Start Guide
This quick start guide is intended to provide a quick overview of your pipette's key
features and to offer basic instructions for getting started. For detailed information,
please refer to the operating instructions that can be found at
biosciences.com
Intended Use
This is a general-purpose laboratory instrument for use in research only. VIAFLO/VOYAGER
Electronic Pipettes are used for aspirating and dispensing aqueous liquids in the volume range of
0.5 –5000 μl using GripTip™ pipette tips only, see www.integra-biosciences.com.
Battery Charge
Low Battery
Blinking red
Getting Started
Language Selection
From the Main Menu, use the Touch Wheel to scroll to the Toolbox and press OK. Use the
"Language" option to select the desired language.
Attaching GripTips
Press the pipette into the GripTips of the appropriate size until you hear and feel a click indicating
that a seal has been achieved. When loading GripTips using a multichannel pipette, slowly rock the
pipette from one side to the other side to ensure the proper seal is achieved.
161951_V10_QSG_Electronic_Pipettes.docx

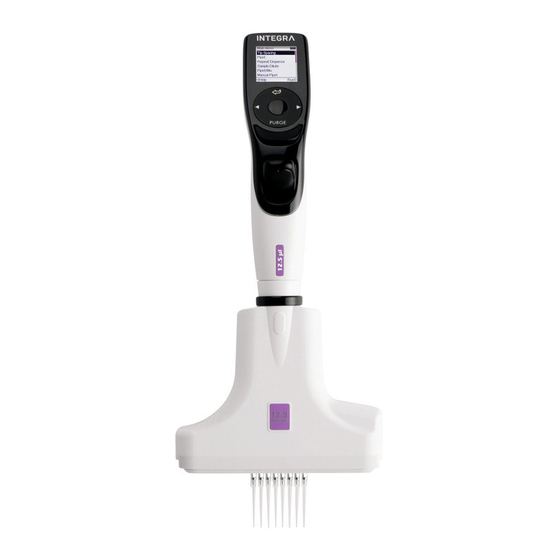

VIAFLO / VOYAGER Electronic Pipettes
in different languages.
Charge the battery completely before first use.
The supply voltage must meet the requirements of the mains
adapter: 100–240 VAC, 50/60 Hz.
Recharging Battery
Blinking bars
1. Battery Charge Indicator
2. Back Button, to navigate backward
3. Touch Wheel, spin to scroll the cursor
4. OK Button, to make a selection
5. Arrow Buttons, for selections and
tip spacing (VOYAGER only)
6. Purge Button, to empty tips
7. Run Key, to start operations
8. Tip Ejector
Turn on:
Press and release the Run Key.
Turn off:
Press and hold the Back Button for 3 seconds.
www.integra-
Fully Charged Battery
~ 2.5 h
Three solid bars
1/7
