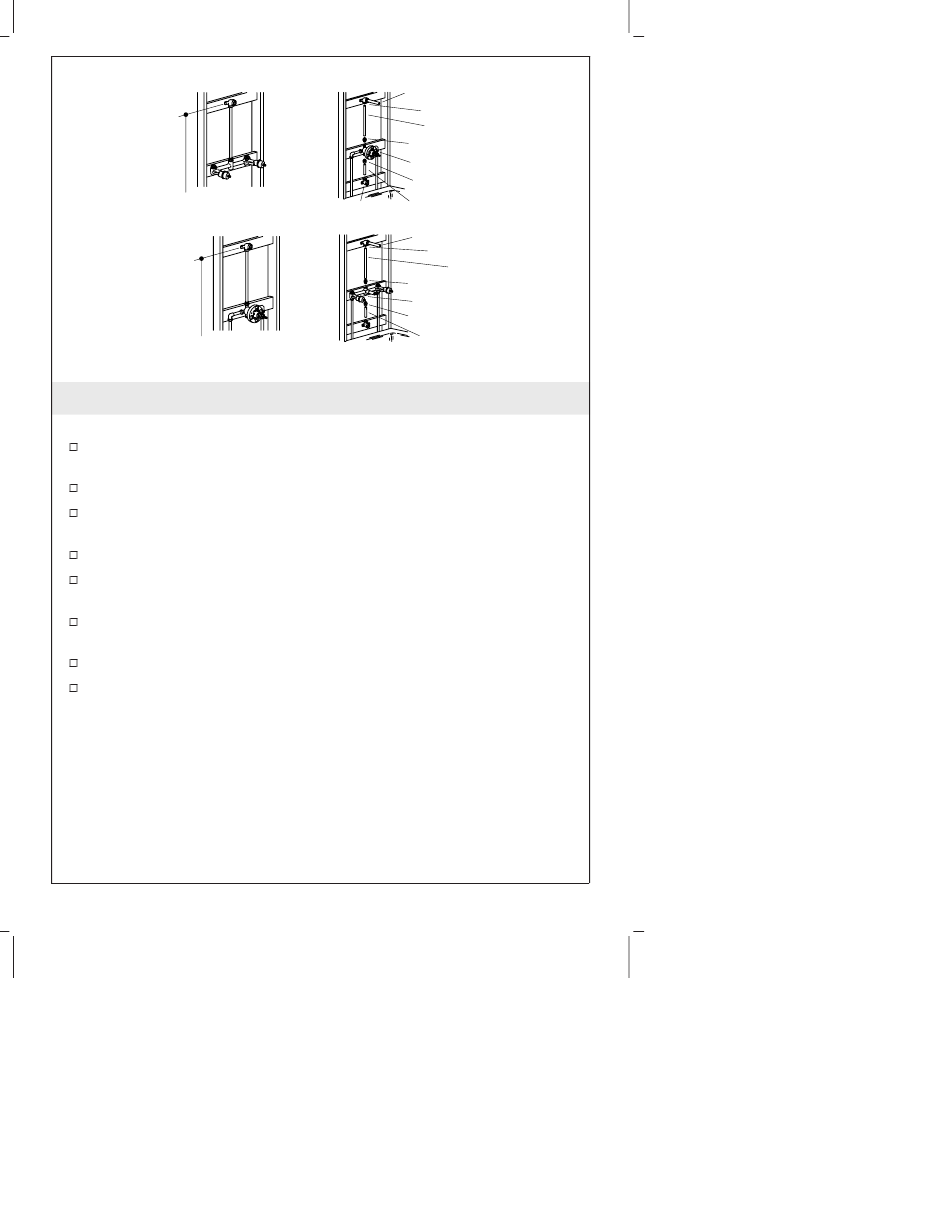

1. Prepare the Site

IMPORTANT! Secure the piping to the framing.
A typical shower ell should be installed roughly 72" to 78" (182.9
cm to 198.1 cm) from the floor.
Install or relocate the water supplies as necessary.
A typical bath and shower installation is plumbed using 1/2"
copper tubing and adapters.
Use thread sealant on all threaded connections.
Temporarily install 1/2" nipples to the bath and shower elbows,
extending at least 2" (5.1 cm) beyond the finished wall.
For shower-only installation, plug the unused spout outlet on the
yoke or valve.
Turn on the water supply and check for leaks.
Complete the finished wall.
Kohler Co.
Temporary Nipple
Shower Ell
1/2" Piping
1/2" Male Adapter
Spout Outlet
1/2" Male Adapter
1/2" Piping
Bath Ell
Temporary Nipple
Shower Ell
1/2" Piping
1/2" Male Adapter
Spout Outlet
1/2" Male Adapter
1/2" Piping
3 113291-2-AB
