END RAIL
Latch Hole
Ramp Hole
WARNING: DO NOT PLACE ANY BODY PARTS BETWEEN RAMP SECTIONS WHEN OPENING OR CLOSING RAMP.
ASSEMBLY INSTRUCTIONS:
6. Remove the end rail from cargo basket. Save end rail and bolts for use if ramp is removed.
7. To attach the ramp, align the holes in ramp hinges with the bottom holes near the end of basket as shown.
8. Install the 3/8 hex bolts and 3/8 lock nuts supplied with ramp and tighten until snug.
NOTE: The ramp hinges and latch arm are located to the inside surface of cargo basket.
9. Attach the latch arm to the cargo basket by installing the 3/8 hex bolt through the 3/8 diameter hole on basket as
shown. Tighten 3/8 lock nut until snug and latch arm swings freely.
Cequent Performance Products
47774 Anchor Court West
Plymouth, MI 48170
Technical Service: (888) 521-0510
1
2 3
Ramp Hinge
Item:
Description:

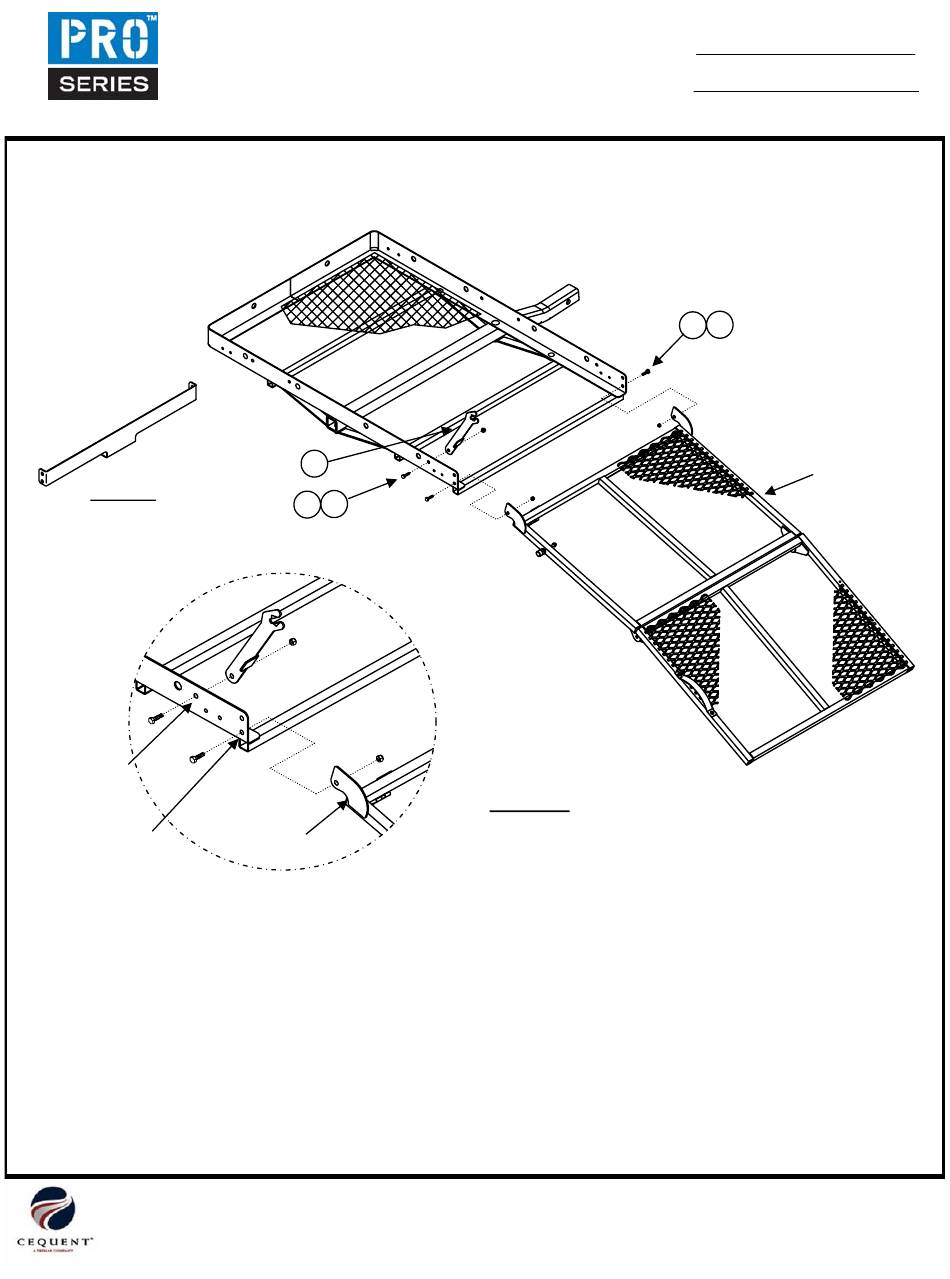

FIGURE 1
