NightStick NSR-9924XL Manual De Instruccion

Instruction Manual

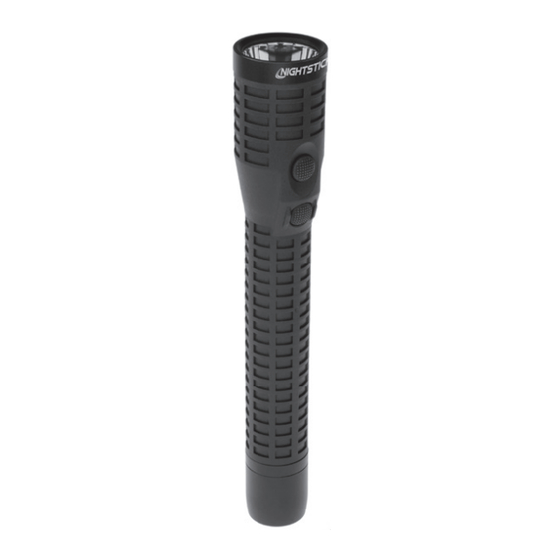

NSR-9924XL
US PATENT 9,713,217
Be sure to charge the 9924XL fully before the fi rst use. A battery is fully charged when
the charger light is green.
WARNINGS
y Lithium-ion batteries must be used and charged properly. Improper use can result in
serious injury, fi re, or death.
y NOT FOR USE IN HAZARDOUS LOCATIONS. Do not use this product in explosive
atmospheres, near fl ammable liquids, or where explosion proof or intrinsically safe lighting
is required.
y DO NOT use this product in the proximity of vehicles or equipment when there is a risk
of fl ammable liquids coming into contact with the fl ashlight.
y Light can become hot while on. To prevent damage DO NOT cover or place next to any
potentially fl ammable materials while in use.
y Do not leave the battery in direct sunlight or use or store the battery inside cars in hot weather.
y Do not expose the battery to water or salt water, or allow the battery to get wet.
y Do not store the battery with metallic objects that may cause a short circuit.
y Immediately discontinue use of the battery if the battery emits an unusual smell, feels
hot, changes color, changes shape or appears abnormal in any way.
y Keep out of the reach of children.
INITIAL USE
Fully charge the 9924XL before the fi rst use, or if the battery is new or has been
unused for several months. The maximum charge time required is approximately 6 hours.
CHARGER INPUT: 12 VDC Max
DAILY USE
y Use only the supplied Nightstick charger, battery and AC or DC adapter. For best
performance, charge the 9924XL when the fl ashlight beam starts to dim.
y Connect the AC power adapter to the charger. The LED indicator will not be illuminated
at this point.
y With the fl ashlight facing forward, snap the 9924XL into the charger until the contacts
snap into place.
y The LED indicator changes to constant red indicating the 9924XL is properly inserted
into the charger and is in fact charging. The LED indicator remains red until the battery is
fully charged. At full charge, the LED indicator turns green.
y The total time to full charge the 9924XL varies depending on the remaining charge in
the battery pack.
y To confi rm a full charge, keep the 9924XL in the charger and turn it on. The LED indicator
will change to red. Turn off the 9924XL. If the 9924XL is fully charged, the LED indicator will
turn green. If not, it remains red until the charge is completed and the LED indicator turns
green. The 9924XL will now be fully charged.
OPERATION
The 9924XL has seven light modes: momentary fl ashlight, full brightness fl ashlight,
medium brightness fl ashlight, low brightness fl ashlight, fl oodlight, dual-light and strobe. The
9924XL has two body switches and a tail-cap switch providing access to all modes.
Momentary Flashlight Mode: Lightly press the top body switch or the tail-cap switch for
momentary operation. Release the switch to turn the light off.
Constant-on: Press the top body switch or the tail-cap switch until it clicks and then
release for constant-on in high-brightness mode. Press and release either switch to turn
the light off.
Select Brightness Level: Press and hold down the top body switch or the tail-cap
switch. The light will cycle from high to medium to low and then back up again at a rate of
approximately one mode per second. The light will continue to cycle up and down through
the various modes as long as the switch is held down. When the desired brightness level is
reached, simply release the switch, and the light will remain in that brightness mode. Press
and release either switch to turn the light off.
Floodlight: Press the bottom body switch until it clicks and then release for fl oodlight
mode. Press and release the bottom body switch again to turn the light off.
Dual-Light: Dual-Light allows the user to turn on both the Flashlight (at any brightness
level) and the Floodlight, at the same time. First select the appropriate brightness level of the
fl ashlight using the directions above. Next press and release the bottom switch to activate
the fl oodlight. Both the Flashlight and the Floodlight are now running. Press and release
both the top/tail-cap and bottom body switches to turn the light off.
Strobe Function: From off or any mode, rapidly double click the top body switch or the
tail-cap switch to activate the strobe function running at full brightness. Press and release
either switch to turn the light off.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
Included in the box - Compris dans la boîte - Incluido en la caja
Strobe Warning: Exposure to strobing lights may cause dizziness, disorientation, and
nausea. A very small percentage of people suffer from photosensitive epilepsy and may
experience seizures or blackouts triggered by strobing lights. For more information from the
EPILEPSY FOUNDATION about photosensitivity and seizures, please visit www.epilepsy.
com. Anyone who has had symptoms linked to this condition should consult a doctor before
using this product.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in workmanship and
materials for the original purchaser's lifetime. The Limited Lifetime Warranty includes the
LEDs, housing and lenses. Rechargeable batteries, chargers, switches, electronics and
included accessories are warranted for a period of two years with proof of purchase. Normal
wear and failures which are caused by accidents, misuse, abuse, faulty installation and
lightning damage are excluded.
We will repair or replace this product should we determine it to be defective. This is the
only warranty, expressed or implied, including any warranty of merchantability or fi tness for
a particular purpose.
For a complete copy of the warranty, go to www.baycoproducts.com/bayco-product-
support/warranties. Retain your receipt for proof of purchase.
Assurez-vous de charger la 9924XL à bloc avant de l'utiliser pour la première fois. La
batterie est chargée à bloc quand le voyant du chargeur est vert.
AVERTISSEMENTS
y Les batteries au lithium-ion doivent être utilisées et rechargées correctement. Une mauvaise
utilisation peut causer des blessures graves, un incendie ou la mort.
y NE PAS UTILISER DANS DES ENDROITS DANGEREUX. Ne pas utiliser ce produit
dans des atmosphères explosibles, à proximité de liquides infl ammables, ou un endroit
antidéfl agrant ou un emplacement dont un éclairage à sécurité intrinsèque est requis.
y NE PAS utiliser ce produit à proximité de véhicules ou équipements quand il y a risque
de liquides infl ammables entrant en contact avec la lampe de poche.
y La lumière peut être chaude lorsqu'elle est allumée. Pour éviter tout dommage NE PAS
couvrir ou placer à proximité de matériaux potentiellement infl ammables pendant qu'elle
est allumée.
y Ne pas laisser la batterie en contact direct avec les rayons de soleil ou utiliser ou
conserver la batterie à l'intérieur des autos lorsqu'il fait chaud.
y Ne pas mettre la batterie dans l'eau ou l'eau salée. La batterie ne doit jamais être mouillée.
y Ne pas conserver la batterie avec des objets métalliques qui peuvent causer un court-circuit.
y Cesser immédiatement d'utiliser la batterie si elle émet une odeur inhabituelle, semble
chaude, change de couleur ou de forme ou paraît anormal.
y Garder hors de la portée des enfants.
UTILISATION INITIALE
Chargez la 9924XL à bloc avant la première utilisation ou si la batterie est neuve ou n'a pas
été utilisée depuis plusieurs mois. La durée maximale de charge requise est d'environ 6 heures.
ENTRÉE CHARGEUR: 12 VDC Max
UTILISATION QUOTIDIENNE
y Utilisez exclusivement le chargeur, la batterie et l'adaptateur c.a ou c.c Nightstick
fournis. Pour de meilleurs résultats, chargez la torche électrique 9924XL quand le faisceau
lumineux commence à s'affaiblir.
y Connectez l'adaptateur de courant c.a. au chargeur. Le voyant LED ne sera alors pas allumé.
INS-NSR-9924XL-21
Mode d'emploi
NSR-9924XL
