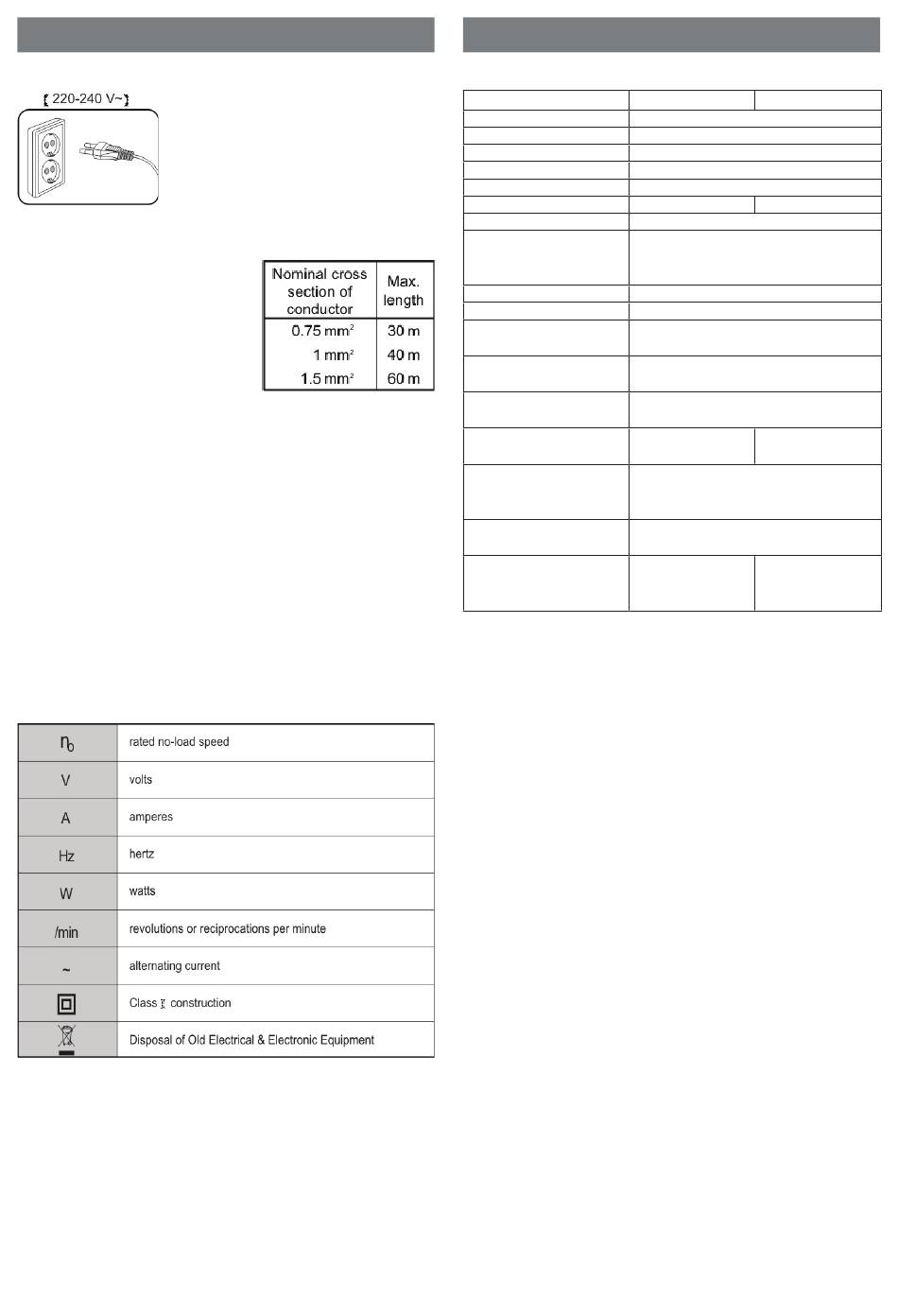

Check before Use

1. Connection to Power Supply
2. Extension Cord
Use an extension cord if the
distance to the power source
requires its use. Extension cord
must be of appropriate thickness
and length for the supply of
electric current. Too thin or too
long cord will cause voltage to
drop reducing the motor power.
Use it as short as possible.
If the cord is damaged, have it repaired or replaced at A/S
center immediately.
3. Maintenance and Checking of Work Area
Work area must be checked using CAUTIONs in this manual
to ensure it provides appropriate environment.
4. Power Supply Check
Make sure that the power supply complies the requirements
described in the name plate on the Electric Hammer Drill.
5. Switch Status Check
if the power plug is connected when the power switch is
in ON position, sudden rotation of the moving parts of the
Electric Hammer Drill may cause accident.
Check if the switch lever returns to its original position when
it is pushed and pulled.
An explanation of any symbols or pictograms marked on
the tool relevant to safe use;
 - GB
Technical Data and List of Contents
1. Technical Data
parameter
Rated Voltage, V~
Rated frequency, Hz
Rated Input , W
No-load speed(rpm), /min
No-load speed(bpm), /min
Impact Energy, J
Tool holder system
Max. drilling Capacity, mm
- Drill bit
- Core bit
Protection Class
Ability to adjust speed
Changing the direction of tool
rotation
Chiselling mode (without tool
rotation)
Preset angular position of
the tool
Weight according EPTA-
Procedure 01/2003, kg
Typical A-weighted emission
sound pressure level(LPA),
dB(A)
Typical A-weighted sound
power level(LWA) dB(A)
Triaxial vibration value : ham-
mer drilling(ah)
(vibration vector sum), m/сІ
2. List of Contents
Plastic Box
Grease tube
Stopper
Instruction Manual
Description of Functions and Applications
1. Description of Functions
The overall look of the machine shown in Fig.1.
1 – RETAINER SDS-max®
 - SELECTOR
 - CHANGE LEVER
 - TRIGGER SWITCH
5 - HANDLE
6 - CONTROLLER KNOB
7 - END COVER
8 - HOUSING
9 - SIDE HANDLE
10 - STOPPER
2. Applications
Drilling in concrete
Chipping, chiseling, demolishing in concrete
Digging for anchor bolt
Crushing, grooving, squaring, cutting, hardening in concrete
[Examples of application]
Heating & cooling work, piping work, wiring work, sanitary
facilities work, installation of machinery, water supply &
drainage works, interior decoration work, installation of seats,
harbor facilities work and other engineering facilities work.
Operation
1. Mounting the Side handle and Stopper(Fig. 2)
For operating convenience , the side handle can be installed
in front position. Always operate the tool with the side handle
properly assembled to maximize control of the power tool.
Mounting the side handle
1. Loosen the side handle by turning the handle
RHF40/1100VERT RHF40/1100VERTM
0
50
1100
5-500
150-870
-9,5 -10
SDS-Мах
0
105
II
yes
no
yes
yes
6, 6,
9
10
1,0 8,5
