π
H-4989
96

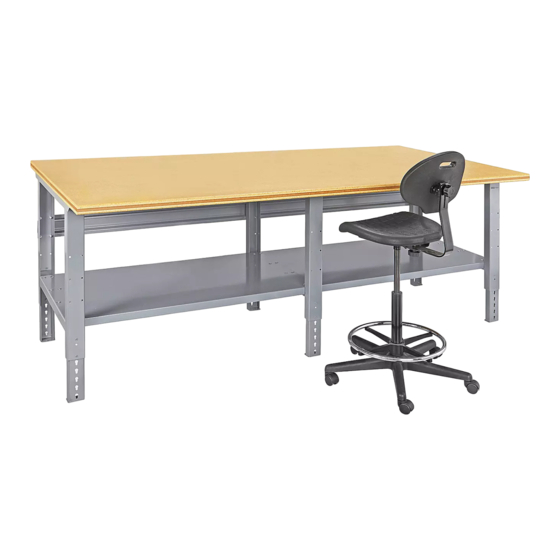

48" JUMBO
x
PACKING TABLE
TOOLS NEEDED
Phillips Head
Screwdriver
10 mm Wrench
WARNING! These instructions are for Jumbo Packing Tables only. Instructions for Deluxe Workstations are
included with H-5777 Uprights for Deluxe Workstation.
LEGS AND FRAME ASSEMBLY
1.
Insert adjustable feet (1) into legs (2) and slide into place
at desired height.
NOTE: If desired, insert locking tabs through legs
and adjustable feet to lock feet into place.
2. Place legs (2) in upright position. Legs should be placed
approximately 45" apart.
3. Attach stringer (3) to table legs using center six holes in
back legs. Fasten with 12 bolts, lock washers
and nuts, but do not fully tighten.
4. Place lower shelves (4) across braces of legs. Attach
lower shelves using 16 bolts and nuts. Now, fully fasten
hardware placed in step 3.
5. To attach tabletop (5) to frame assembly, place tabletop
on a smooth, non-marring surface with top side facing
down.
NOTE: If you have a Maple Jumbo Packing
Table, see Maple Tabletop Field Joint Assembly
instructions on page 2 before continuing to step 6.
6. Rotate the assembled frame upside down and line
up with the pre-drilled holes on the bottom side of the
tabletop.
PAGE 1 OF 6
1-800-295-5510
uline.com
7/16" Wrench
Flat Head
3/8" Wrench
Screwdriver
ASSEMBLY
#
1
2
3
4
5
1/4" x 20 x 5/8" Bolt x 28
Lock Washer x 12
4
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
DESCRIPTION
Adjustable Foot
Leg
Stringer
Lower Shelf
Tabletop
Hardware Kit
1/4" x 20 Nut x 28
#14 x 3/4" Wood Screw x 24
Locking Tab x 6
5
3
2
1
QTY
6
3
1
2
1
0820 IH-4989
