Craftmade Triumph Manual Del Usuario página 8

3

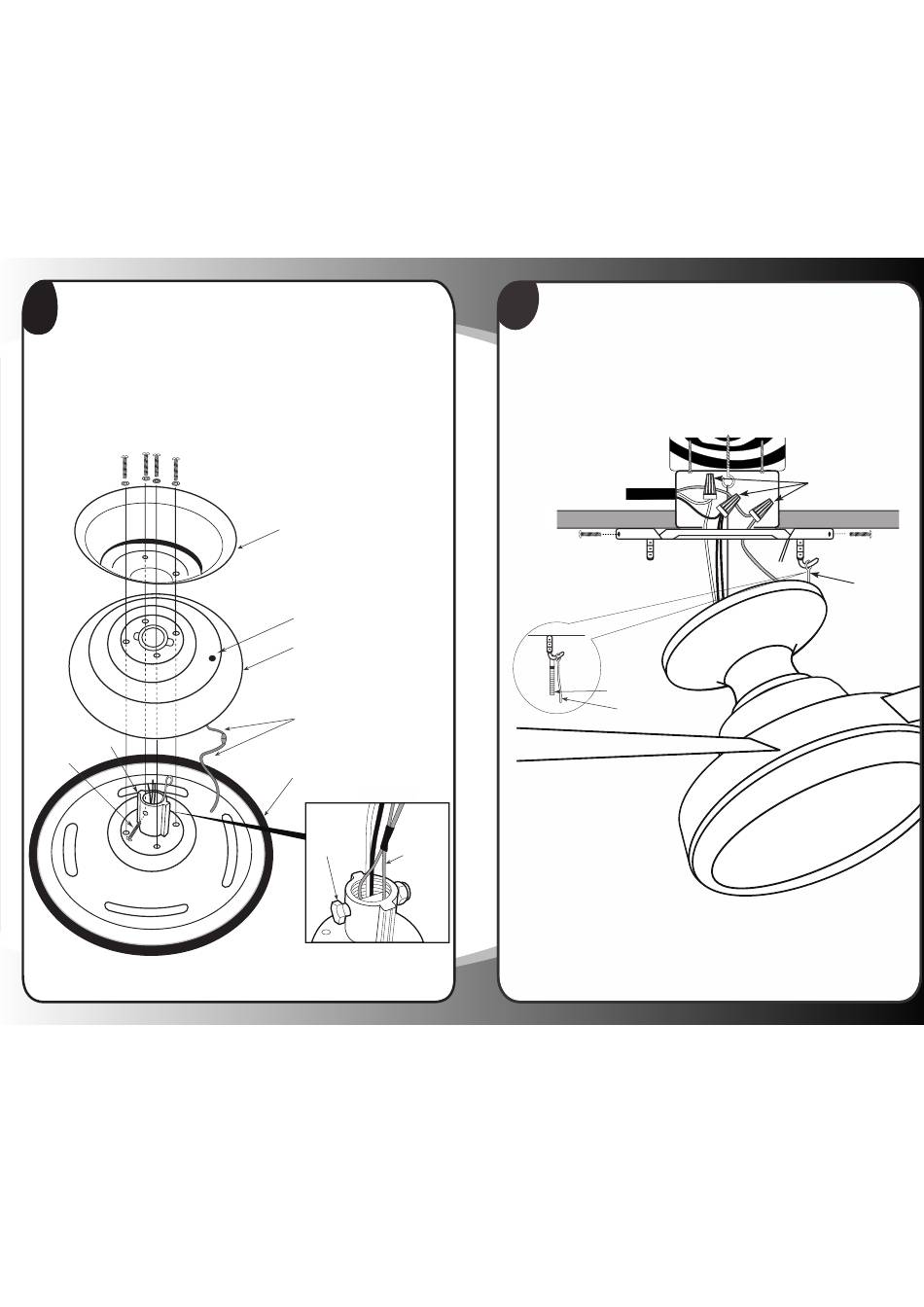

Step 3 - Flushmount Installation
Secure the Hanging Wire by looping it through the Safety
Bolt (S7)as shown in Figure 1and tightening it with the Safety
nut. Connect Antenna Wires on Top Motor Housing and Fan
Motor housing. Place Top Motor Housing (#4) on motor
housing. Attach canopy (#3) to the motor housing by placing
screws into holes in canopy. Tighten screws firmly.
Flange
Safety Bolt
(S7)
All manuals and user guides at all-guides.com
Canopy (3)
Remote Antenna
Top Motor Housing (4)
Antenna Wires
Fan Motor
Housing (2)
Figure 1
Safety
Bolt
Hanging
Wire
4
Step 4 - Attaching Hanging Cable
For added security, attach Hanging Cable from fan unit to "Mounting
Plate "J" Hook. Secure by looping Zip Tie (S9) through the Hanging
Cable and "J" Hook. Tighten Zip Tie securely. Thread 2 of the Canopy
Screws into the mounting plate. These will be used to attach the Canopy
(Shown in Step 8)
Zip Tie (S9)
Hanging Cable
NOTE: "J Hook" installation
is a Canadian requirement.
Wire Connectors
Hanging Cable
