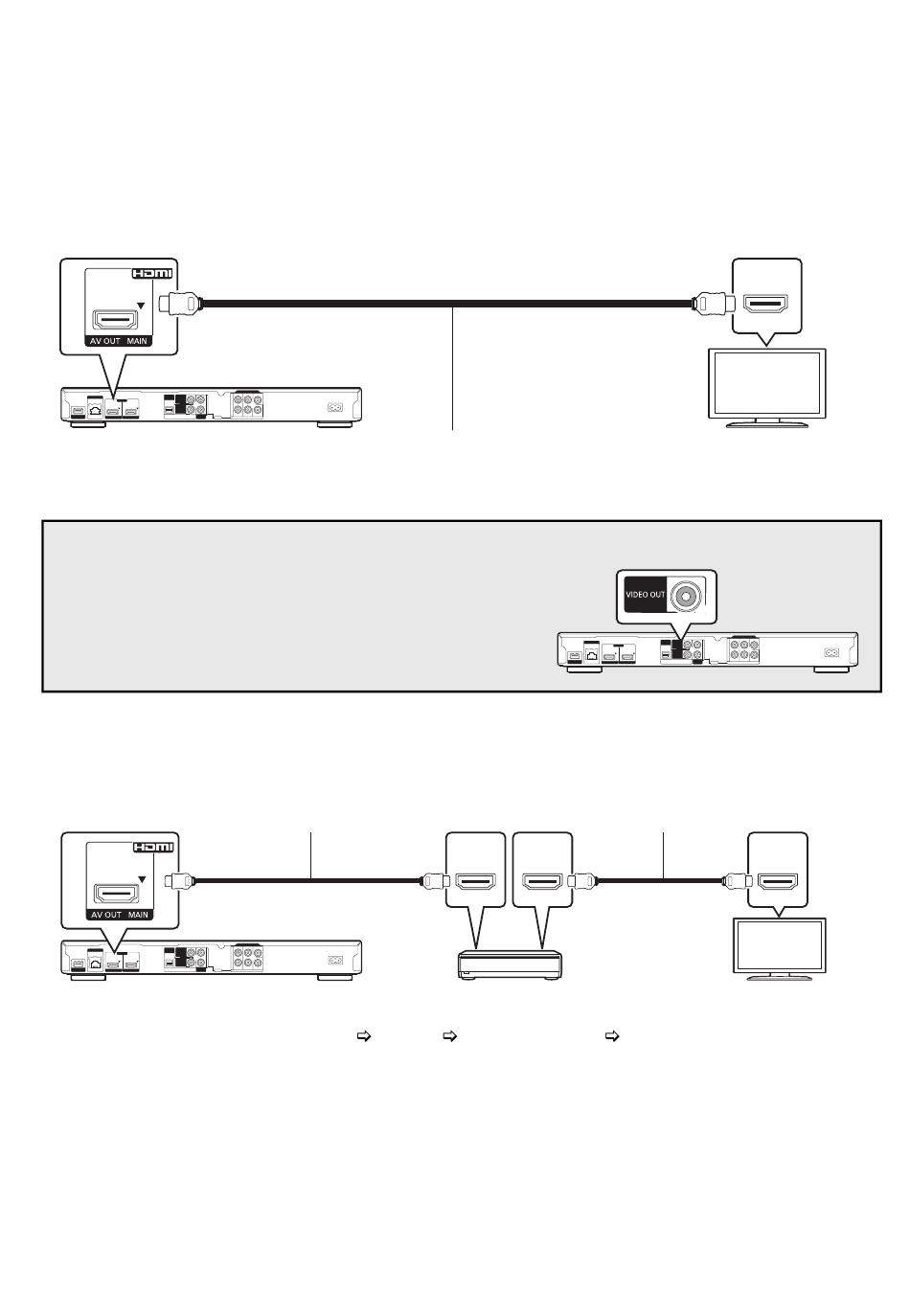

STEP 1 : Connecting to a TV

Connections and settings
≥ Before making any connections, we recommend that you temporarily disconnect all the units from AC
power.
≥ Do not connect video signals through a video recorder. Due to copy guard protection the picture may
not be displayed properly.
≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.
It is recommended that you use Panasonic's HDMI cable. When outputting 1080p signal, please use
HDMI cables 5.0 meters or less.
≥ Use HDMI AV OUT MAIN terminal.
About the VIDEO OUT terminal
For copyright protection purposes, images of the following
types of content cannot be output from the VIDEO OUT
terminal.
– Commercially available BD videos
– Certain DLNA content

STEP 2 : Connecting to an amplifier/receiver

≥ Set "Digital Audio Output". ([HOME]
≥ When connecting to a non-3D compatible amplifier/receiver, connect this unit to a TV via HDMI AV
OUT, then connect the TV and the amplifier/receiver. Please note, however, that the audio can only
be up to 5.1ch.
≥ When using the TV or amplifier/receiver that does not have the indication of "(ARC)"
(non-ARC-compatible) on the HDMI terminal, in order to enjoy TV's sound by amplifier/receiver it is
also required to connect the amplifier/receiver and TV using an optical digital cable.
8
(8) VQT3V94
HDMI cable
HDMI cable
"Setup"
HDMI cable
HDMI OUT
HDMI IN
(ARC)
Amplifier/receiver
"Player Settings"
HDMI IN
HDMI IN
(ARC)
"Sound")
