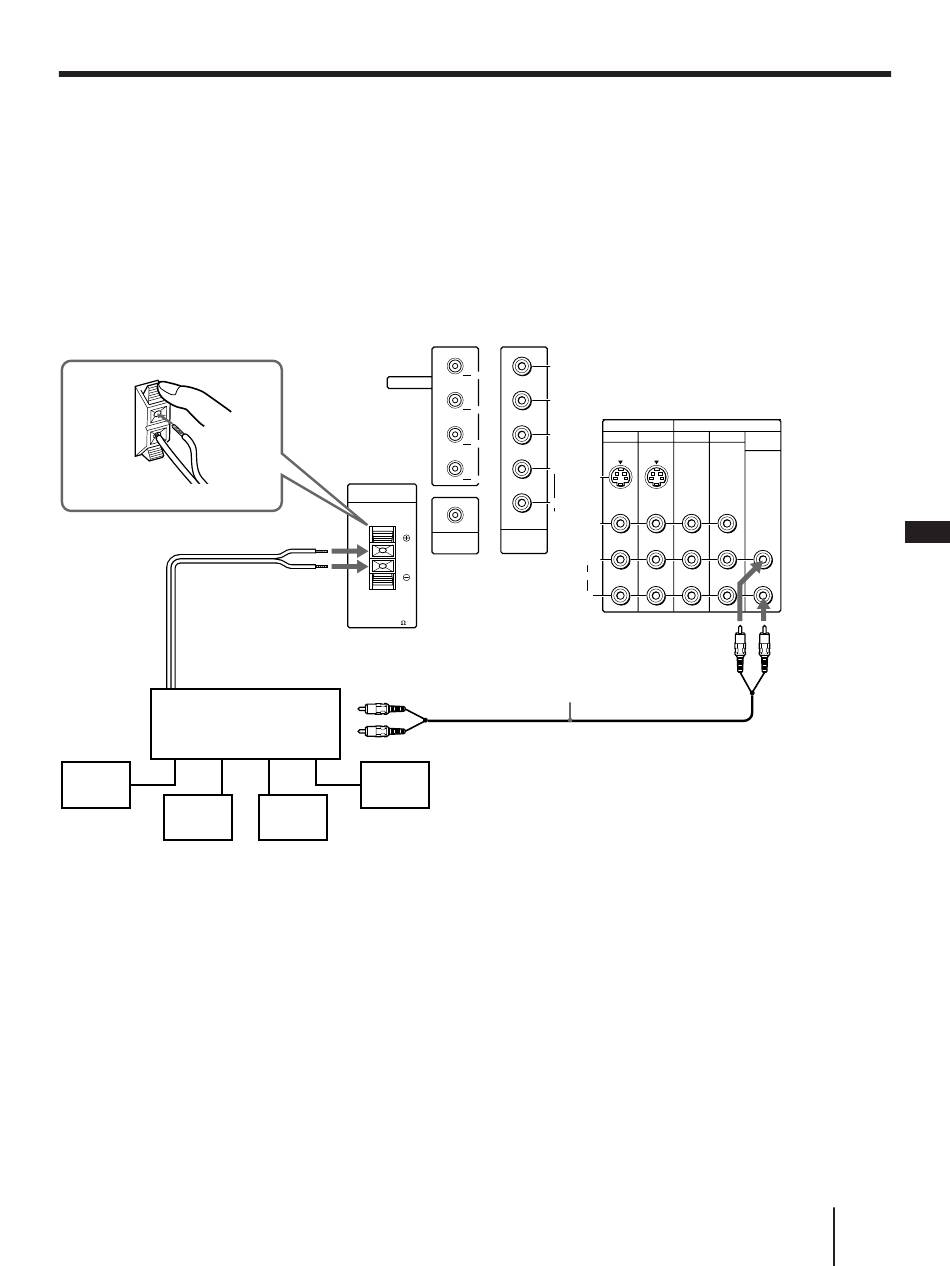

Connecting an amplifier with Dolby Pro Logic decoder
If you use an amplifier with Dolby Pro Logic decoder
instead of the projection TV'audio system, you can still
use the projection TV's center speaker. See "Setting the
speaker switch (SPEAKER)" on page 35.
* Manufactured under license from Dolby Laboratories
Licensing Corporation. Additionally licensed under Canadian
patent number 1,037,877. "Dolby", the double-D symbol a
and "Pro Logic" are trademarks of Dolby Laboratories
Licensing Corporation.
CENTER SPEAKER IN '
CENTER SPEAKER IN '
Amplifier with Dolby*
Pro Logic decoder
Rear
speaker
(L)
Front
speaker
(L)
S-LINK
CENTER SPEKER
IN
CONTROL S
OUT
30W(NOM)
60W(MAX)16
Rear
speaker
(R)
Front
speaker
(R)
Rear of projection TV
Y
VIDEO1
C
B
VIDEO3
IN
C
R
VIDEO 1 VIDEO 3
VIDEO4
L
S VIDEO
TV OUT
R
AUDIO
VIDEO
VIDEO 4
IN
L
(MONO)
AUDIO
R
AUDIO OUT-L
(VAR/FIX) (white)
RK-74A (not supplied)
OUT
TV MONITOR AUDIO
(VAR/FIX)
AUDIO OUT-R
(VAR/FIX) (red)
15
