CONNECTION

Important: Respect the color code for all the system elements.
ES
EN
FR
IT
PT
DE
Important: An Airzone Cloud Webserver and an Airzone Blueface thermostat are required.
- AZX6WEBSCLOUDC, AZX6WSCLOUDDINC and AZX6WSC5GER v.3.3.2 or later, or AZX6CCPWSCC.
- AZX6WEBSCLOUDR and AZX6WSCLOUDDINR incompatible.
- AZRA6BLUEFACEC v.5.3.0 or later.

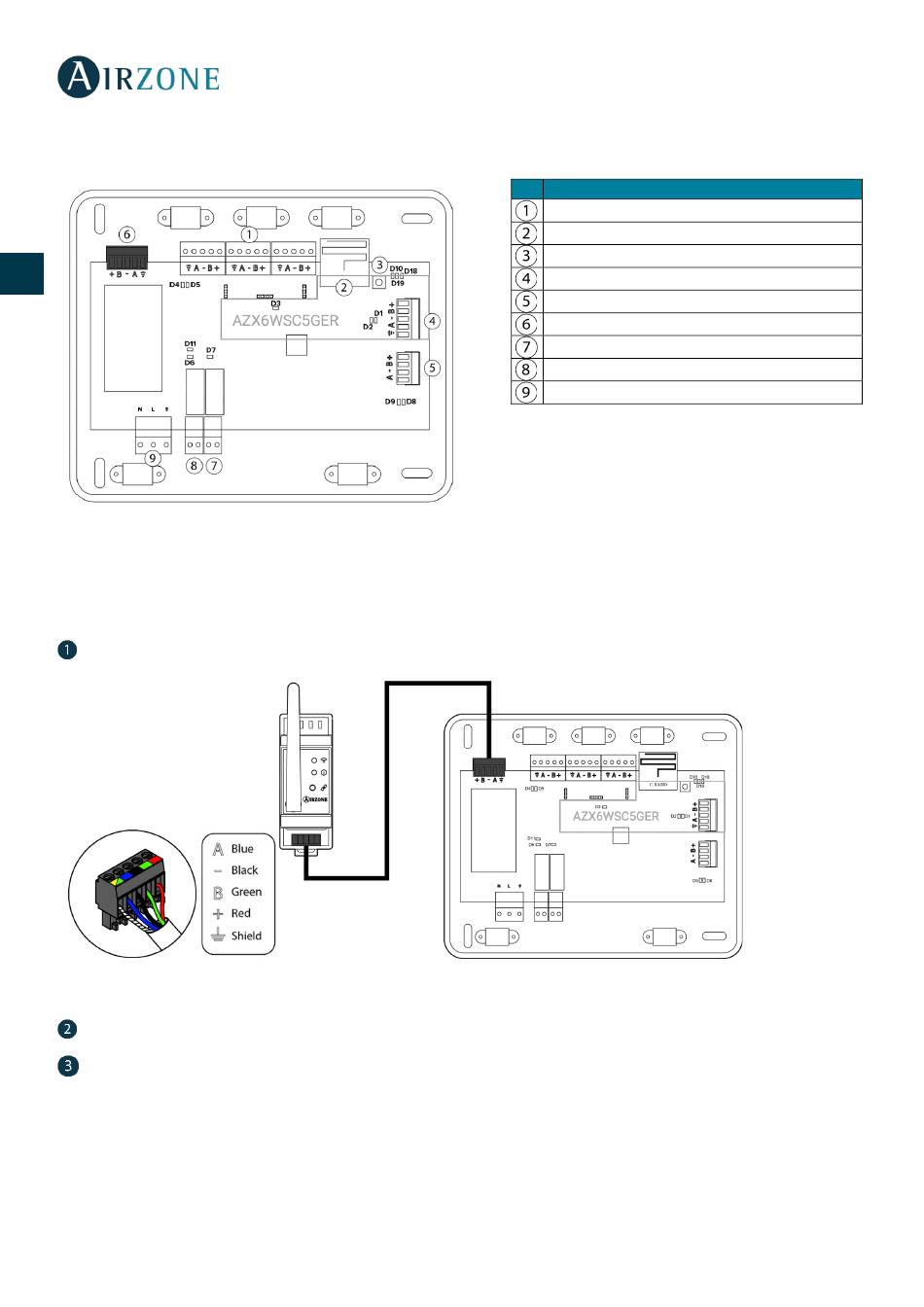

Connect the AZX6CM1VALR module to the VALR Module bus of the RadianT main control board.
You can find the instructions on how to connect and configure Airzone Cloud Webserver on their data sheets.
Connect the Airzone connection bus between the RadianT main control board and the thermostats. Use (2x0,5 + 2x0,22
mm Airzone wire. In wireless elements, please check that the battery is inserted.
2
Note: To connect more than 4 Blueface, it is necessary an external power supply unit (AZX6POWER). These values can be altered
depending on the separation distance among them.
22
Nº Description
Airzone connection bus
Wireless module
SW1
Webserver Airzone Cloud
AC unit bus
VALR Module bus
DHW control
Boiler control
Power supply
