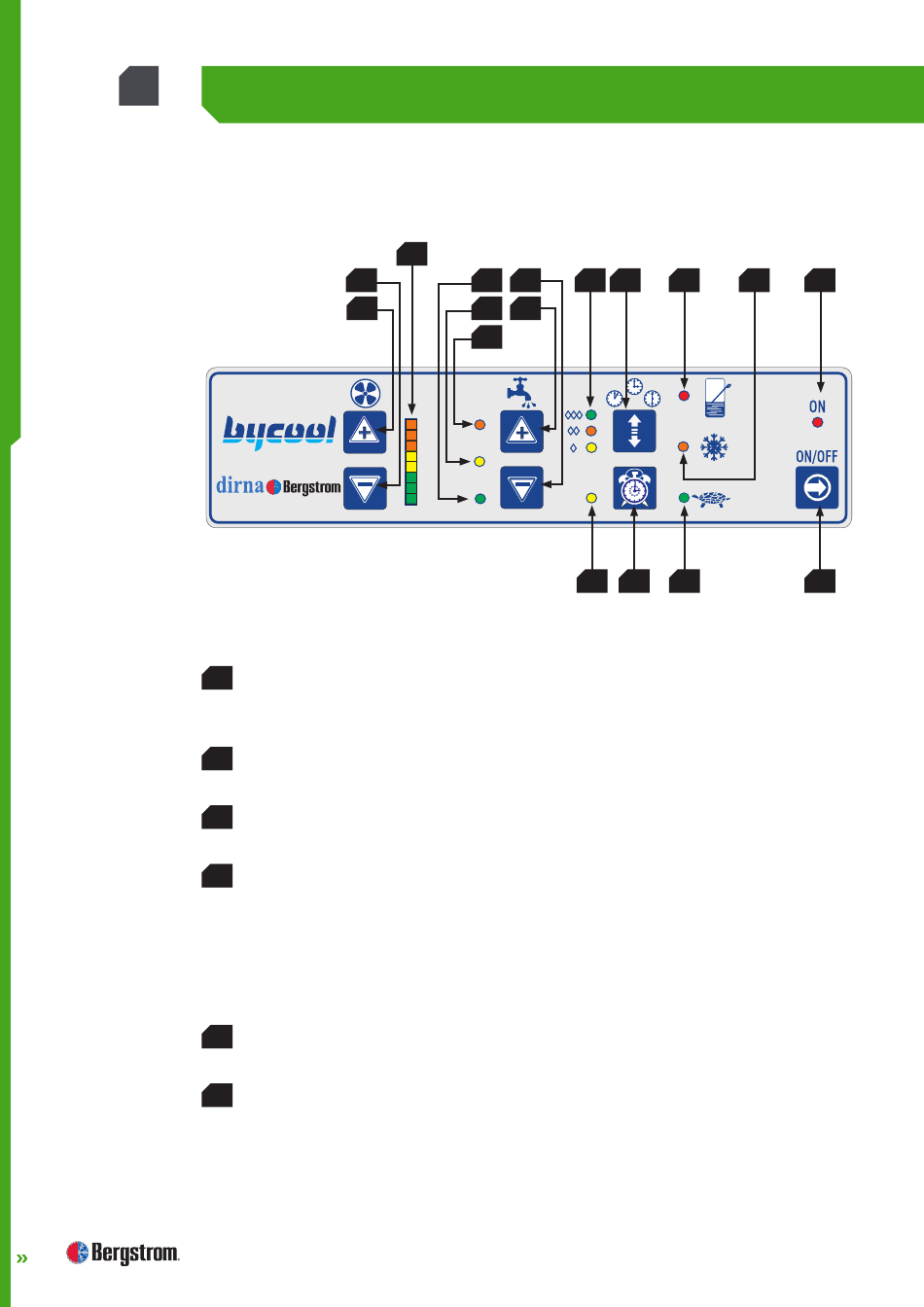

CONTROL PANEL OPERATION

14
TU ESPACIO DE VIDA CONFORTABLE
USER'S HANDBOOK MANUAL DE USUARIO
11b
11a
1
Unit's On/Off button. Pressing once turns the unit on and leaves it ready for operation.
Pressing again turns the unit off..
2
LED 2 remains lit when the unit is on. This LED stays off when the unit is turned off.
3
Not used in this system as it is always connected to the vehicle's water tank.
4
Button to adjust the timer (programmed operating time for the unit)
a. Pressing once enables the timer to run the unit for 1 hour.
b. Pressing a second time enables the timer to run the unit for 3 hours.
c. Pressing a third time enables the timer to run the unit for 6 hours.
d. Pressing a fourth time disables the timer, without selecting any operating time for the
unit.
5
LED 5 is always on when the unit is active.
6
One of these LEDs remains on when operating time is chosen using the timer, according to
the time selected (1h, 3h or 6h).
12
10a 9b
10b 9a
10c
6 4 3 5
8 7 13
2
1
