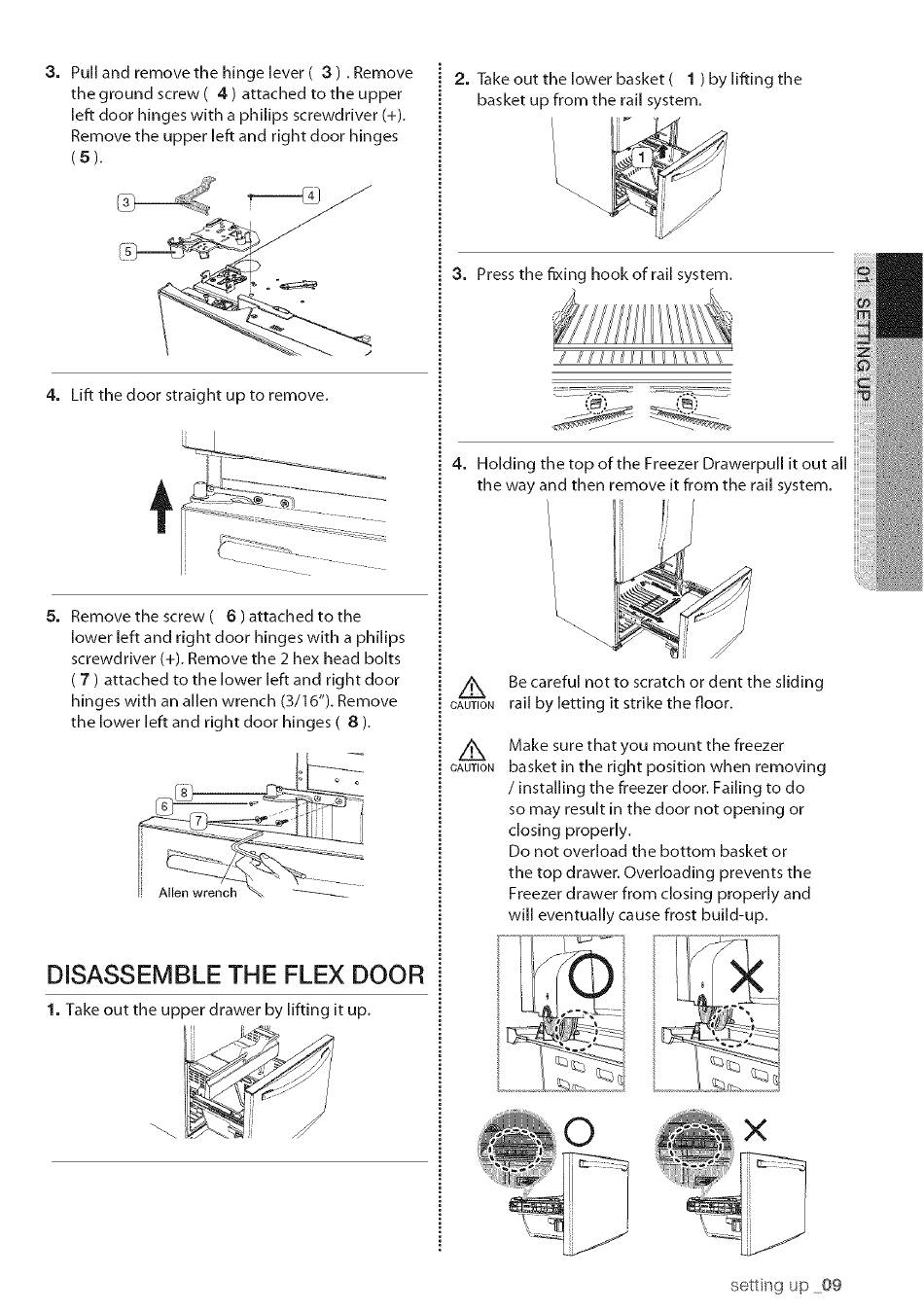

3.Pull and remove the hinge lever ( 3).Remove
the ground screw ( 4)attached tothe upper
left d oor hinges with aphilips screwdriver (+).
Remove the upper left a nd right door hinges
(5).
4.Lift t he door straight uptoremove.
5.Remove the
screw ( 6 ) attached to the
lower left and right door hinges with a philips
screwdriver (+). Remove the 2 hex head bolts
( 7 ) attached to the lower left and right door
hinges with an allen wrench (3/16"). Remove
the lower left and right door hinges ( 8 ).
o[ ..........
DISASSEMBLE THE FLEX DOOR
1. Take out the upper drawer by lifting it up.
[l '
2. Take out the lower basket ( 1 ) by lifting the
basket up from the rail system.
3. Press the fixing hook of rail system.
....... ,,:;4_ . ......
4. Holding the top of the Freezer Drawerpull it out all
the way and then remove it from the rail system.
zA
CAUTION
CAUTION
Be careful not to scratch or dent the sliding
rail by letting it strike the floor.
Make sure that you mount the freezer
basket in the right position when removing
/ installing the freezer door. Failing to do
so may result in the door not opening or
closing properly.
Do not overload the bottom basket or
the top drawer. Overloading prevents the
Freezer drawer from closing properly and
will eventually cause frost build-up.
