Operating Instructions
3.4

Type overview

DIASTAR Six
PN6 (single-sided)
3.5

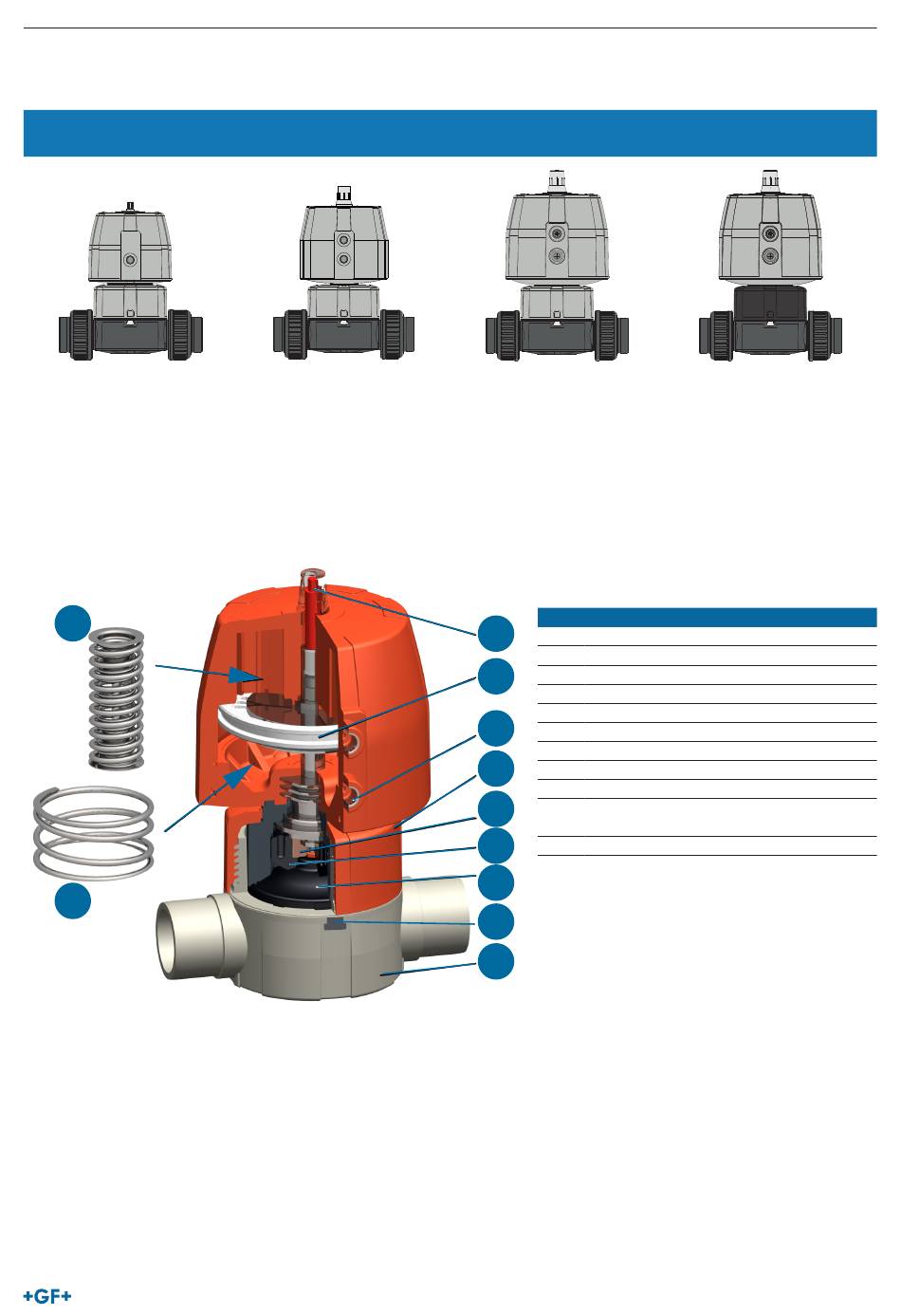

Design and function

3.5.1 Construction
The design of the valve is identical for the four valve body types, except for the connections.
10
11
DA functional scheme without spring (pos. 10 or 11).
DIASTAR Ten
PN10 (single-sided)
Pneumatic diaphragm valve DIASTAR
DIASTAR TenPlus
PN10 (both sides)
Item Name
1
1 Optical position indicator
2 Piston
2
3 Connections for control medium
4 Housing nut
5 Diaphragm holder
3
6 Thrust piece
7 Diaphragm
4
8 Friction lock
9 Valve body
5
10 Pre-loaded spring components for FC
mode
6
11 Spring for FO mode
7
8
9
DIASTAR Sixteen
PN16 (single-sided)
11
