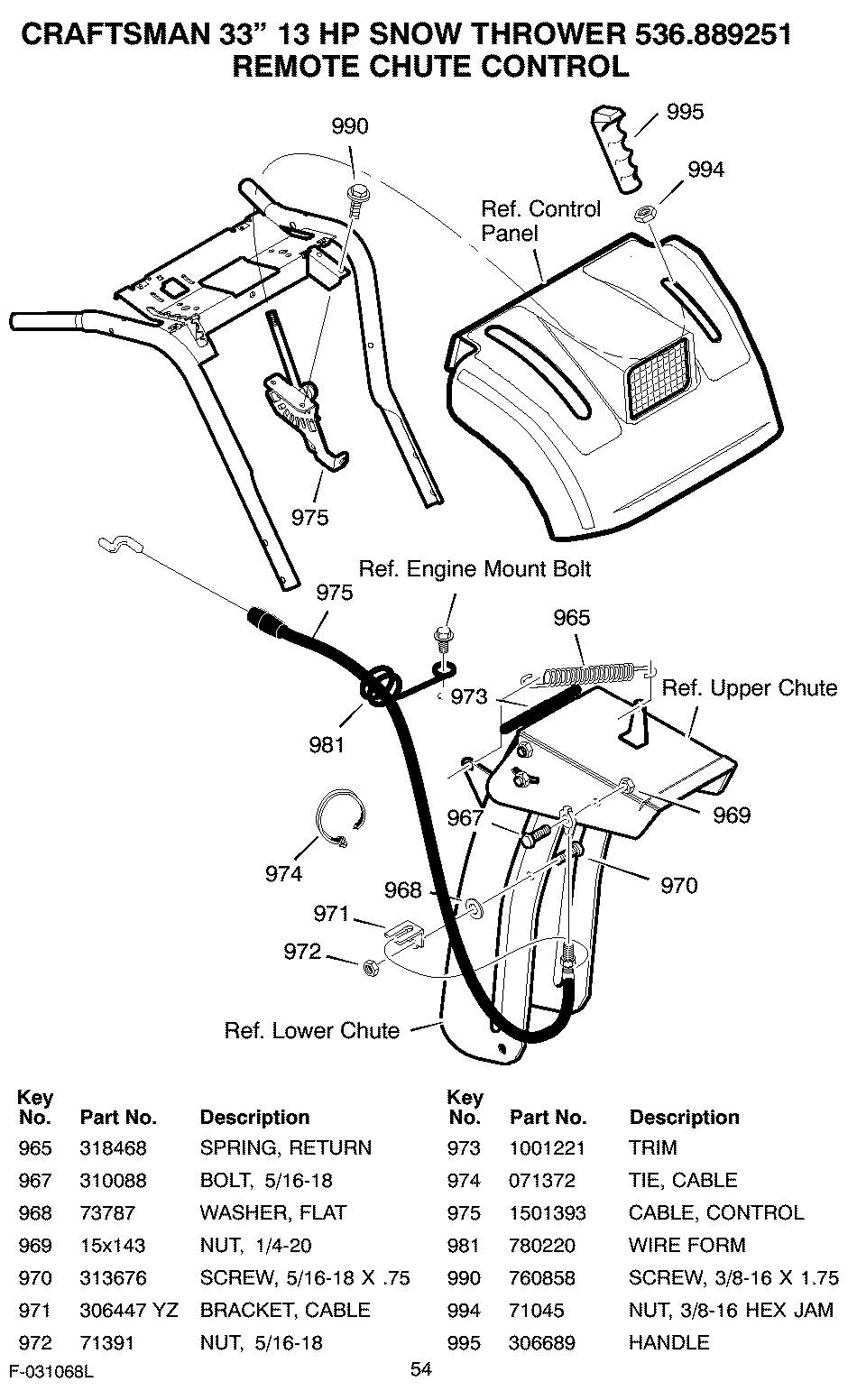

CRAFTSMAN 33" 13 HP SNOW THROWER 536.889251
REMOTE CHUTE CONTROL
990
I
_ / 965
\
Ref. Upper Chute
981
974
968
969
/
Ref. Lower Chute
Key
No. Part No. Description
965 318468 SPRING, RETURN
967 310088 BOLT, 5/16-18
968 73787 WASHER, FLAT
969 15x143 NUT, 1/4-20
970 313676 SCREW, 5/16-18 X .75
971 306447 YZ BRACKET, CABLE
972 71391 NUT, 5/16-18
F-O31068L 54
Key
No. Part No.
973 1001221
974 071372
975 1501393
981 780220
990 760858
994 71045
995 306689
Description
TRIM
TIE, CABLE
CABLE, CONTROL
WIRE FORM
SCREW, 3/8-16 X 1.75
NUT, 3/8-16 HEX JAM
HANDLE
