Chapter 3 Basic Operation

Stopping monitoring the target

To stop monitoring the target, click

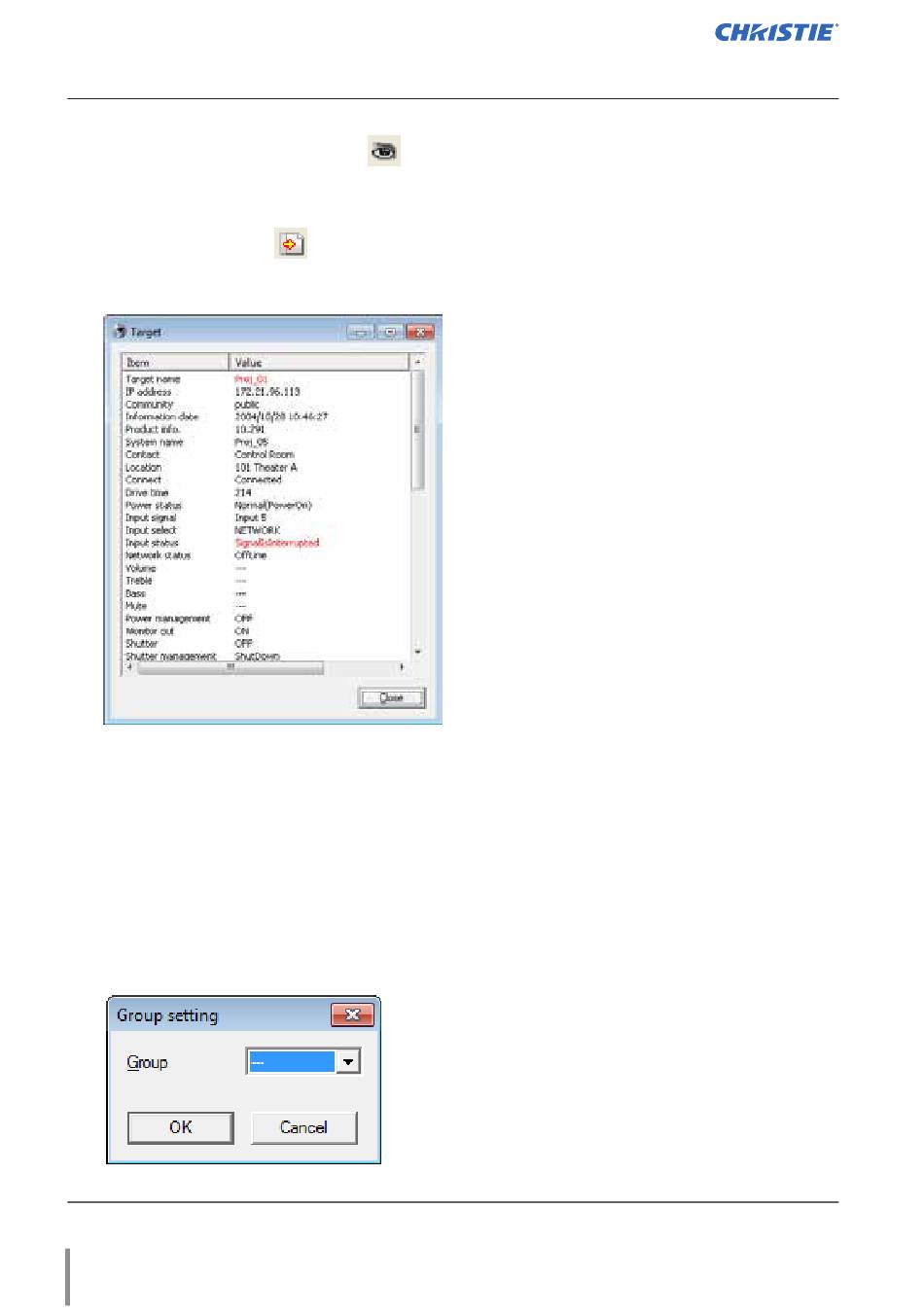

Displaying all the status information of the target

Select a target and click
plays all the available status information of the target.
0 The above procedure can be performed by selecting Target display from Display menu.

Setting the target group

The target group can be set up by the procedure below. After targets have been grouped,
you can set commands for multiple targets in the same group by batch processing.
1
Select targets which you want to set from the status list. Select Group setting from
Target menu, the dialog box will appear as in the figure below.
2
Select a group, and then click OK.
Projectors with different network passwords cannot be set to the same group. It is necessary
0
for the projectors in the same group to have the same password.
14
again on the tool bar.
on the tool bar. The following status window appears and dis-
0 The target name and item which have an
abnormality or connection error happen-
ing are indicated with red.
0 When PJ Network Manager cannot
acquire the value of column information,
"---" is displayed.
"---" will not set the group.
0
PJ Network Manager for Windows
020-000640-01 Rev.1 (11-2013)
