JMA MULTICODE SINGLE Manual De Instrucciones página 66

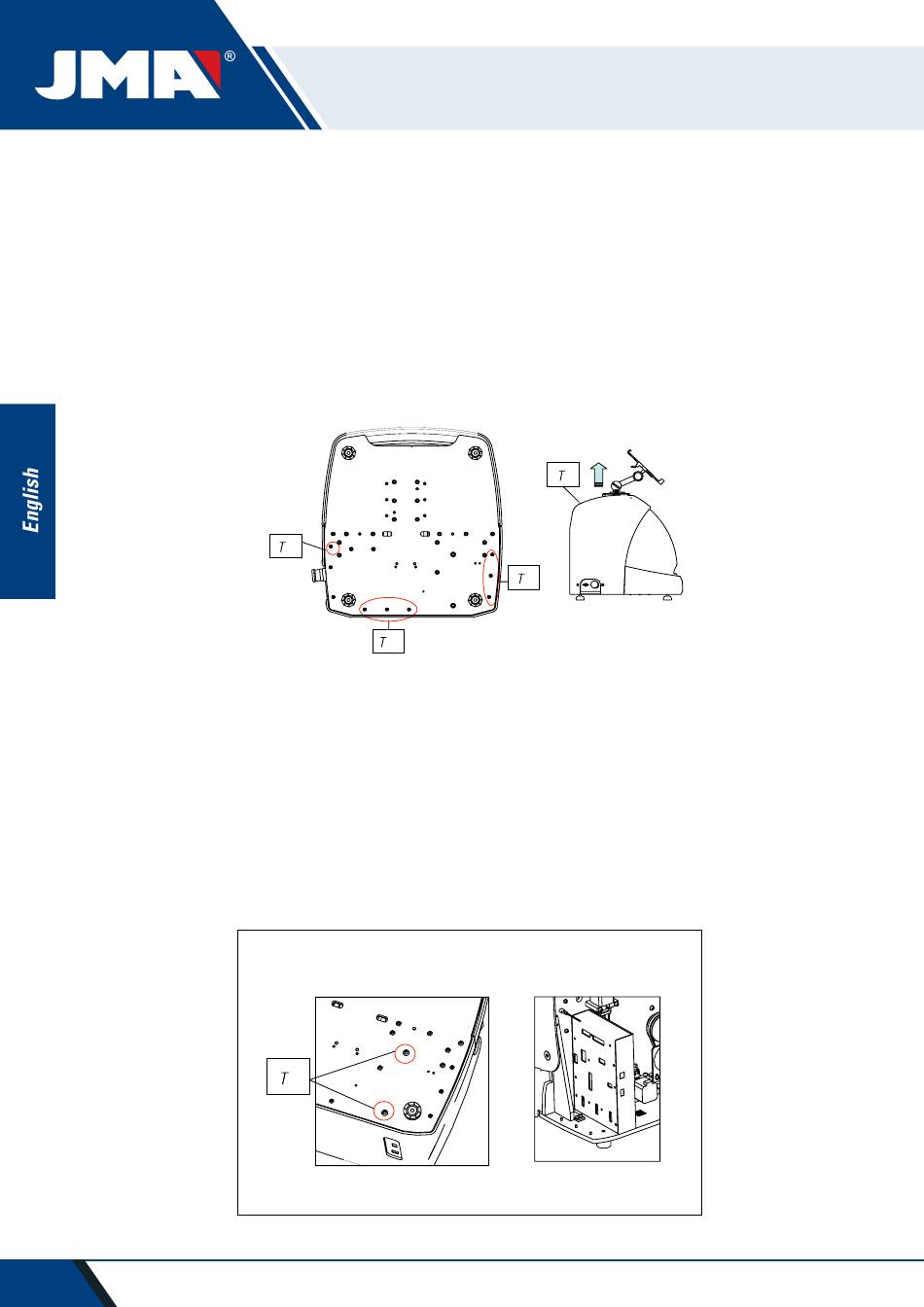

7.1 ACCESS TO THE REAR PART
To have access to the rear part, you should do the following:
1) Switch the machine off using the emergency stop and disconnect the cable from the power supply.
2) Remove the Tablet from the support.
3) Release 7 screws (T4) with a 3mm Allen key (Fig. 21)
Note: Do not touch the zinc-plated screws
4) Remove the rear guard (T5) moving it upwards.
7.2 CONTROL REPLACEMENT
To replace the control, follow these steps:
1) Remover the rear guard. (See 7)
2) Remove the cables connected to the control.
3) Release the two screws (T6) with a 5mm Allen key (Fig. 22)
4) Replace the control.
5) Re-assemble all the components again.
68
4
4
FIG. 21
6
FIG. 22
5
4
