6. Power switch for the power outlet
7. USB outlets
8. Connection board
9. Mower control unit
10. Relay
11. Power outlet, 12 V

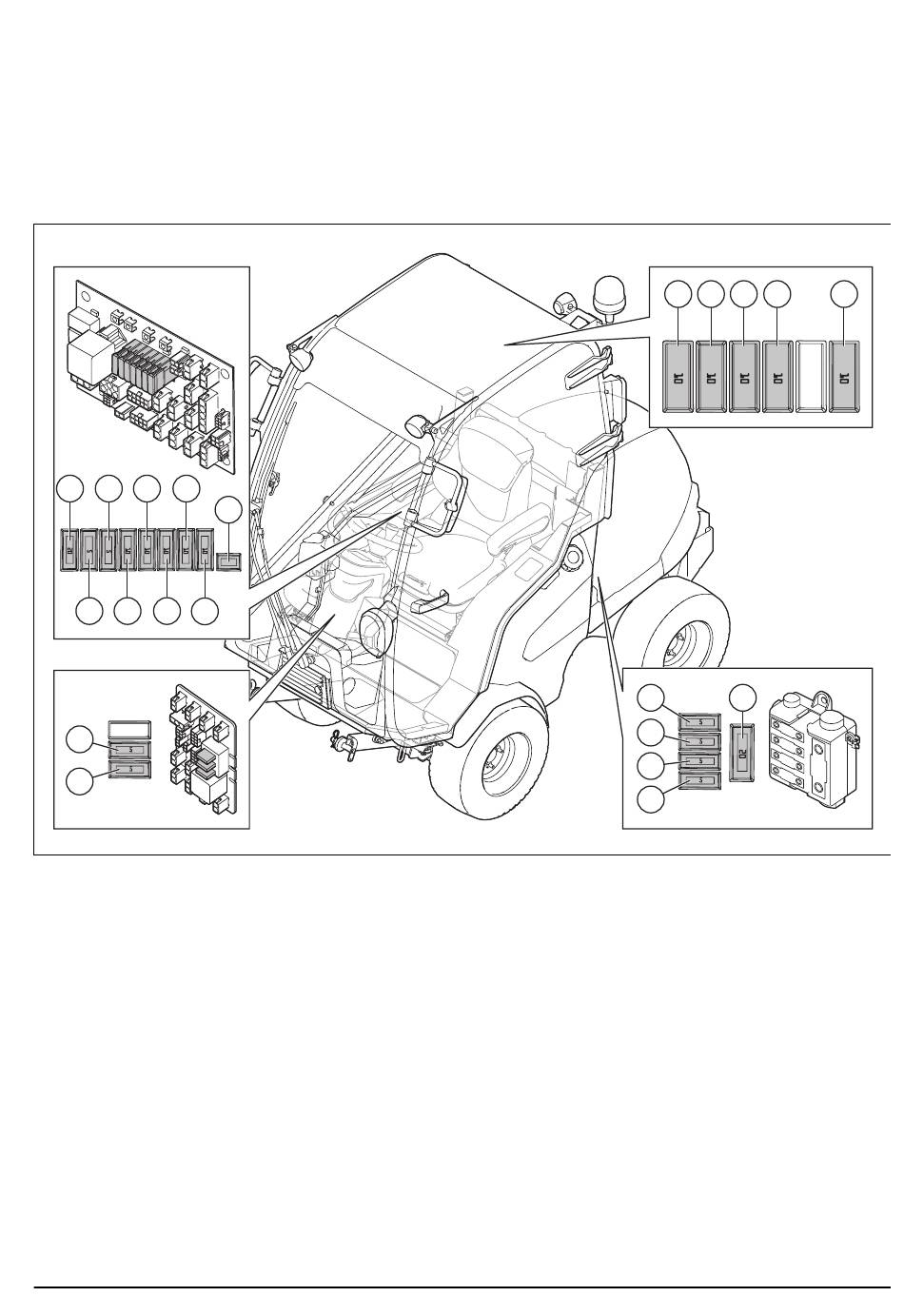

Fuse overview

1 3 5 7
2 4 6 9
21
20
1. +12 V IRIS power, 20 A
2. Diesel display power, 5 A
3. Ignition power, 5 A
4. J14 + 12 V, beacon light, 10 A
5. J16 + 12 V, Extra switch, Extra out, Hydraulic power,
10 A
6. Parking brake / Seat, 10 A
7. Light power, 10 A
8. Cabin power, auto fuse
9. USB, 12 V outlet, 12 V switch power, 10 A
10. Windshield wiper, 10 A (P 525DX Cabin)
11. Cabin heat, 10 A (P 525DX Cabin)
12. Rear work light, 10 A (P 525DX Cabin)
13. Low beam light, 10 A (P 525DX Cabin)
14. Front work light, 10 A (P 525DX Cabin)
15. High power safety fuse, 150 A
16. Empty
1593 - 002 - 22.12.2020
8
12. Relay
13. Main switch
14. Battery
15. Fuse box
16. AUX power outlet, 12 V (accessory for P 520DX)
17. Headlights
16
17
18
19
17. Cabin power fuse, 50 A (P 525DX, P 525DX Cabin)
18. Power engine/Glow plug fuse, 50 A
19. Fuse for connection board power supply, 50 A
20. Buzzer, 5 A
21. Parking light, 5 A

To replace a fuse

A broken fuse is identified by a burned fuse wire.
The list of fuses can be found in the fuse overview, refer
Fuse overview on page 39 .
to
1. Find the broken fuse:
10 11 12 13 14
15
39
