Read and understand the entire contents of this manual, the power source manual, and the wire
feeder manual used with this unit. Special emphasis should be given to the safety material
throughout all manuals, before installation, operation, or maintenance of this equipment. This unit
and these instructions are for use only by persons trained and experienced in the safe operation of
welding equipment. Do not allow untrained persons to install, operate, or maintain this unit.
Contact your distributor if you do not fully understand these instructions.
Be sure this information reaches the operator.
You can get extra copies through your supplier.
Multimaster 260 Mig Pulse Option
P/N-0558002604
F15- 693
April, 2009
Publicidad
Tabla de contenido
Manuales relacionados para ESAB Multimaster 260
Resumen de contenidos para ESAB Multimaster 260
- Página 1 F15- 693 April, 2009 Multimaster 260 Mig Pulse Option P/N-0558002604 Read and understand the entire contents of this manual, the power source manual, and the wire feeder manual used with this unit. Special emphasis should be given to the safety material throughout all manuals, before installation, operation, or maintenance of this equipment.
-
Página 2: Tabla De Contenido
TABLE OF CONTENTS SECTION TITLE PAGE PARAGRAPH SAFETY ............................3 DESCRIPTION ..........................9 INSTALLATION ..........................10 OPERATION ..........................11 MAINTENANCE ..........................16 PARTS ............................18... -
Página 3: Safety
SAFETY PRECAUTIONS WARNING: hese Safety Precautions are for 5. Do not use equipment beyond its ratings. For example, your protection. They summarize precaution- overloaded welding cable can overheat and create a fire ary information from the references listed in hazard. Additional Safety Information section. -
Página 4: Meaning Of Symbols
EQUIPMENT MAINTENANCE -- Faulty or FUMES AND GASES -- Fumes and improperly maintained equipment can gases, can cause discomfort or harm, cause injury or death. Therefore: particularly in confined spaces. Do not breathe fumes and gases. Shield- 1. Always have qualified personnel perform the installa- ing gases can cause asphyxiation. -
Página 5: Precaucion De Seguridad
PRECAUCION DE SEGURIDAD No use el equipo fuera de su rango de operación. Por ejemplo, el ADVERTENCIA: Estas Precauciones de Seguridad calor causado por cable sobrecarga en los cables de soldar son para su protección. Ellas hacen resumen de pueden ocasionar un fuego. información proveniente de las referencias listadas 6. -
Página 6: Mantenimiento
HUMO Y GASES -- El humo y los gases, MANTENIMIENTO DEL EQUIPO -- Equipo pueden causar malestar o daño, defectuoso o mal mantenido puede causar particularmente espacios daño o muerte. Por lo tanto: ventilación. No inhale el humo o gases. El 1. -
Página 7: Précautions De Sécurité
PRÉCAUTIONS DE SÉCURITÉ a. Éloigner suffisamment tous les matériaux combustibles AVERTISSEMENT: Ces règles de sécurité ont pour objet d’ du secteur où l’on exécute des soudures ou des assurer votre protection. Veillez à lire et à observer les coupes à l’arc, à moins de les recouvrir complètement précautions énoncées ci-dessous avant de monter l’... -
Página 8: Entretien De L'équipement-
à empêcher la forma- 52529 “Precautions and Safe Practices for Arc Weld- tion de poches d’hydrogène, lesquelles présentent un ing, Cutting and Gouging” publié par ESAB. Nous danger d’explosion; ce ventilateur ne fonctionne que conseillons également de consulter les publications si l’interrupteur correspondant du panneau avant se... -
Página 9: Description

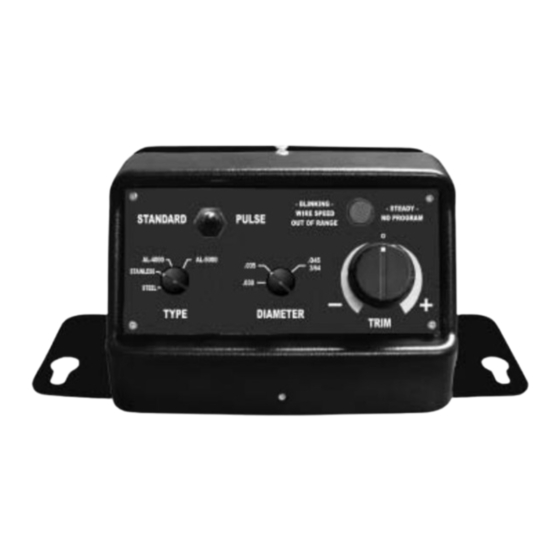

— read them and their specific text references carefully. 1.1 DESCRIPTION The MultiMaster 260 Pulse option is designed to provide simple to use, high quality, synergic pulsed Mig welding. Synergic pulsed Mig welding means that pulse parameters (pulse height, pulse width, background current and pulse frequency) are automatically adjusted by the MultiMaster Pulse Pendant as you change wire feed speed. -
Página 10: Installation
10 inch control cable with a 9 pin male connector. 1. Loosen the two sheet metal screws in the top of the MultiMaster 260 cabinet. 2. Remove the plastic plug located in the top panel of the MultiMaster 260. -
Página 11: Operation
OPERATION Standard CV Operation The Multimaster 260 Pulse option provides for both standard welding and pulsed Mig welding. When the STANDARD/PULSE switch is in the STANDARD position the wire feeder and power source are ready for standard non-pulsed CV Mig welding. - Página 12 Actual pulse parameters can vary with the equipment set-up, welding application and shielding gas being used. The wire feed speed ranges shown in the tables are the same as programmed into the Multimaster 260 Pulse program. Attempting to weld outside of the suggested speed ranges will result in a "blinking"...
- Página 13 SECTION 3 OPERATION TABLE 3-1 - MultiMaster 260 Pulse Material Type, Diameter and Recommended Shielding Gases Material Wire Shielding Gas Type Diameter (In.) (AWS Designation) Ar - 5% CO2 (SG-AC-5) Ar - 8% CO2 (SG-AC-8) Carbon .030, .035, Ar - 10% CO2 (SG-AC-10) Steel .045...
- Página 14 SECTION 3 OPERATION TABLE 3-2 - MultiMaster 260 Carbon Steel Pulse Parameters .030 Steel .035 Steel Pulse Pulse Pulse Pulse WFS Range Pulse Peak Pulse Width WFS Range Pulse Peak Pulse Width Background Frequency Background Frequency 1.69 1.43 1.72 1.49 1.75...
- Página 15 SECTION 3 OPERATION TABLE 3-4 - 260 4000 Aluminum Pulse Parameters MultiMaster .030 4043 AI .035 4043 AI Pulse Pulse Pulse Pulse WFS Range Pulse Peak Pulse Width WFS Range Pulse Peak Pulse Width Background Frequency Background Frequency 2.05 2.32 2.11 2.41 2.17...
-
Página 16: Maintenance
SECTION 4 MAINTENANCE... - Página 17 SECTION 4 MAINTENANCE...
-
Página 18: Parts
5.2 ORDERING To assure proper operation, it is recommended that only genuine ESAB parts and products be used with this equipment. The use of non- ESAB parts may void your warranty. Replacement parts may be ordered from your distributor. Be sure to indicate any special shipping instructions when ordering replacement parts. - Página 19 SECTION 5 PARTS 4, 5 MultiMaster 260 Mig Pulse Option Item Qty. Description Symbol Part 32360 PANEL CONTROL MM260 PULSE BOX SCREEN PRINTED 0558001818 KNOB 01.37 951032 LAMP LED RED 12V LED1 951474 SWITCH SEAL BLACK 0558002892 SWITCH 0558002603 BEZEL THERMOFORMED MM260 PULSE BOX 0558001595 KNOB RIBBED BODY 0.13 HOLES...
