User Manual

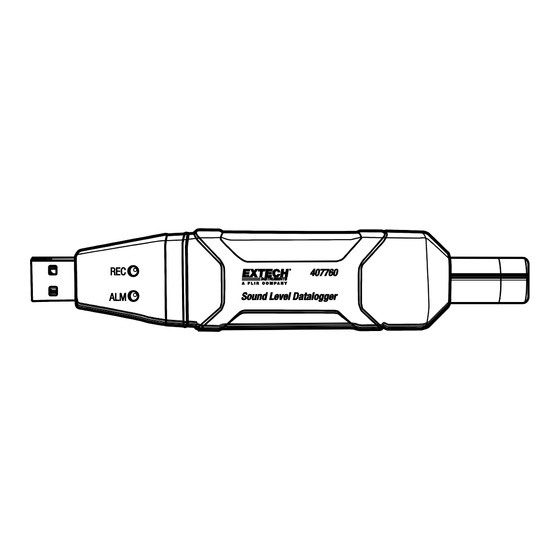

Sound Level Meter USB Datalogger - Model 407760
Introduction
Congratulations on your purchase of the 407760 Sound Level Meter Datalogger. This device measures and stores approx. 129,920 readings. Using
TM
the supplied Windows
software, the datalogger can be configured for datalogging rate, high/low alarm limits, frequency weighting, response
time, start-mode, and other parameters. The software is also used to download the stored data to a PC. Sound Level data can then be graphed,
printed and exported to other applications. The data logger is supplied with a long-life lithium battery. This meter is shipped fully tested and
calibrated and, with proper use, will provide years of reliable service. Please visit our website (www.extech.com) to check for the latest version of
this User Guide, Product Updates, Software updates, and Customer Support.
Operation
To operate the datalogger, the supplied Windows
PC's USB port. Instructions for installing the software are provided on the label of the supplied CD-ROM. The datalogger is configured through
the supplied software. Instructions for using the software and the datalogger are provided within the software program by way of the software
HELP Utility.
Battery Replacement
When the battery is low (yellow LED blinking), replace the battery as soon as possible.
The Datalogger retains its stored readings even when the battery is discharged or when the battery is replaced; the data logging process will
however be stopped and cannot be re-started until the battery has been replaced and the logged data has been downloaded to PC.
Use only one (1) 3.6V lithium battery (1/2 'AA'). Before replacing the battery, disconnect the datalogger from the PC.
NOTE: Leaving the datalogger plugged into the USB port for longer than necessary will shorten the battery life.
Replace battery as shown in diagrams. Observe battery polarity when installing.
TM
software must first be installed and running and the datalogger must be connected to the
Copyright © 2013-2017 FLIR Systems, Inc.
All rights reserved including the right of reproduction in whole or in part in any form
ISO-9001 Certified
www.extech.com
1
407760-mul-MUL_V2.3 2/17
