Chevrolet Caprice/Impala 1994-1996; Chevrolet Cavalier 1982-1990/Cadillac Cimarron 1982-1988; Pontiac Sunbird - Metra Electronics INST-4544 Instrucciones De Uso Y De Instalacion

Chevrolet Caprice/Impala
SS 1994-1996

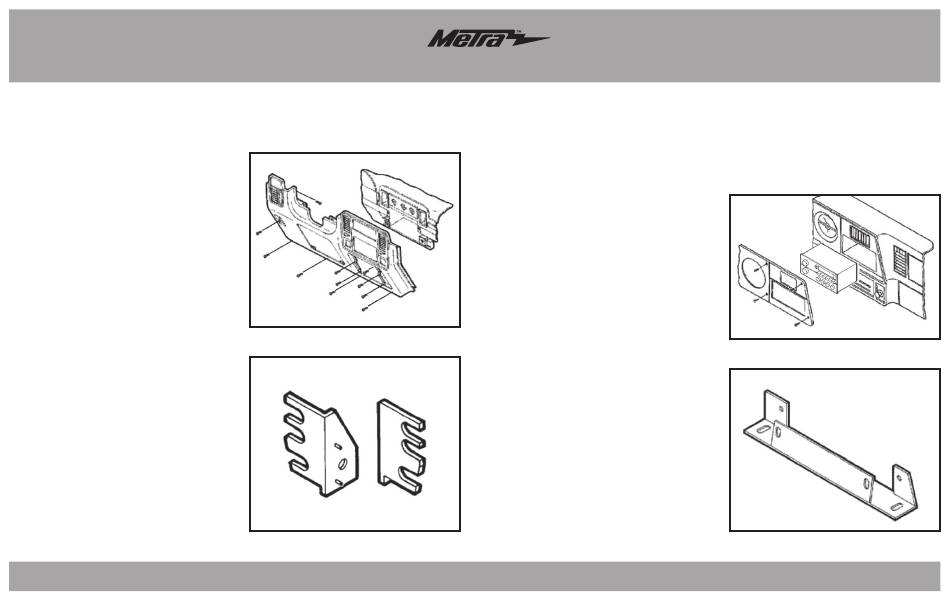

1. Remove (5) hex-head screws from
the ashtray cavity. (Figure A)
2. Remove (4) hex-head screws from
the base of the dash trim bezel.
(Figure A)
3. Unsnap the fuse box cover
and remove (1) hex-head
screw exposed.
4. Remove (2) hex-head screws
above the instrument cluster.
(Figure A)
5. Place the gear selector in
"D1 ". Pull out on the cluster
trim and remove.
6. Remove (1) hex-head screw
exposed on the left edge of the
dash trim bezel.
7. Unclip the dash trim bezel
(including the radio trim bezel)
and remove.
8. Locate Bracket Set #10. (Figure B)
Continue to kit assembly
Dash Disassembly 99-4544
(Figure A)
(Figure B)
Chevrolet Cavalier 1982-1990,
Cadillac Cimarron 1982-1988,

Pontiac Sunbird

1. Remove (6) star-drive screws from
the dash trim bezel and remove
the bezel. (Figure A)
2. Remove (2) screws from
the factory radio and disconnect
the wiring.
3. Cut and remove all mounting tabs
on Bracket #4 EXCEPT tabs "A".
(Figure B)
Note: Identify mounting tabs by
the stamped letter on the back of
each tab.
Continue to kit assembly
13
with J-2000 panel style factory radio
1982-1988
(Figure A)
"A"
(Figure B)
"A"
