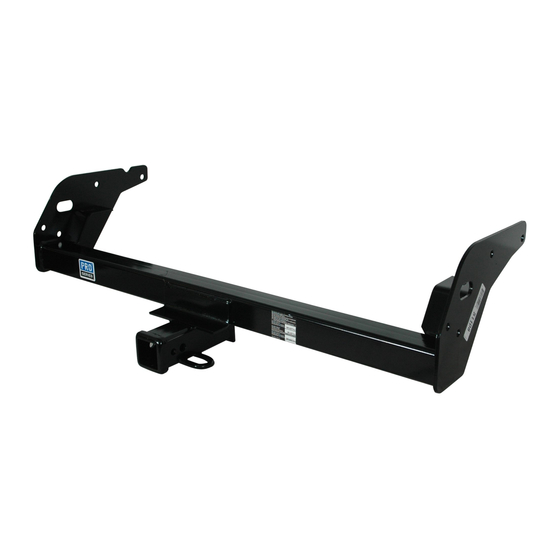

Hitch Shown In Proper Position
Equipment Required:
Fastener Kit: 51108N
Wrenches: 18mm, 19mm, ¾, 7/8
Drill Bits: None
Existing Weldnut
576
5678
1
Qty. (2)
Hex Bolt ½-13 x 1.50 GR5
2
Qty. (6)
Spacer Block ¼ x 1-1/2 x 2
3
Qty. (2)
Conical Toothed Washer ½"
4
Qty. (2)
Hex Nut ½-13
1.
Disconnect the license plate light wiring connection from bumper.
2.
Remove the two bolts mounting bumper to bumper brackets each side. Remove bumper from vehicle.
3.
Remove bumper brackets from frame rails, two bolts each side.
4.
Position receiver on frame and install ½" bolt and block through rearmost hole in frame rail into angle bracket as shown above.
5.
Reinstall bumper brackets over receiver side bracket placing tab through hole provided in side bracket.
6.
Reinstall bumper, placing blocks between bumper mounts and bumper brackets. Using existing fasteners removed in Step 2,
adjust bumper and reconnect license plate wiring connection.
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
z
2009 Cequent Performance Products
Installation Instructions
Toyota Tacoma
Tighten all M12 x 1.25 CL8.8 fasteners with torque wrench to 68 Lb.-Ft. (92 N*M)
Tighten all ½-13 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
Do Not Exceed Lower of Towing Vehicle
Manufacturer's Rating or
Hitch type
Weight Distributing
Weight Carrying
Ball Mount
Wiring Access Location: PU1, PU2
Existing Bolt
5
Qty. (4)
Hex Bolt M12 x 1.25 x 35mm CL8.8
6
Qty. (4)
Flat Washer (Hardened) - ½"
7
Qty. (4)
Lock Washer – ½"
8
Qty. (4)
Hex Nut – M12 x 1.25
Sheet 1 of 3
51108N
Part Numbers:
51108
Max Gross
Max Tongue
Trailer WT (LB)
WT (LB)
5500 (2497 Kg.)
550 (250 Kg.)
5000 (2270 Kg.)
500 (227 Kg.)
1234
Bumper Bracket
Tab
7-24-09
Form: F205 Rev A 5-6-05
Rev. A
