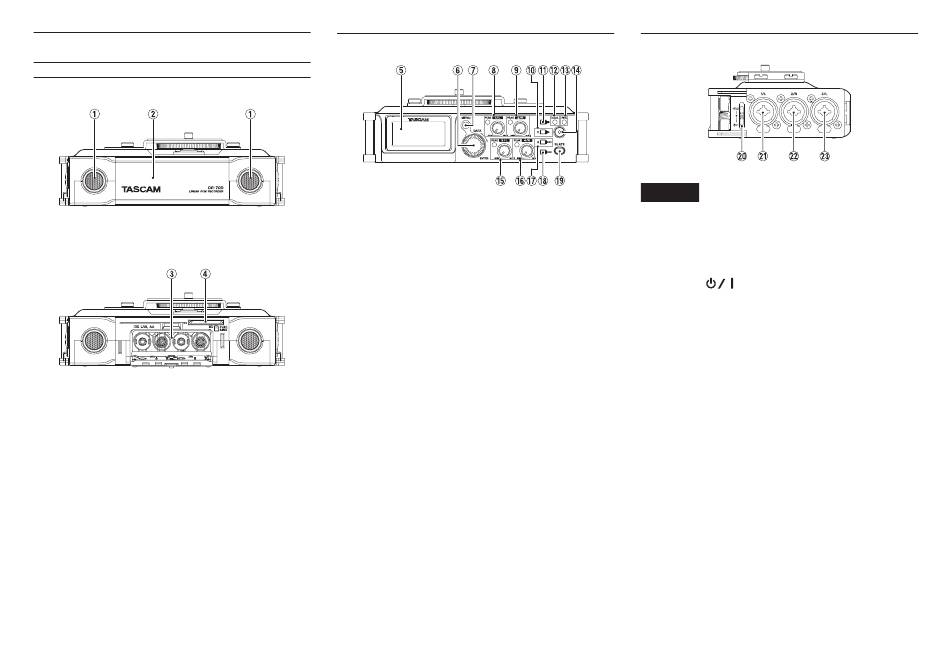

Names of Parts

Front panel

Built-in stereo microphone
1
2 Front cover
Battery compartment
3
SD card slot
4
8
TASCAM DR-70D

Rear panel

Display
5
DATA dial (ENTER)
6
Turn to select items and change values on
setting screens.
MENU button
7
1/L knob and PEAK indicator
8
2/R knob and PEAK indicator
9
2/7 button
0
1/8 button
q
DUAL indicator
w
This lights when dual recording mode is
selected.
REC indicator
e
This lights red when recording.
Record (0) button
r
3/L knob and PEAK indicator
t
y 4/R knob and PEAK indicator
3// button
u
4/. button
i
SLATE button
o
Use to record slate tones.

Left side panel

NOTE
When connecting and using plugs from
external devices, do not apply excessive force
to the plugs. Doing so could damage the
equipment.
HOLD/ switch
p
1/L connector (XLR/TRS)
a
2/R connector (XLR/TRS)
s
3/L connector (XLR/TRS)
d
