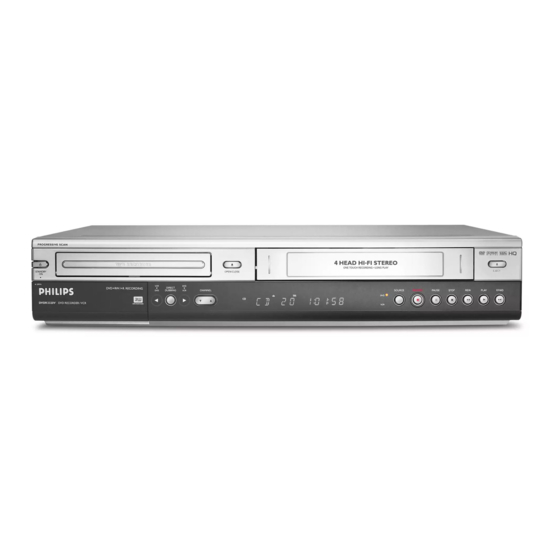

Philips DVDR3320V/01 Guia De Inicio Rapido

QUICK USE GUIDE
ANTENNA/
CABLE SIGNAL
1
3
2
AERIAL
RF.OUT
4
Connect DVD recorder
1
1
Remove the antenna cable plug from your TV (or Satellite
Receiver/Cable Box). Connect it to the AERIAL input
socket at the back of the DVD recorder.
2
Use the supplied antenna cable to connect the DVD
recorder's RF.OUT output socket to the antenna input
socket at the back of your TV set.
3
Use the scart cable to connect the DVD recorder's EURO
AV1 AUDIO/VIDEO socket to the SCART socket at the
back of your TV set.
4
Connect the power cable from the DVD recorder's
~ MAINS to the power supply.
Helpful Hints:
If your TV does not have the above-mentioned
connectors, please refer to the user manual for more
information on others possible connection to your
TV set.
2 Prepare the remote control
3
1
2
2
STANDBY
ON
OPEN
DVD recorder
back panel
3
1
Press STANDBY-ON 2 on the DVD recorder to switch
it on.
2
Switch on the TV set and select the correct video in channel.
NO PICTURE! Press the CHANNEL 3 4 button on the TV to
select the correct video in channel, for example, 'EXT', '0', or 'AV'.
3
Press SYSTEM MENU to access the setup menu.
Press 3 4 to select an item in the menu.
Press 2 to access the next level options.
Press 1 to go back previous level options.
When you complete, press OK to confirm your selections
and press SYSTEM MENU to exit.
G
Channel auto search,
In {GENERAL} select {Auto Programming}.
Press 2 to start automatic TV channel search.
Once the TV channel search complete, the total number of
channels will be saved in the tuner's memory.
G
Clock set,
In {GENERAL} select {Clock Set}.
Press OK to confirm the time and clock setting.
Press 3 4 to change the first digit and press 1 2 to go to the
previous or next digit field.
Once complete, press OK to confirm.
The DVD recorder is ready for use!
See next page for basic recording and playback.
TV/VIDEO
D.DUBBING
THUMBNAIL CHAPTER
OPEN/CLOSE EJECT
VCR DVD
DIRECT
DVD DUBBING VCR RECORD PAUSE STOP REW
CHANNEL SOURCE PLAY F.FWD
DVD
VCR
1
Start first installation
DVDR3320VR
SGP/SL/0512_01&19
English
DVD VCR OPEN/CLOSE
RETURN DISPLAY
LIST/DISC SYSTEM
MENU MENU
OK
OK
PLAY
STOP PAUSE/STEP
REW FWD RECORD 3
TIMER REC MODE
REPEAT TITLE AUDIO ZOOM
SEARCH MARKER CLEAR SHOWVIEW
VIDEOPLUS +
