Connecting a Personal Computer

Connecting your computer to your LCD monitor will enable you to display your computer's screen image.
Some video cards may not display an image correctly.

Connect the LCD Monitor to a Personal Computer

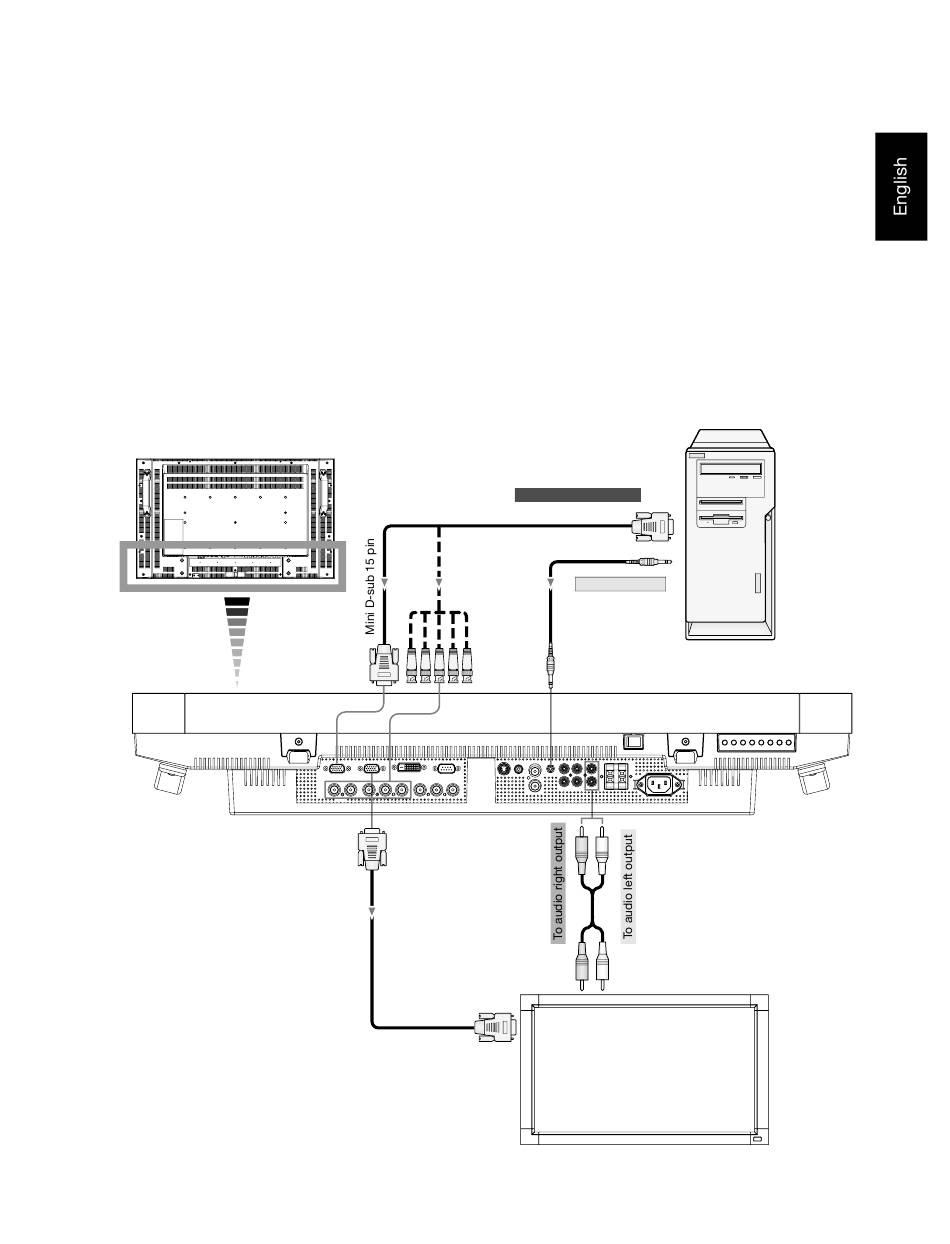

• To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable (mini
D-sub 15 pin to mini D-sub 15 pin).
• To connect the RGB 3 IN connector (BNC) on the LCD monitor, use a signal cable which is available separately (mini D-sub
15 pin to BNC x 5). Select RGB 3 from the INPUT button.
• When connecting one or more LCD monitors, use the RGB OUT connector (mini D-sub 15 pin).
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
• The AUDIO OUT jack outputs sound from the selected Audio input.
