INSTALLATION

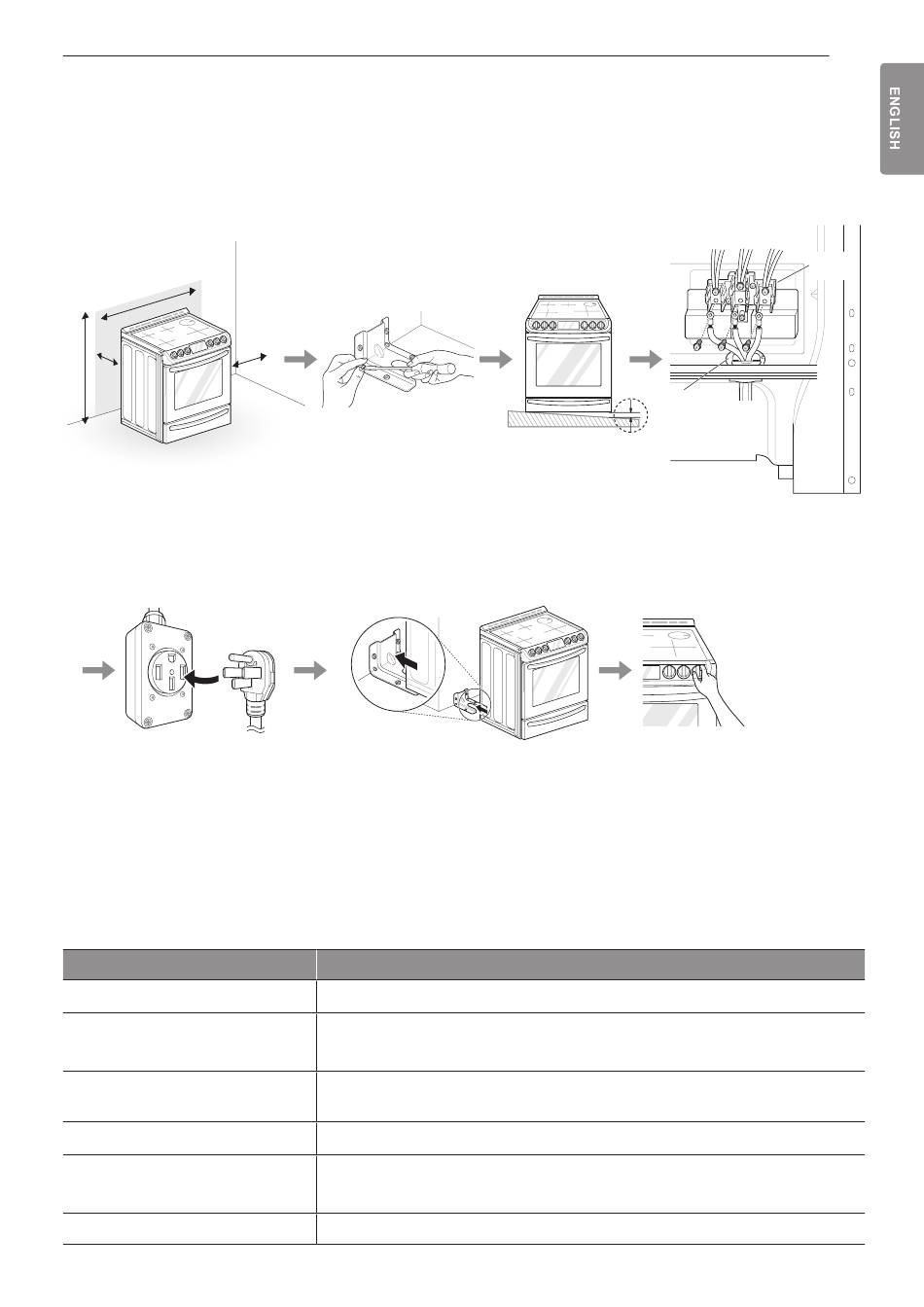

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it to another
location.
Check and choose the
proper location
240 V or 208 V
Plug in the power cord

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.
Oven Range Models
Description
Electrical requirements
Exterior Dimensions
Height to cooking surface
Net weight
Total capacity
Install anti-tip device
Engage the anti-tip device
LSE4617, LSE4616
Electric Induction Slide In Oven Range
LSE4617: 12.7 kW 120/240 VAC or 10.5 kW 120/208 VAC
LSE4616: 11.6 kW 120/240 VAC or 9.8 kW 120/208 VAC
29 / (W) x 37 / (H) x 26
7 " 7 "
8 8
75.7 cm (W) x 96 cm (H) x 67.3 cm (D) (D with door closed)
36 (91.4 cm)
"
LSE4617: 198.4 lb (90.0 kg)
LSE4616: 191.8 lb (87.0 kg)
Total cap.: 6.3 cu. ft.
Black White Red
Conduit
connection
plate
Level the range Connect electric range
Test run
/ (D) (D with door closed)
1 "
2
INSTALLATION 11
Terminal
block
