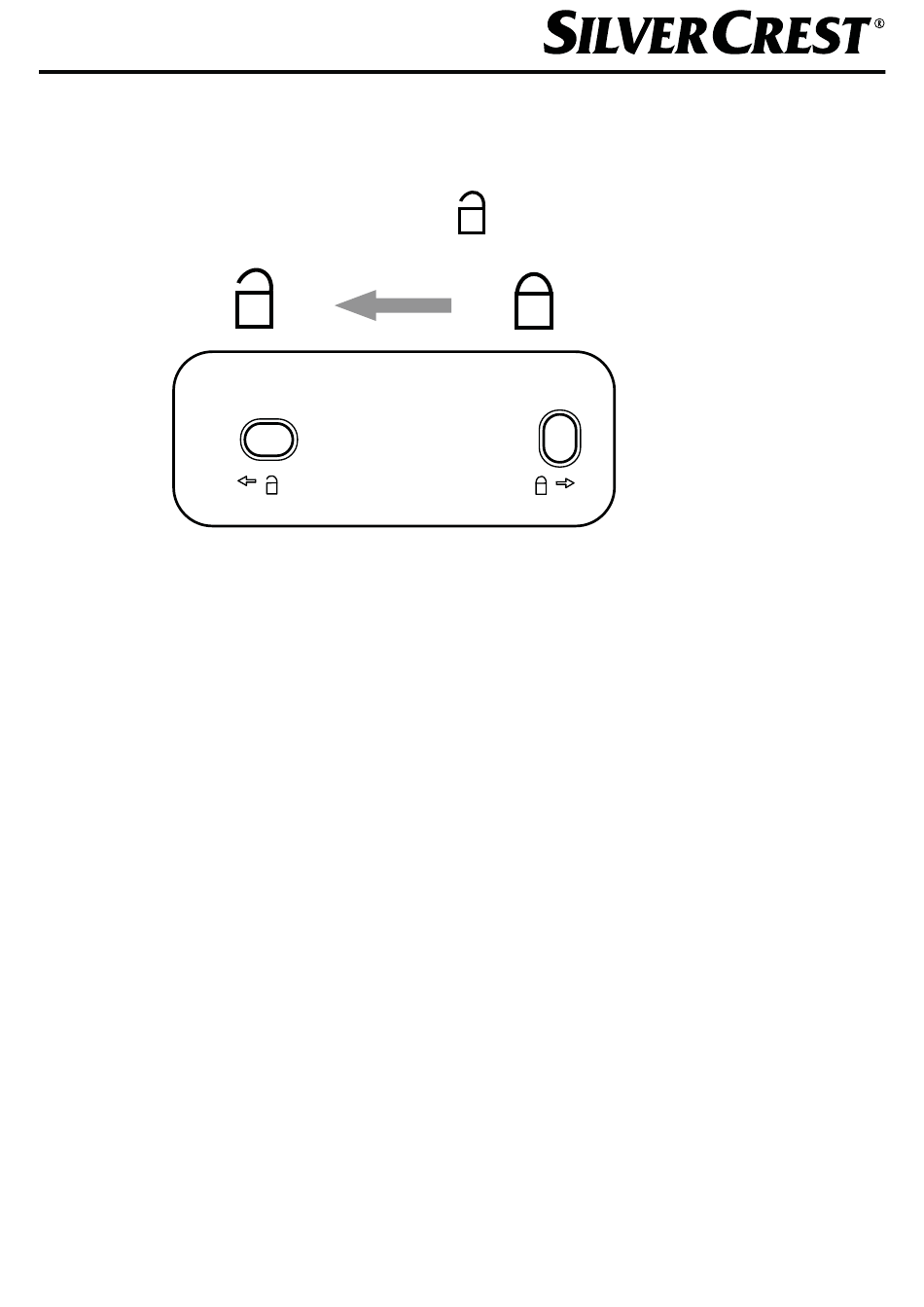

♦ Remove the wall bracket 0 from the rear side
of the transmitter by sliding it in the direction of
the open lock symbol
Fig. 1
♦ Mark the positions for the two required drill
holes by holding the wall bracket 0 against the
wall at the desired mounting location (maximum
height 2 m). Then mark the drill holes with the
two fixing eyelets q.
♦ Use a drill with a 5 mm drill bit to drill the two
holes for the supplied wall plugs r.
♦ Insert the wall plugs r into the drill holes.
♦ Screw the wall bracket 0 onto wall at the
desired mounting location using the screwdriver
and the supplied screws t.
STKK 16 B1
(see fig. 1).
