Bixolon SRP-275III Guia De Instalacion

KN02-00010A (Rev.1.1)
◈ Information
This Installation Guide includes a brief outline of information necessary for product
installation. For more detailed installation information, please refer to the user manual in the
enclosed CD. The contents of the CD include the following.
1. Manual: User Manual, Code Chart, Control Commands
2. Drivers: Windows Drivers, OPOS Drivers
3. Utilities: a logo download tool and a virtual memory switch control tool
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality
of all our products. In following, product specifications and/or user manual content may be
changed without prior notice.
◈ Components
Ribbon Cartridge
SRP-275III AC/DC Adaptor
◈ Connecting the cables
1. Turn off the printer and the host ECR (host computer).
2. Plug the power cord into the Adaptor, and then plug the Adaptor into the power connector
of the printer.
3. Check the interface cable (Serial, Parallel, USB, or Ethernet), and connect the interface
connector cable accordingly.
4. Plug the drawer kick-out cable into the drawer kick-out connector on the printer.
※ Do not use an adapter that was not supplied with the printer.
Adaptor
Power connector
Power cord
◈ Installing the Ribbon Cartridge
1. Before inserting the ribbon cartridge, turn the knob clockwise to prevent twisting of the ribbon.
2. Open the front cover of the printer and remove the old ribbon cartridge, if any.
3. Insert the ribbon cartridge as shown in the figure so that
the ribbon is aligned to the rear of the printer head.
4. To allow the ribbon to move freely within the cartridge
when inserting the ribbon cartridge, turn the knob
clockwise once more.
5. Close the front cover of the printer.
※ Note
Using unauthorized ribbon cartridges may result in poor
printing quality or malfunction and will void the warranty.
Refer to the product specifications in this guide to learn
more about the ribbon cartridge.
◈ Installing the Paper Roll
1. Open the rear cover.
2. Insert a new paper roll, making sure to align it properly.
3. Pull out a small amount of paper, and close the cover.
All manuals and user guides at all-guides.com
Printer Installation Guide
Paper Roll CD
Power Code Installation Guide
Interface connector
Drawer kick-out
connector
Drawer
kick-out
Interface cable
cable
(Serial/Parallel/USB/Ethernet)

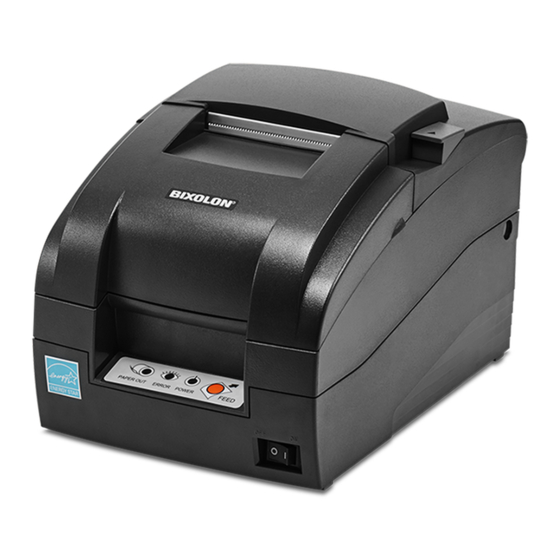

IMPACT PRINTER SRP-275III
◈ Using the Operation Panel
• FEED (Feed button)
Press the FEED button once to discharge extra
paper. Holding down the FEED button will
discharge paper continuously until the button is
released.
• POWER (Power, Green LED)
When turning on the power, a green LED will be
lit.
• ERROR (Error, Red LED)
When an error occurs, a red LED will be lit. (e.g. no
paper, cover ajar, etc.)
• PAPER OUT (Out of paper, Red LED)
The paper LED will be red when the paper roll is
running low. If there is no paper left, the paper LED
PAPER OUT ERROR POWER FEED
will be on together with 'Error' LED.
◈ Setting the DIP Switches
Changing Dip Switch settings must be done when the printer is off. Any changes done while
the printer is on will not be processed.
• DIP Switch 1
SW Function
1-1
Emulation
1-2
1-3 Auto Cutter
1-4 Compatible with SRP-275
1-5 Serial Interface
1-6 Printing NV bit image after cutting
1-7 Near-End Sensor Status
1-8 Printing column
• DIP Switch 2 (RS232C Serial Interface Model)
SW Function
2-1 Data Receive Error
2-2 Black Mark Sensor
2-3 Handshaking
2-4 Data Length
2-5 Parity Check
2-6 Parity Selection
2-7
Baud Rate Selection
2-8
• DIP Switch 2 (Parallel Interface Model)
SW Function
2-1 Auto Line Feed
2-2 Black Mark Sensor
2-3~8
(1) DIP Switch setting for Citizen (iDP 3550) Mode
• DIP Switch 1
SW Function ON
1-1
Emulation
1-2
1-3 Auto Cutter Enable
CBM CBM2 Mode
1-4
command (iDP3530 System)
1-5
International
1-6
Character
1-7
1-8 CR Mode CR
• DIP Switch 2 (RS232C Serial Interface Mode)
SW Function
2-1 Data Length
2-2 Parity Check
2-3 Parity Selection
2-4 Handshaking
2-5
Baud Rate Selection
2-6
2-7 Near-End Sensor Status
2-8 Mechanism Type
(2) DIP Switch setting for Star (SP500) Mode
• DIP Switch 1
SW Function
1-1
Emulation
1-2
1-3 Auto Cutter
1-4 Printing in Black/Red
1-5~8
• DIP Switch 2 (RS232C serial interface model)
SW Function
2-1
2-2
2-3 Handshaking
2-4 Data Length
2-5 Parity Check
2-6 Parity Selection
2-7
Baud Rate Selection
2-8
ON OFF
Refer to the following table 1
Enable Disable
Enable Disable
Memory Switch DIP Switch
Enable Disable
Enable Disable
42 40
ON OFF
Ignore Print "?"
Enable Disable
XON/XOFF DTR/DSR
7 bits 8 bits
Enable Disable
EVEN ODD
Refer to the following table 2
ON OFF
Enable Disable
Enable Disable
Undefined
OFF
Refer to the following table 1
Disable
CBM1 Mode
(iDP3540 System)
Refer to the following table 3
CR+LF
ON OFF
8bits 7bits
Disable Enable
ODD EVEN
DTR/DSR XON/XOFF
Refer to the following table 2
Enable Disable
Graphic Text
ON OFF
Refer to the following table 1
Enable Disable
Enable Disable
Reserved
ON OFF
Reserved
XON/XOFF DTR/DSR
7bits 8bits
Enable Disable
EVEN ODD
Refer to the following table 2
Default
OFF
ON
OFF
OFF
OFF
ON
OFF
Default
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Default
OFF
OFF
OFF
Default
OFF
OFF
OFF
ON
OFF
Default
ON
ON
ON
ON
OFF
OFF
OFF
Default
OFF
OFF
OFF
OFF
Default
OFF
OFF
OFF
OFF
OFF
OFF
OFF
