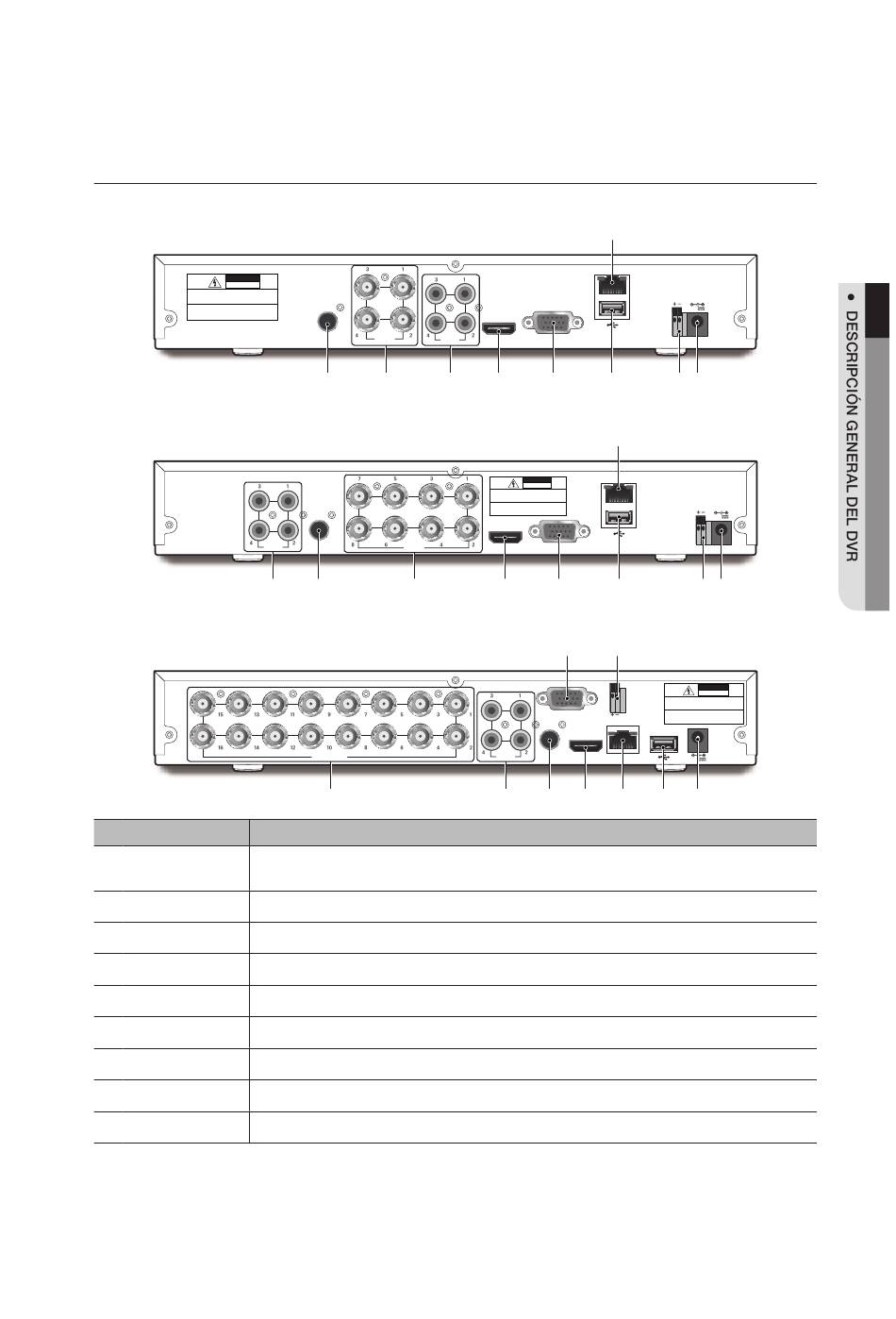

PANEL TRASERO

SDR-B73303
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
SDR-B74303
SDR-B75303
Interfaz física
LAN: (RJ45)
a
Conectar con LAN, cable Ethernet.
Puerto de red
b
Salida de audio
Salida de señal de audio, puerto RCA
c
Entrada de vídeo Conectar con el dispositivo de entrada de vídeo (analógico), puerto estándar BNC
d
Entrada de audio Conectar con señales de entrada de audio, puerto RCA
e
HDMI Conexión con los dispositivos de visualización HDMI, como el monitor de PC.
f
Puerto VGA Conexión con dispositivos de pantalla VGA, tales como el monitor de PC.
g
Puerto USB
Conexión con USB.
h
RS-485 Puerto RS485. Conéctese según la siguiente definición de interfaz
i
Puerto de alimentación
Conexión con la fuente de alimentación CC de 12V 2A, incluido con el dispositivo
AUDIO VIDEO
INPUT
OUTPUT
b c
AUDIO
VIDEO
AUDIO
INPUT
OUTPUT INPUT
d b c
VIDEO INPUT
c
a
LAN
AUDIO
HDMI VGA
INPUT
d e f g
a
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
HDMI VGA
e f g
f h
VGA
AUDIO
AUDIO
HDMI
INPUT
OUTPUT
d b e
Conexión
12V
RS-485
h i
LAN
12V
RS-485
hi
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
RS-485
FOR OUTDOOR USE TO RAIN OR MOISTURE.
LAN
12V
a g i
Español _5
