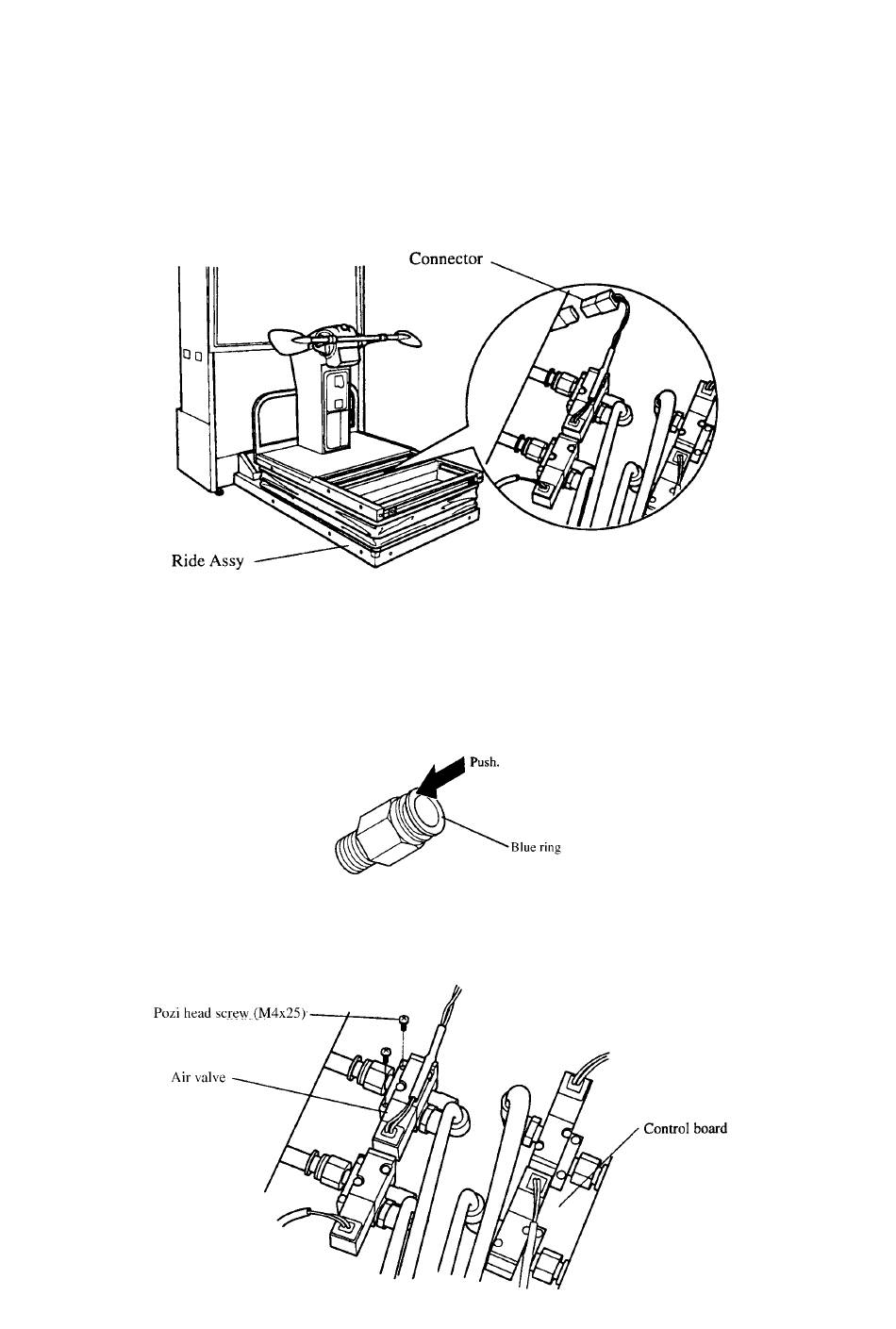

8-5 Replacing the Air Valve
The Base assy is fitted with four (4) Air valves. All Air valves are removed and
replaced in the following manner.
1.
Remove the seat assy.
2.
Disconnect the connector.
3.
Disconnect tha air tubes from the air valve.
Note:
When removing the air tube push the blue ring of the connector in
and whilst holding it in, pull the air tube out.
If the compressor reservoir tank has air in it, a loud noise will be
heard as the air escapes when the air tube is removed.
4.
Remove the two pozi head screws (M4x25) and remove the air valve from
the control board.
(see section 8-3 page 59)
Page 62
