Bixolon SPP-R400 Guia De Instalacion

KN09-00036A (Rev.1.1)
◈ Information
This installation guide contains quick information required for the product
installation.
Refer to the User's Manual in the CD that comes with the product for detailed
installation instructions. The CD contains the following information.
1. Manual: User's, Windows CE Module Program, Code pages, Commands,
Bluetooth & Wireless
2. Driver: Windows driver
3. Utility: VMSM (Virtual Memory Switch Manager),
NV Image Download Manager, Firmware Download Manager
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions
and quality of all our products. In following, product specifications and/or user
manual content may be changed without prior notice.
◈ Battery Safety Precautions
1. If you observe any abnormal symptom, such as strange smell and overheating,
on first use after purchasing the product, contact your local dealer immediately.
2. Charge the battery only with the exclusive charger specified (optionally
provided) by BIXOLON. The use of an incorrect charger may result in
overheating, combustion and/or explosion of the battery.
3. Do not use or leave the battery in a location exposed to high temperatures or
intense direct sunlight, such as within an automobile. Doing so can cause
battery overheating and/or combustion. In addition, battery performance and
product life may be reduced.
4. Do not allow water, seawater or moisture to enter or leak into the battery. If the
safety mechanism within the battery becomes oxidized, the battery may
overcharge with abnormal electrical current and/or voltage so that it may
overheat, ignite and/or explode.
5. Do not throw the battery or subject it to strong shock. If the safety mechanism
in the battery is damaged, the battery may be overcharged and, consequently,
an adverse chemical reaction may be generated in the battery.
There is a potential risk of battery overheating, combustion, and/or explosion.
6. Do not use the battery if it is damaged or the exterior is deformed due to
external shock or if it is swollen.
◈ Content Confirmation
SPP-R400/R400II Battery
Power Cord Belt Clip
◈ Product Part Names
Paper Cover
Power Button
Paper Feed
Button
Open
MSR Cover Button
◈ Installation and Charging
Battery
Installation
※ Note
As the battery is not charged at the time of purchase, charge the
battery prior to product use. (Use the battery charger)
Battery Charger Paper Roll
CD Installation Guide
Hole for mounting
Shoulder Strap
belt strap / belt clip
Connection Holes
Battery
Interface Cap
Vehicle Cradle
Cable Connection
Connection
Power Connection
1. Insert the battery on the rear side of
the printer, aligning the battery
hook properly.
2. Push the battery into the slot until a
snapping sound is heard.
Printer Installation Guide

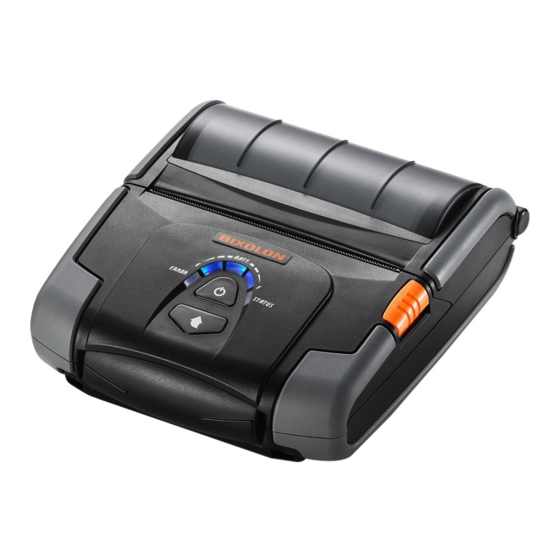

Mobile Receipt Printer SPP-R400/R400II
Paper
Installation
Battery
Charging
※ Note
The printer may incur serious damage If the battery charger
provided by BIXOLON is not used. BIXOLON is not legally
liable for any such damage. (The voltage and electrical current
specifications of the printer and battery charger must match.)
Belt Strap
Installation
◈ Control Panel Usage
POWER BUTTON FEED BUTTON
• POWER BUTTON
This button is used to turn the printer on and off.
• FEED BUTTON
This button is used to feed paper manually, take the self-test and dump
hexadecimals.
• ERROR LED
If the red led is lit, the paper cover is open.
If the red led is blinking, either the paper has been fully used or the print head is
overheated.
If the red led continues to blink, it may indicate a more serious problem with the
product, and thus an authorized service dealer should be consulted.
• BATTERY LED
If Three blue led are lit, the battery is fully charged.
If two blue led are lit, the battery is half charged.
If one blue led is lit, the battery is at the lowest charge level.
If the red led is lit, the battery must be charged or replaced.
• STATUS LED (Bluetooth or Wireless LAN)
1) When using Bluetooth
If the printer is ready for wireless communication with any Bluetooth, the green
led as well as the battery status led is turned on.
2) When using wireless LAN
The right indicator shows the signal strength from wireless LAN.
The green led is solid for acceptable signal strength while the green led blinks
for weak signal strength.
※ Note
In power save mode, only the Status led is lit.
1. Press the open button to open the
paper cover.
2. Insert the paper as shown in the
image. (Remove any remaining
core of a fully used paper roll.)
3. Take care to align the paper
correctly.
4. Pull the paper out and close the
paper cover.
5. Tear off any excess paper in the
direction of the side of the printer.
1. Turn off the printer power.
2. Connect the power cord to the
battery charger, and the connect
AC power.
3. Open the external interface cap in
the direction of arrow.
4. Connect the battery charger to the
power connector.
1. Insert the belt strap screw into the
belt strap hole.
2. Use a coin to tighten the belt strap
screw as shown in the image.
ERROR LED BATTERY LED STATUS LED
