3 - Assembly

3.1 - Checking the com
pleteness and
condition of the
delivery

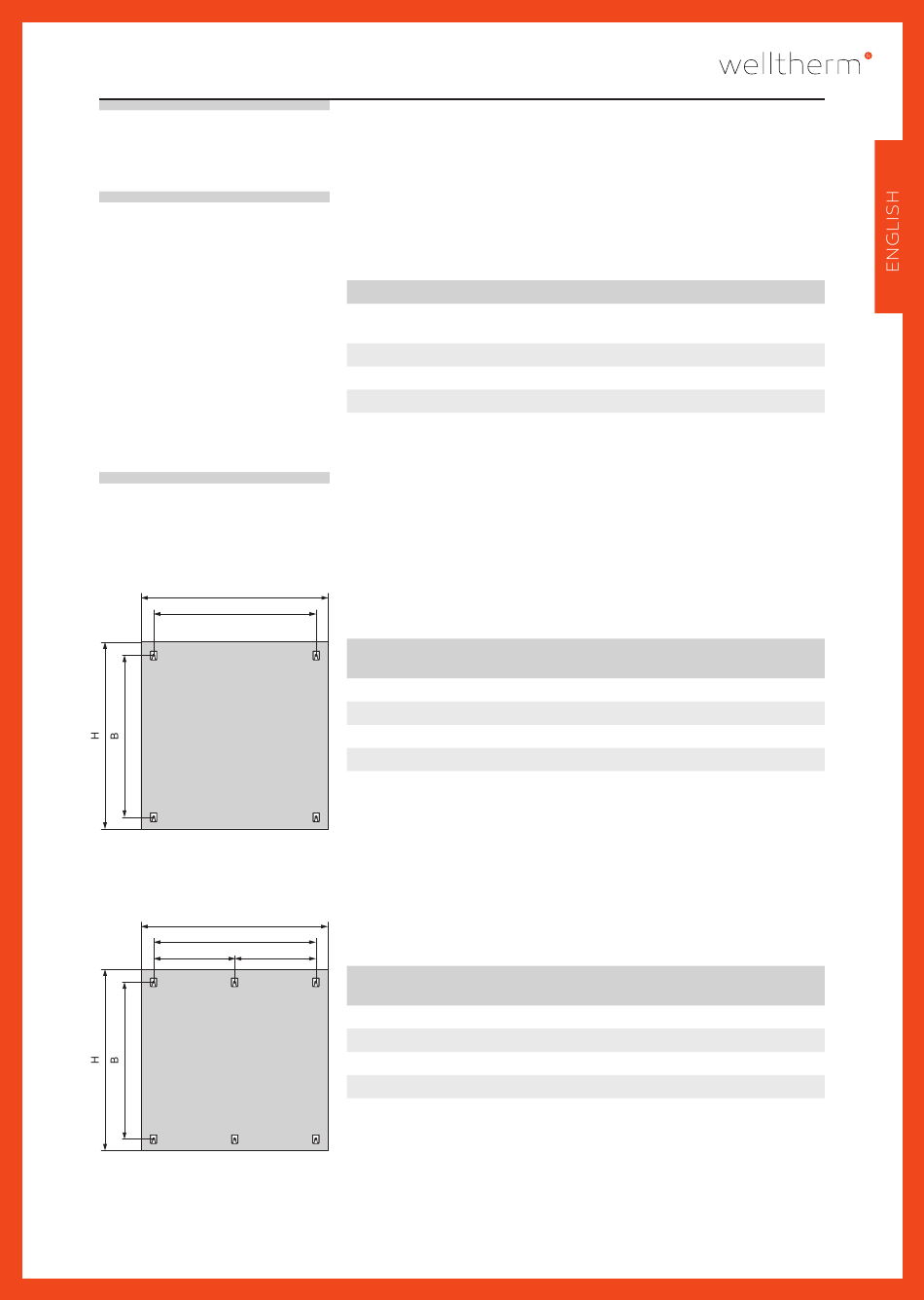

3.2 - Dimensions

Heaters up to
1,200 mm in length
L
A
Heaters from
1,500 mm in length
L
A
A1 A1
Checking of the delivery for completeness and proper condition.
Quantity Designation
1 piece Infrared radiant heater with preassembled
connection cable and wall brackets (V-brackets)
1 piece Assembly template
1 piece Standard fastening set
1 piece Installation guide and operating manual
Product H
(mm)
xx0370/xx0500 600
xx0580/xx0750 600
xx0780/xx1000 600
xx0360 400
Product H
(mm)
xx0930/xx1300 600
xx0625 400
xx1250 750
xx1725 900
L A
(mm) (mm)
600 440
900 740
1.200 1.040
900 740
L A A1
(mm) (mm) (mm)
1.500 1.340 670
1.500 1.340 670
1.500 1.340 670
1.800 1.640 820
B
(mm)
440
440
440
240
B
(mm)
440
240
600
740
