IMPORTANT MANUAL
OPERATOR'S MANUAL
MODEL:
PP22VA48

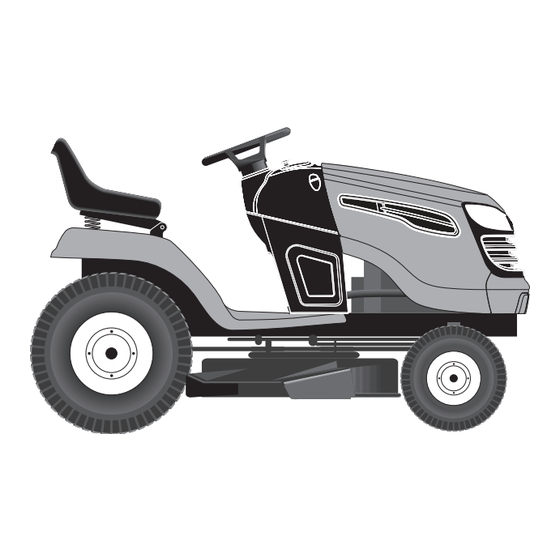

LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulanpro.com
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
115 86 01-27 Rev. 1
DO NOT THROW AWAY
WARNING:
Read this Man u al and follow all Warnings
and Safety Instructions. Fail ure to do so can
re sult in serious in ju ry.
01.23.17 BD
Printed in the U.S.A.
Publicidad
Manuales relacionados para Poulan Pro PP22VA48
Resumen de contenidos para Poulan Pro PP22VA48
- Página 1 Read this Man u al and follow all Warnings MODEL: and Safety Instructions. Fail ure to do so can re sult in serious in ju ry. PP22VA48 LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulanpro.com Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
- Página 2 SAFETY RULES Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Be alert and turn machine off if a child enters the area. WARNING: In order to prevent ac ci den tal •...
- Página 3 SAFETY RULES Safe Operation Practices for Ride-On Mowers III. SLOPE OPERATION • Never remove gas cap or add fuel with the engine running. • Allow engine to cool before refueling. WARNING! When loading or unloading • Never fuel the machine indoors. this machine, do not exceed the maximum •...
- Página 4 PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance. Gasoline Capacity 2.5 Gallons/9,46 L and type: Regular Unleaded Should you experience any problem you cannot easily remedy, please contact your nearest authorized service Oil Type: SAE30 (above 32°F/0°C)
- Página 5 UNASSEMBLED PARTS Keys Slope Sheet Battery (1) Oil Drain Tube (2) Hex Bolts (1) Quick Connect (2) Nut Keps Key(s) ASSEMBLY Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. NOTE: If this battery is put into service after month and TOOLS REQUIRED FOR ASSEMBLY year indicated on label (label is located between terminals)
- Página 6 ASSEMBLY ADJUST SEAT (See Fig. 2) CHECK FOR PROPER POSITION OF ALL BELTS • Raise seat and loosen adjustment knob/bolt (A). See the figures that are shown for replacing motion and • Lower seat into operating position and sit in seat. mower blade drive belts in the Service and Adjustments •...
- Página 7 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. COLD WEATHER REVERSE NEUTRAL HIGH FAST SLOW IGNITION STARTING POSITION SWITCH ENGINE ENGINE ENGINE DIFFERENTIAL CLUTCH/ PARKING MOWER MOWER START LOCK BRAKE PEDAL BRAKE...
- Página 8 OPERATION KNOW YOUR TRACTOR READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Fig.
- Página 9 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
- Página 10 OPERATION TO MOVE FORWARD AND BACKWARD TO ADJUST GAUGE WHEELS (See Fig. 9) (See Fig. 7) Gauge wheels are prop er ly ad just ed when they are slight ly off the ground when mower is at the desired cutting height in The direction and speed of movement is controlled by the operating position.
- Página 11 OPERATION REVERSE OPERATION SYSTEM (ROS) (See TO TRANSPORT (See Fig. 3 & 12) Fig. 11) When push ing or tow ing your trac tor, ensure transmission is disengaged by placing freewheel control in free wheel ing Your tractor is equipped with a Reverse Operation System po si tion.
- Página 12 OPERATION BEFORE STARTING THE ENGINE TO START ENGINE (See Fig. 3) The Briggs & Stratton Endurance engine equipped with CHECK ENGINE OIL LEVEL your tractor features a Ready-Start automatic choke system The engine in your tractor has been shipped from the fac- to provide simplified starting in normal conditions.
- Página 13 OPERATION MOWING TIPS • DO NOT use tire chains when the mower hous ing is attached to tractor. • Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual. •...
- Página 14 MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE SCHEDULE EACH SEASON STORAGE HOURS HOURS HOURS HOURS Check Brake Operation Check Tire Pressure Check Operator Presence and ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Clean Debris off Steering Plate Check Mower Levelness...
- Página 15 MAINTENANCE TRACTOR BLADE CARE For best results mower blades must be kept sharp. Re place Always observe safety rules when per form ing any bent or damaged blades. main te nance. BRAKE OPERATION CAUTION: Use only a replacement blade ap- proved by the manufacturer of your tractor.
- Página 16 MAINTENANCE V-BELTS TO CHANGE ENGINE OIL (See Fig. 16 & 17) Check V-belts for deterioration and wear after 100 hours Determine temperature range expected before oil change. of operation and replace if necessary. The belts are not All oil must meet API service classification SG-SL. ad just able.
- Página 17 MAINTENANCE CLEANING AIR FILTER Your engine will not run properly using a dirty air filter. • Clean engine, battery, seat, finish, etc. of all foreign Service air cleaner more often under dusty conditions. matter. • Clean debris from steering plate. Debris can restrict CLEAN AIR SCREEN clutch/brake pedal shaft movement, causing belt slip The air screen is over the air intake blower located on top...
- Página 18 MAINTENANCE DECK WASHOUT PORT (See Fig. 20) Your tractor’s deck is equipped with a washout port as part of its deck wash system. It should be utilized after each use. 1. Drive the tractor to a level, clear spot on your lawn, near enough to a water spigot for your garden hose to reach.
- Página 19 SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST MENTS: • Depress brake pedal fully and set parking brake. • Place attachment clutch in “DISENGAGED” position. • Turn ignition key to “STOP” and remove key. •...
- Página 20 SERVICE AND ADJUSTMENTS 2. ASSEMBLE FRONT GAUGE WHEEL (W) TO FRONT 5. INSTALL ANTI-SWAY BAR (S) (IF EQUIPPED) OF MOWER (See Fig. 24) (See Fig. 27 - 29) H. FRONT MOWER ANTI-SWAY BAR (S) BRACKET W. FRONT GAUGE TOWARDS TOWARDS WHEEL TRANSAXLE MOWER DECK...
- Página 21 SERVICE AND ADJUSTMENTS 6. ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert other end of link (E) into hole in front mower CHASSIS (See Fig. 30) bracket (H) and secure with washer and small retainer spring (J). • Position front hole in side suspension arm (A) over pin on outside of tractor chassis and secure with large NOTE: Requires deck lifting.
- Página 22 SERVICE AND ADJUSTMENTS TO LEVEL MOWER • Recheck measurements, adjust if necessary until both sides are equal. Ensure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appear- FRONT-TO-BACK ADJUSTMENT (See Figs.
- Página 23 SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT TO REPLACE MOTION DRIVE BELT (See Fig. 38) (See Fig. 39) Park the tractor on level surface. En gage parking brake. MOWER DRIVE BELT REMOVAL For as sis tance, there is a belt installation guide decal on •...
- Página 24 SERVICE AND ADJUSTMENTS TO CHECK BRAKE TO START ENGINE WITH A WEAK BATTERY (See Fig. 41) If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be serviced.
- Página 25 SERVICE AND ADJUSTMENTS REPLACING BATTERY (See Fig. 42) INTERLOCKS AND RELAYS Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting. WARNING: Do not short battery ter mi- nals by allowing a wrench or any other •...
- Página 26 STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS WARNING: Never store the trac tor with FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH gas o line in the tank inside a building AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK...
- Página 27 TROUBLESHOOTING PROBLEM CAUSE CORRECTION 1. Out of fuel. 1. Fill fuel tank. Will not start 2. Engine flooded. 2. Wait several minutes before attempting to start. 3. Bad spark plug. 3. Replace spark plug. 4. Dirty air filter. 4. Clean/replace air filter. 5.
- Página 28 TROUBLESHOOTING PROBLEM CAUSE CORRECTION Engine continues to 1. Faulty operator-safety presence control 1. Check wiring, switches and connections. If not system. corrected, contact an authorized service center/ run when operator department. leaves seat with attachment clutch CAUTION: DO NOT operate machine until engaged problem is corrected.
