1. Prepare the Site

Alcove
Rough
Plumbing
Construct 2x4
stud framing
according to the
product dimensions.

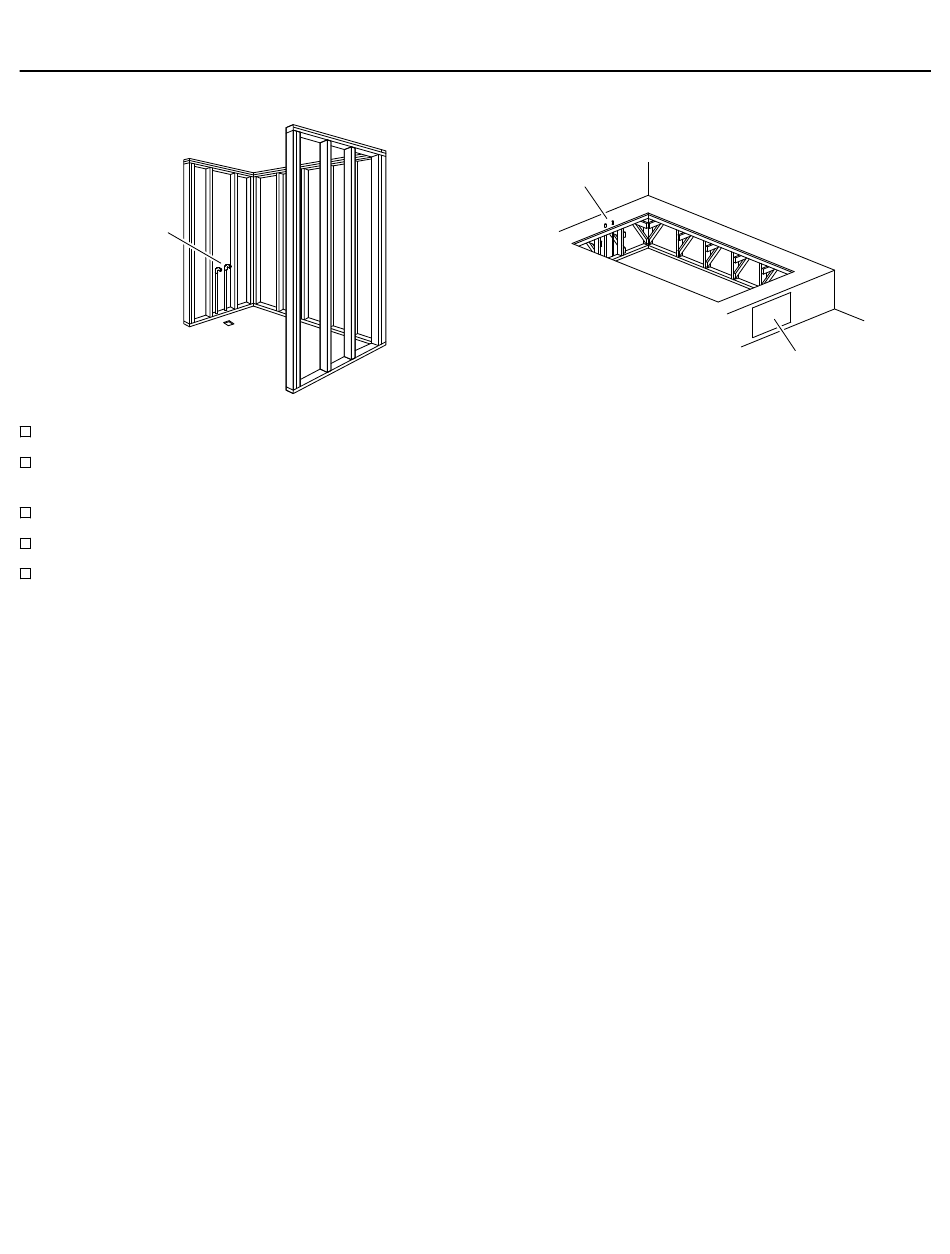

Construct 2x4 stud framing according to the product dimensions.
Install an access panel for future blower servicing. The access panel must be at least 30" (762 mm) wide by 15" (381
mm) high. Integrated apron models have access panels included in the apron designs.
Install the rough plumbing.
Install the drain to the bath according to the drain manufacturer's instructions.
Protect the bath surface by positioning a clean drop cloth in the bowl bottom.
Kohler Co.
Drop-In
Rough Plumbing
Construct according
to the product
dimensions.
5
Access
Panel
