FR 200 • Operating Manual

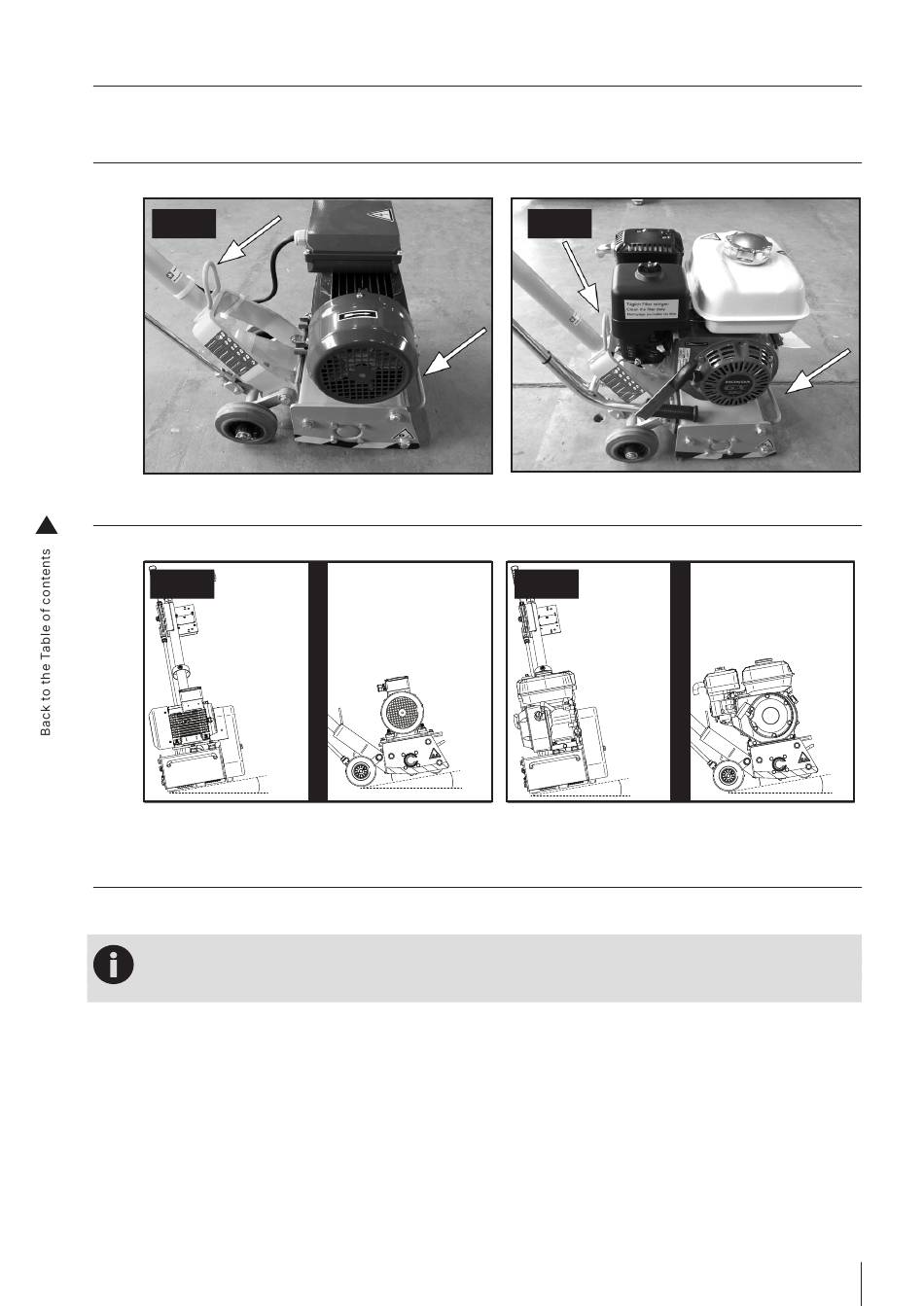

Transport hooks

115V, 230V, 400V (Fig. 20). Gasoline (Fig. 21).
Fig. 20

Maximum permitted working inclination

115V, 230V, 400V (Fig. 22). Gasoline (Fig. 23).
Fig. 22
10⁰

OPERATION

Commissioning

Machines with internal combustion engines
For reasons of transport safety, new machines are delivered without fuel and engine oil.
Before commissioning read the engine manufacturer's Operating Manual.
• Add engine oil
• Add fuel
Machines with electric motors
• The CEE plug (16A) is also supplied for countries in which this plug system has not been
introduced. 115V machines are supplied with no plug.
• An extension cable must be available for connection to the machine. Unroll the extension
cable completely from the cable drum. Use only permitted extension cables (max. 30 m).
• Switch the machine on briefly and compare the direction of rotation of the motor with the
arrow on the fan cover. If necessary, change the direction of rotation by phase reversal.
(Changing the phase in the CEE plug).
Fig. 21
Fig. 23
10⁰
10⁰
Operation
10⁰
15
