1.5 System Check

Upon completion of installation, check winch for proper operation.
Hydraulic Fluid
• The hydraulic fluid should be a high grade, petroleum based fluid, with rust, oxidation and wear
resistance. Fluid cleanliness and operating viscosity are critical to winch reliability, efficiency and
service lift.
Hydraulic Pump
• To maintain the maximum performance, the hydraulic pump must supply the maximum flow of
hydraulic fluid at the hydraulic pressure stated in specification.
Hydraulic Control Valve
• The control valve must have a four-way spring return to neutral feature, which provides for open
flow from the pressure ports of the winch to the reservoir in neutral position of the control (motor
spool).
Hydraulic Pressure Relief
• The hydraulic system requires a pressure relief valve set at the operating pressured.
• Failure to use the correct pressure and flow may result in damage to the winch, property or personal
injury.
Hydraulic Reservoir
• The hydraulic reservoir has sufficient capacity to provide good heat dissipation in order to prevent
over-heating of the hydraulic fluid.
• Must be fitted with an oil filler device comprising strainer and filter and a dip stick. The capacity of
the tank should be at least 60 liters.
10
CEQUENT
Installation Instructions

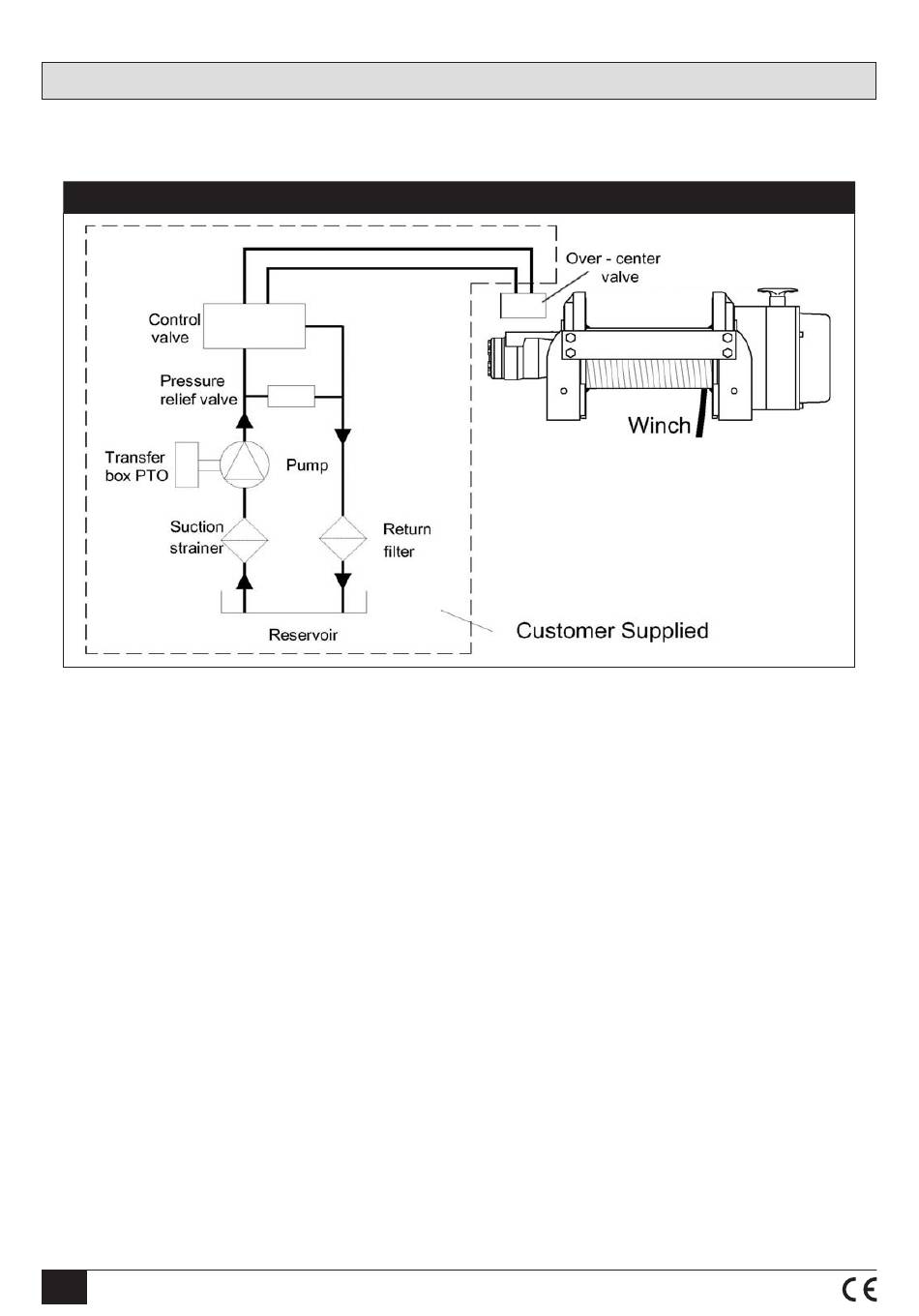

Figure 2 - HW8000, HW12000, & HW15000 Installation Diagram
