4.19 IP Camera connection

Raymarine ® IP cameras can be connected
directly to the display's network connection or can
be connected to the SeaTalk
Raymarine ® network switch.
The network connection transmits the video signal to
a compatible Raymarine

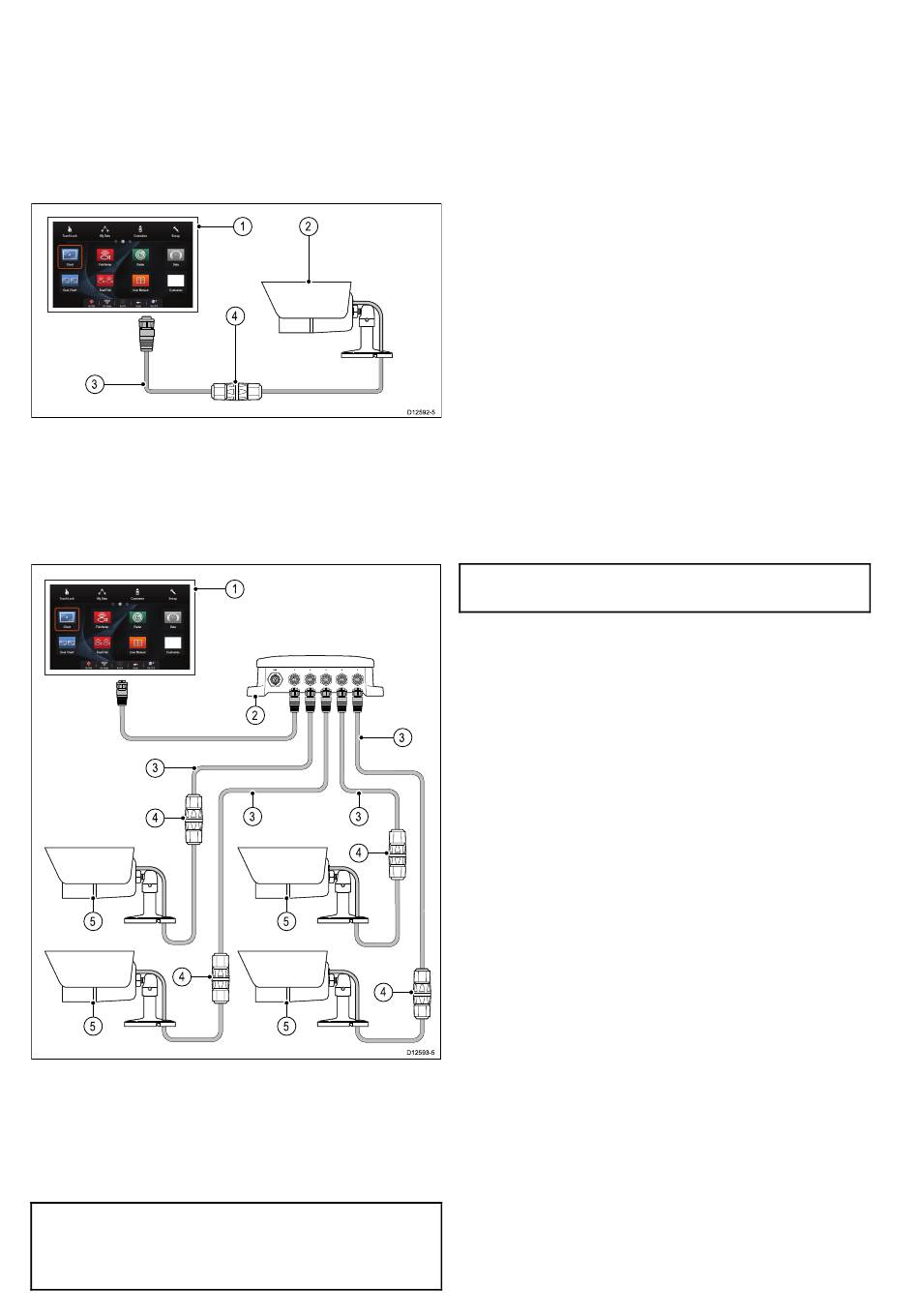

IP camera direct connection
1. MFD
2. CAM200IP
3. RayNet to RJ45 SeaTalk
4. Ethernet coupler (R32142)
IP camera network connection
1. MFD
2. Raymarine ® network switch
3. RayNet to RJ45 SeaTalk
4. Ethernet coupler (R32142)
5. CAM200IP
Important: If your IP camera(s) are not detected
by your multifunction display, try power cycling
the IP camera(s) whilst leaving your multifunction
display powered up.
50
hs network, via a
® MFD.
1
hs adaptor cable
1
hs adaptor cable
For further information regarding camera installation
(including power connection and mounting), refer to
the installation instructions supplied with the camera.
IP camera guidance
Raymarine ® MFDs are capable of displaying IP
camera feeds. Whilst third-party IP cameras may
work, Raymarine
Raymarine ® IP cameras such as the CAM200IP.
As guidance any third-party IP camera must conform
to the following:
• The camera must support H.264 compression and
RTSP (Real time Streaming Protocol).
• The camera must be ONVIF compliant
• The camera must be capable of and be setup to
allow unauthenticated anonymous access
• The camera must be capable of and be setup to
assign an IP address automatically via DHCP
D12592-5
• The camera resolution must be set to no higher
than 720p
The camera settings must be checked and if
necessary adjusted using a PC and the software
supplied with the camera, prior to adding the camera
to the SeaTalk hs
Important: Raymarine
compatibility with third-party IP cameras.
D12593-5
® highly recommends only using
network.
® does not guarantee
eS Series installation instructions
