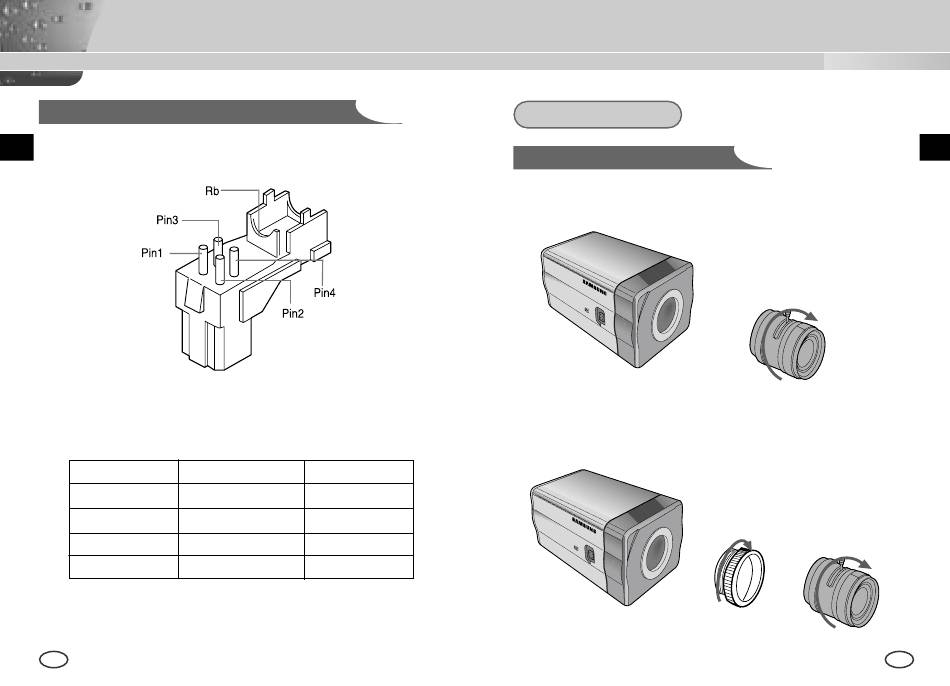

Connecting Auto Iris Lens Connector
Prepare the Auto Iris lens connector, a camera auxiliary, as follows :
E
Connect each uncovered shutter control cable wire to the Auto Iris lens
connector as follows.
Pin No.
1
2
3
4
14
DC Control Type VIDEO Control Type
Damp(-) Power (+12V)
Damp(+) N/A
Drive(+) VIDEO Signal
Drive(-) GROUND
Installation
Lens Fixing
In case of CS lenses
Turn the CS lens clockwise until it is fixed as shown as follows.
In case of C lenses
Turn the C-mount adapter clockwise to fix it. Then turn the C lens
clockwise until it is fixed as follows.
E
CS lens
C lens
