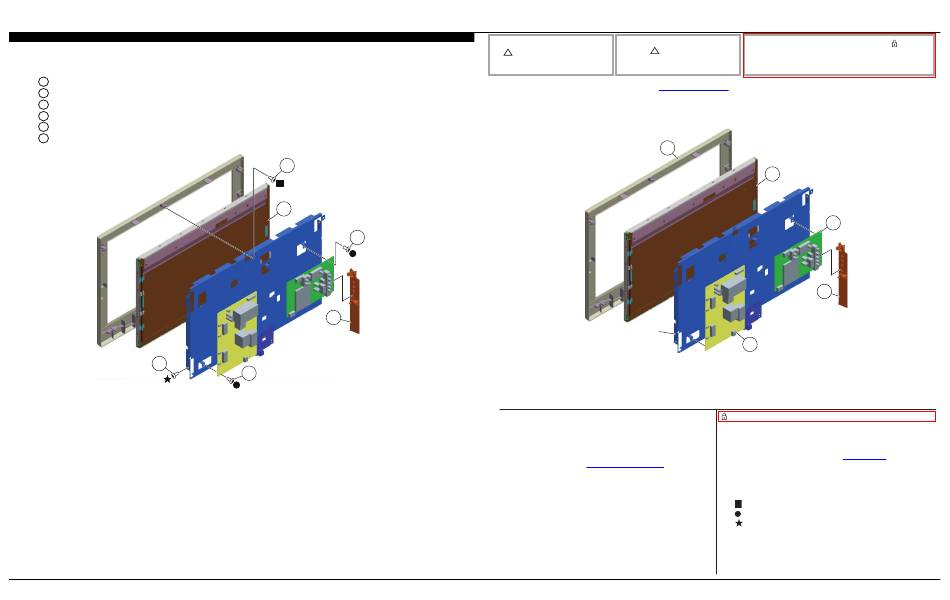

2-3. A BOARD, GD8 (POWER) BOARD AND PANEL REMOVAL

A
Remove 4 screws and disconnect 5 connectors from A Board to detach from Panel Bracket
B
Release 2 clips and slide-out Side Jack Bracket to detach from A Board
C
Remove 5 screws and disconnect 5 connectors from GD8 (Power) Board to detach from Panel Bracket
D Remove 4 screws from Panel Bracket to detach from Panel
E
Remove 1 screw from Panel Bracket to detach from Bezel
F Carefully Lift up Panel to remove from Bezel
D
KDL-22BX320/22BX321
SEC 2. DISASSEMBLY/PART NUMBER INFORMATION
E
F
A
B
C
NOTE: Les composants identifies per un trame et
NOTE: The components identified by shading
une marque ! sont critiques pour la securite.
and mark are critical for safety. Replace only
!
Ne les remplacer que par une piece portant le
with part number specified.
numero specifie.
(Check the Sony Authorized Servicer Portal at www.sony.com/asp
101
Panel
Bracket
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
101 4-270-686-11 BEZEL (GW22) (FOR US/CND ONLY)
101 4-270-686-21 BEZEL (GW22) (FOR MX ONLY)
102 NA LCD PANEL
FOR ALL LCD PANEL PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
NOTE: The components identified by a red outline and a mark contain
confidential information. Specific instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
for any additional service related issues for this model.)
102
103
104
105
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
103 1-857-903-11 A BOARD, COMPLETE
After replacing the Main Board or the LCD Panel, you must update
the software to the latest version. Instructions for updating the
software are included with the software package on the
Sony Authorized Servicer Portal at www.sony.com/asp website
104 4-264-318-01 BRACKET, SIDE (US) (GW)
105 1-857-895-11 GD8 (POWER) BOARD, COMPLETE
2-580-637-01 SCREW, +BVST 4X12
2-580-592-01 SCREW, +PSW M3X8
4-256-393-01 SCREW, +PSW M3X6 W12
