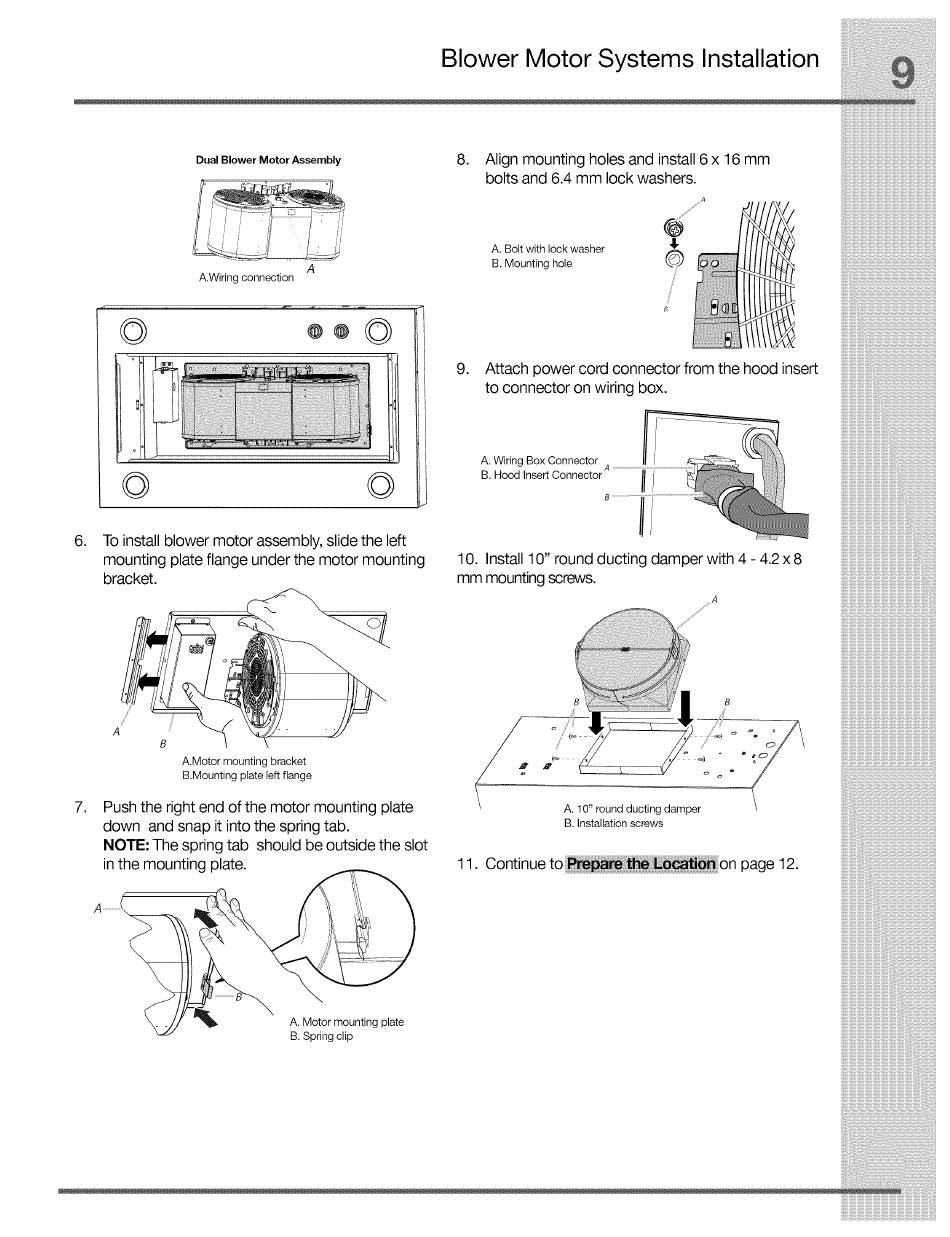

Blower Motor Systems Installation
Dual Blower Motor Assembly
A
A.Wiringconnection
8. Align mounting holes and install 6 x 16 mm
bolts and 6.4 mm lock washers.
A. Bolt with lock washer
B. Mounting hole
.I.
©
8
9. Attach power cord connector from the hood insert
to connector on wiring box.
6. To install blower motor assembly, slide the left
mounting plate flange under the motor mounting
bracket.
10. Install 10" round ducting damper with 4 - 4.2x8
mm mounting screws.
.
A
A.Motor mounting bracket
B.Mounting plate left flange
Push the right end of the motor mounting plate
down and snap it into the spring tab.
NOTE: The spring tab should be outside the slot
in the mounting plate.
B B
A. 10" round ducting damper
B. Installation screws
11. Continueto __ ti_on page 12.
A. Motor mounting plate
B. Spring clip
