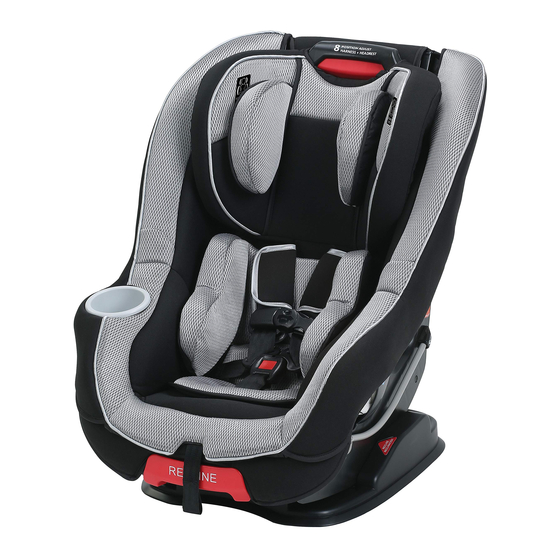

Graco Size4Me Manual De Instrucciones
Ocultar thumbs Ver también para Size4Me:

Publicidad

Enlaces rápidos

To Remove Existing Harness Tongues and Buckle and Attach Replacement Buckle
You will receive ONE of
these Graco approved
replacement buckles.
Follow instructions for
proper installation.
4
Pull harness straps
through seat back and
seat pad.
7
Remove and
discard tongues.
11
Re-insert straps back onto splitter plate.
Size4Me
MySize
®
Buckle Replacement Guide
1
Squeeze handle and
pull up on headrest to
highest position.
5
Remove chest clip.
DO NOT DISCARD
the chest clip.
8
Slide NEW buckle
onto harness straps.
MAKE sure not to
twist straps.
Fit4Me
®
®
2
To loosen straps,
lift lever and pull
harness straps.
6
9
Re-attach chest clip.
MAKE sure not to
twist straps.
Turn page over to
the assembly
Steps 12 to 21
for the buckle
replacement.
Headwise
®
©2014 Graco PD246350C 3/14
Remove harness
3
strap loops from
splitter plate.
Unbuckle harness
by tilting top of
buckle down,
press top of
red button, and
pull tongues
out of buckle.
10
Re-insert straps through slots
in seat pad and seat back.
See carseat owner's manual
for proper height setting for
your child.
