Installation and User Manual HELO Roxx Trend
2.18
Heater
Adapter circuit board
OLEA 99
Heater
Adapter circuit board
OLEA 99
Sensor OLET 31
Silicone 4 x 0,25 mm²

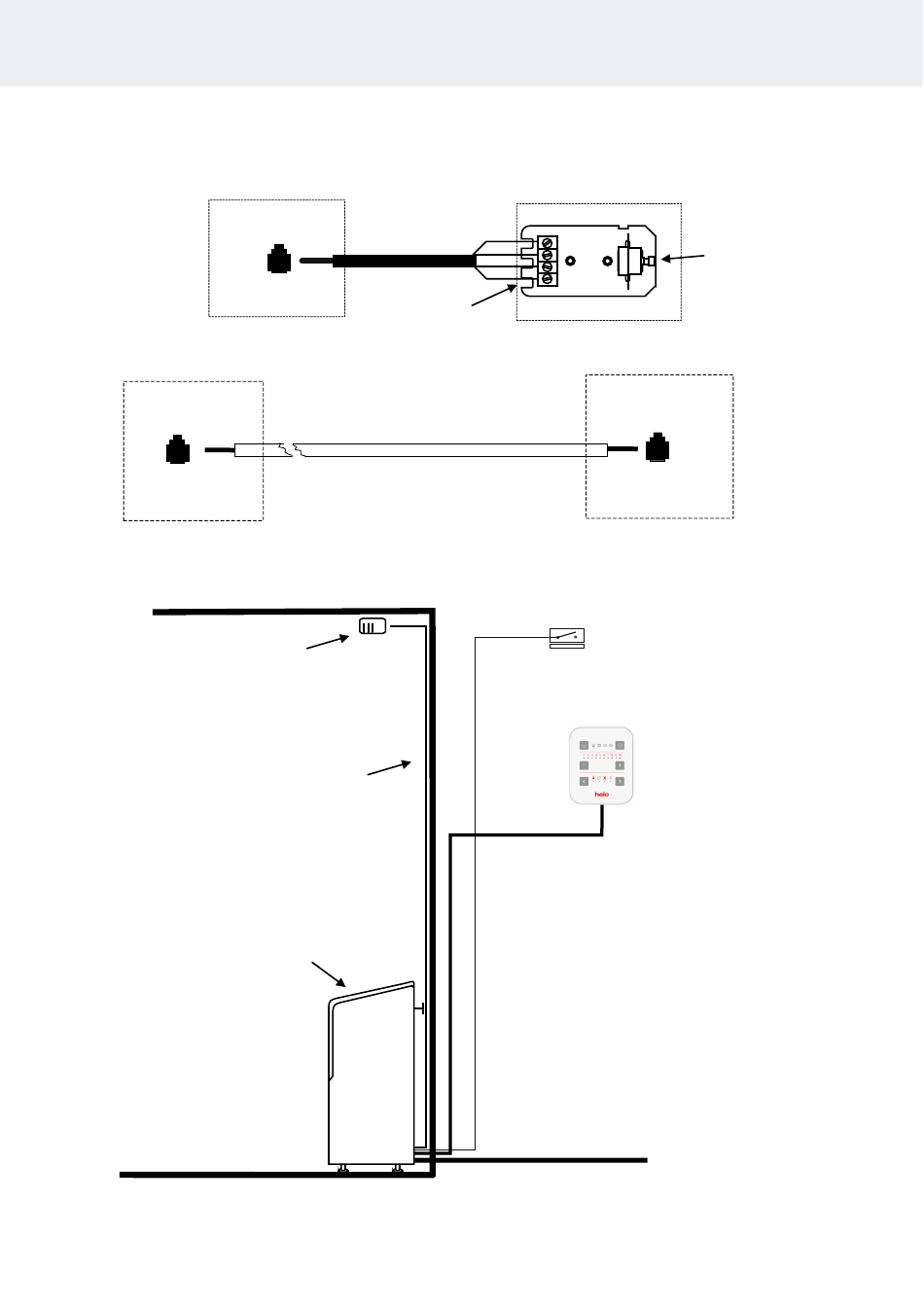

Figure 9 Principle image

Principle image when RA 31 Trend is used as control panel

1 = Blue
2 = White
3 = Red
4 = Yellow
RJ10 intermedia cable
Heater
Sensor OLET 31
4
3
2
1
Control panel
RA 31 Trend
Door Switch
Control panel
RA-31 Trend
NOTE!
See more detailed
installation instructions
in the control panel
operating instructions
Input
230V – 240V 1N~/ 2~
230V 3~
400V – 415V 3N~
13
End stop
return
acknowledgement
