CEBORA S.p.A.

5.4 - IGBT board (30) code 5602085.

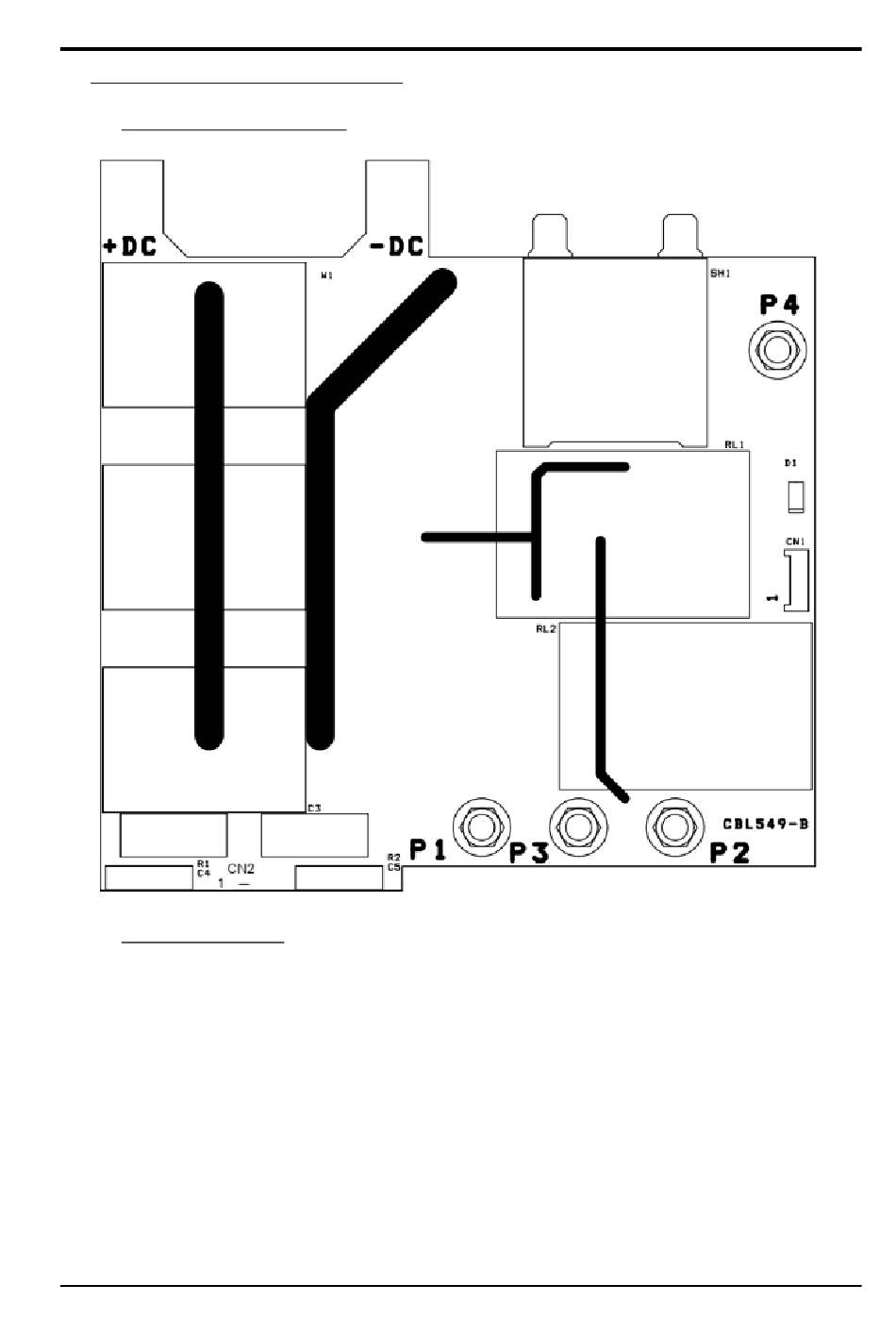

5.4.1 - Topographical drawing.
5.4.2 - Connector table.
Connector Terminals
CN1 1 - 4
CN1 2 - 3
CN2 1 - 2
- P1 - P2
- P3 - P4
- "+" - "-"
3302341
Function
relay RL2 control input for connection of primary windings for 400 Vac mains.
relay RL1 command input for connection of primary windings for 230 Vac mains.
connection to current limitation resistances for DC capacitors
output for one power transformer primary winding (52).
output for one power transformer primary winding (52).
direct voltage input (320 / 560 Vdc, approximately) for inverter power supply.
61
10/07/2019
