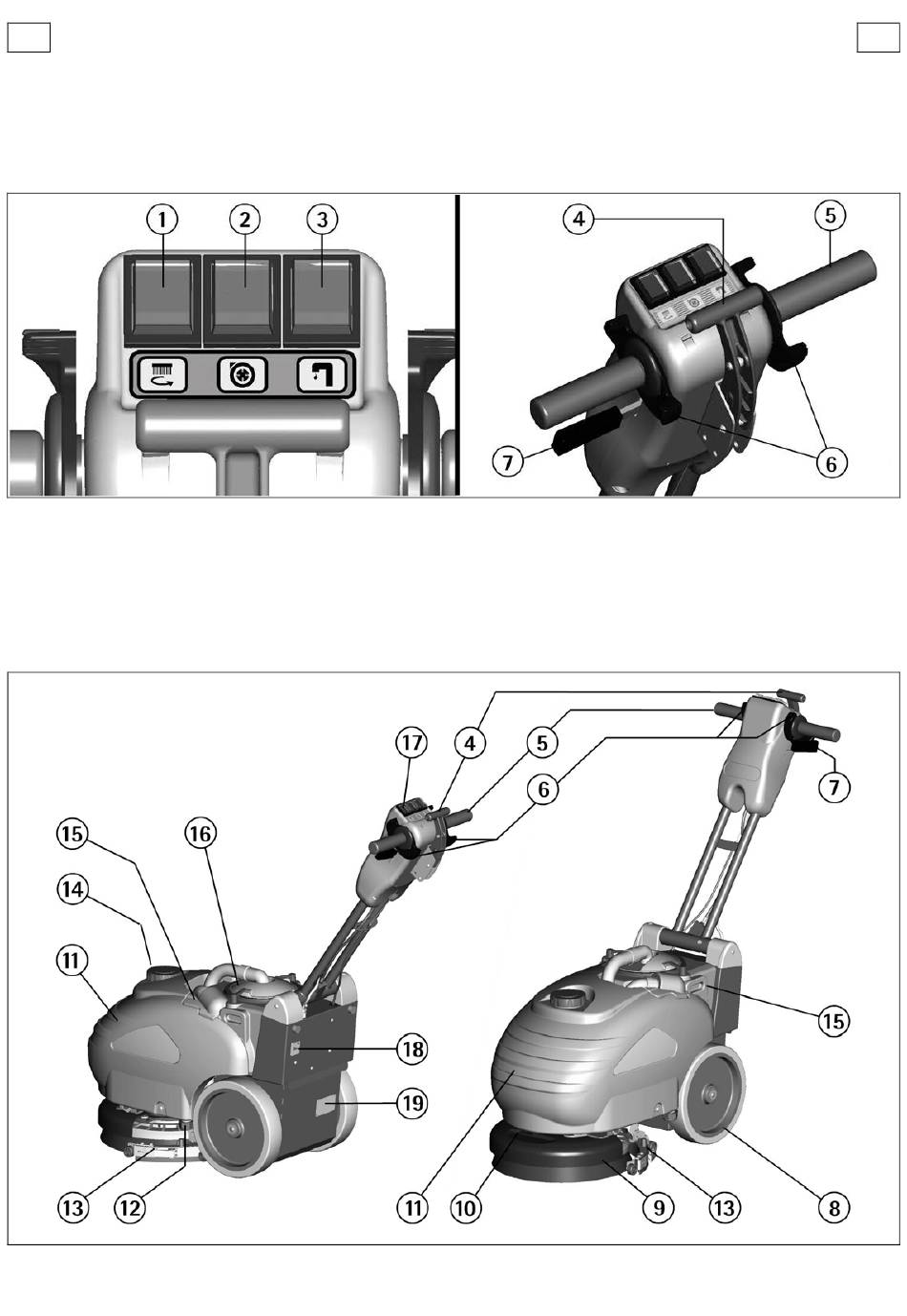

LEGEND INSTRUMENT BOARD AND CONTROLS

1. BRUSH MOTOR SWITCH WITH SIGNAL LAMP
2. SUCTION MOTOR SWITCH WITH SIGNAL LAMP
3. SOLENOID VALVE SWITCH WITH SIGNAL LAMP

LEGEND MACHINE

8. WHEELS
9. BRUSH BASE ASSEMBLY
10. SOLUTION FLOW ADJUSTMENT
11. SOLUTION TANK
12. DRAIN PLUG SOLUTION TANK
13. SQUEEGEE ASSEMBLY
4. SQUEEGEE LIFT LEVER
5. HANDLE BARS
6. SCRUB CONTROL LEVERS
7. HANDLE BAR RELEASE LEVER
14. FILLING CAP FOR SOLUTION TANK
15. RECOVERY TANK
16. SUCTION COVER
17. INSTRUMENT BOARD
18. MAINS PLUG FOR ELECTRIC CABLE
19. SERIAL NUMBER PLATE
