Csa Installation Drawing - 5332D - PR electronics 5332 Manual Del Producto

LERBAKKEN 10, 8410 RØNDE DENMARK.
Hazardous area
T4: -40 ≤ Ta ≤ 85ºC
T6: -40 ≤ Ta ≤ 60ºC
Terminal: 3,4,5,6
Connect only to passive, or
non-energy storing devices
such as RTD's.
CLASS 2258 04 - PROCESS CONTROL EQUIPMENT - Intrinsically Safe Entity - For Hazardous
Locations
Class I, Division 1, Groups A, B, C and D
Ex ia IIC, Ga
CLASS 2258 84 - PROCESS CONTROL EQUIPMENT - Intrinsically Safe Entity - For Hazardous
Locations - Certified to US Standards
Class I, Division 1, Groups A, B, C and D
Class I, Zone 0, AEx ia IIC, Ga
Warning:
Substitution of components may impair intrinsic safety.
The transmitters must be installed in a suitable enclosure to meet installation codes stipulated
in the Canadian Electrical Code (CEC) or for US the National Electrical Code (NEC).
Revision date:
2018-08-22
18

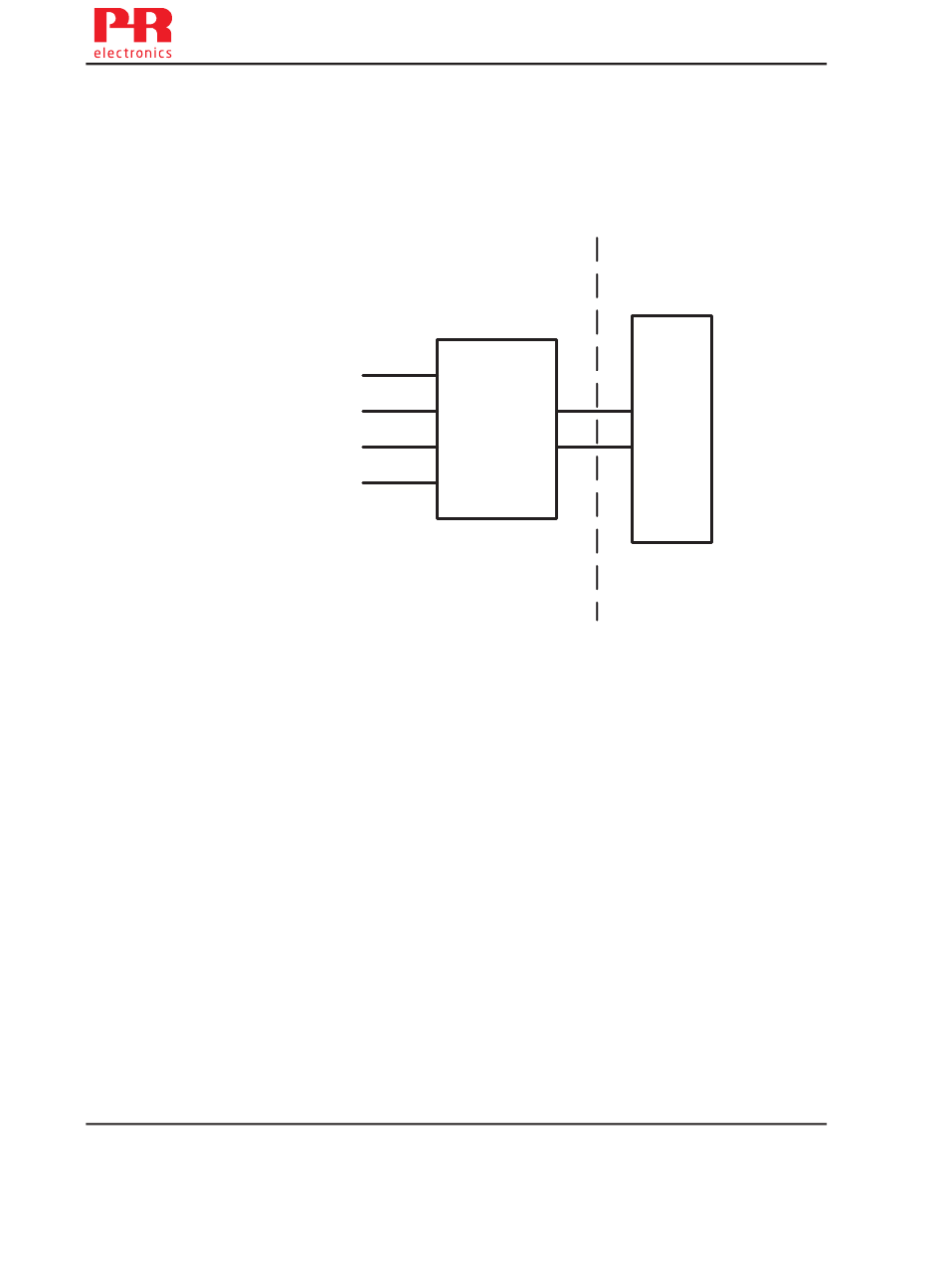

CSA Installation drawing 5332QC01
Version Revision
WWW.PRELECTRONICS.COM
6
+
1
5
-
2
4
3
5332D
Terminal: 1,2
Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W
Li: 10μH
Ci: 1.0nF
Doc. No.
V1R0 5332QC01
5332V101-ES
Non Hazardous Area
Barrier
Page:
1/1
