Chapter 3
Vehicular Cradle
This section provides instructions for using the Vehicular Cradle.
3.1
Placing the Portable Terminal in the Cradle
Procedure:
1 Place the radio in the cradle by aligning the slots on the lower side of the radio with the
alignment guides located at the bottom of the cradle.

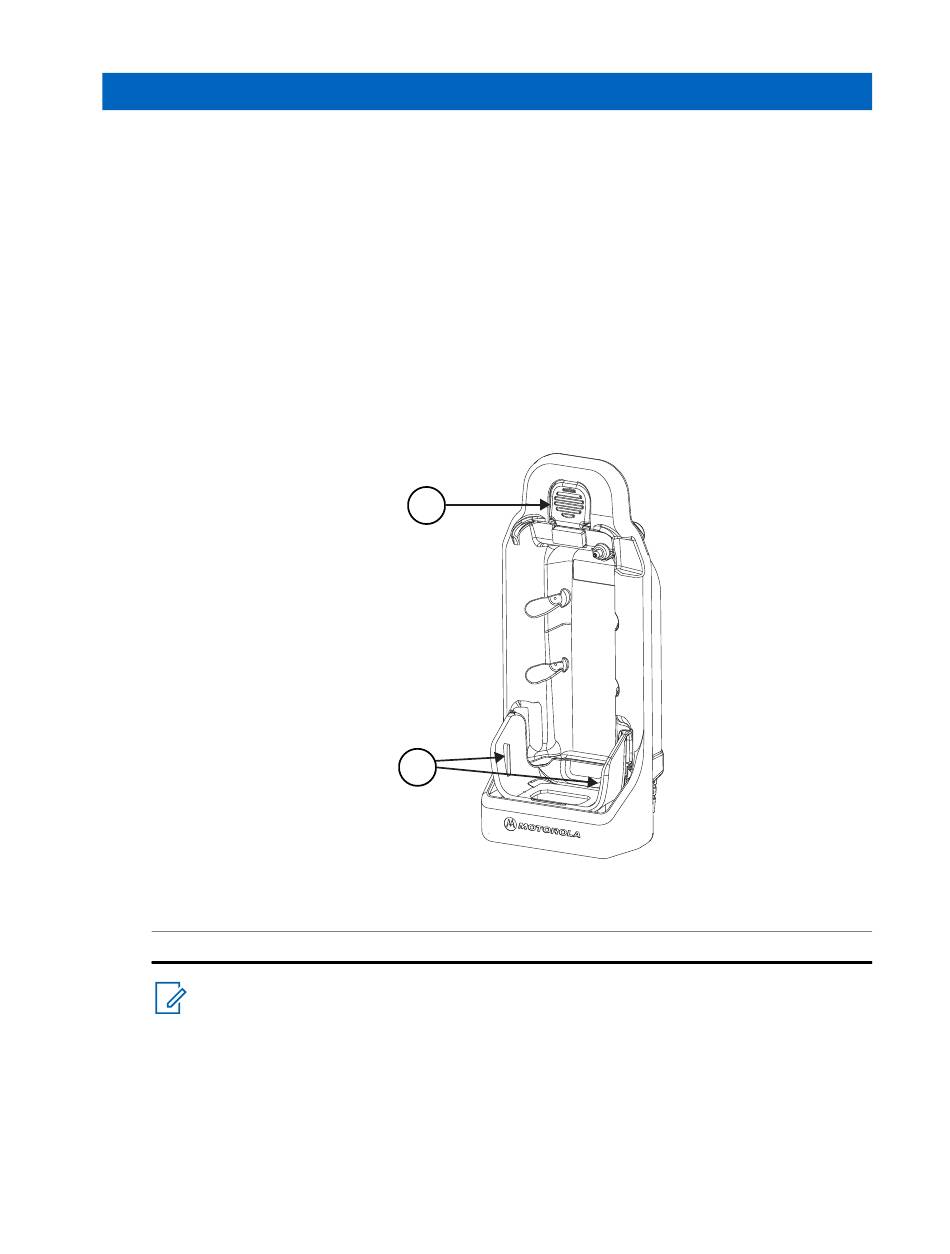

Figure 12: Vehicular Cradle
1
2
NOTE: For PMLN8306, PMLN8308, and PMLN8310, ensure that the radio RF Dust
Cover is open before inserting it to the cradle. See
22.
2 Push the radio downward toward the bottom of the cradle and rotate backwards until it locks into
place.
1
2
Cradle Release Button
Alignment Guide
Figure 13: MXP600 Radio on page
MN007820A01-AB
Vehicular Cradle
21
