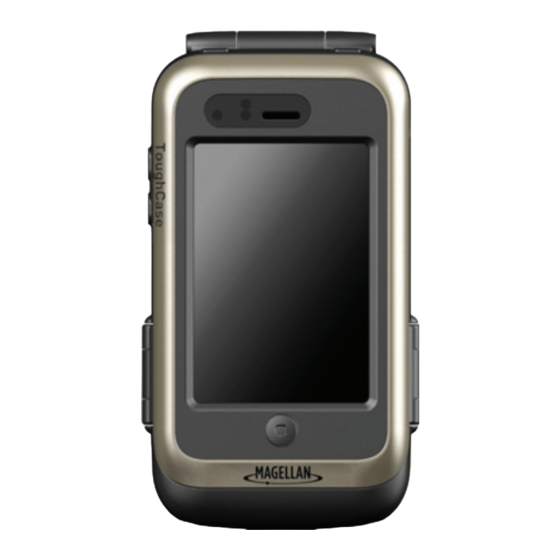

Magellan ToughCase Manual De Instrucciones

• Rugged and Waterproof to IPX-7 standards.
• Internal Battery charges your iPhone
• Built-in GPS receiver enhances the GPS reception for your iPhone and enables the iPod touch to use applications that require GPS
signals.
Made for:
iPhone 3GS, iPhone 3G, iPod touch (3rd generation), and iPod touch (2nd generation)
Specifications:
Waterproof:
GPS:
Antenna:
Battery:
Connectivity:
Headphones
Lift the flap to
reveal the 3.5mm
headphone
connector. Note:
headphones with
an inline
microphone, the
Locking Flap
Lift the locking flap
on both sides to
open the
ToughCase GPS
receiver.
Installing Your iPhone or iPod touch
Lift the locking flaps on both sides of the ToughCase GPS receiver and pivot the lid upwards. The Master Power switch (upper left side) is accessible when the lid is
open. Switch it to ON.
Connect your iPhone to the dock connector. If using an iPod touch, you need to place your iPod touch into the Sleeve (supplied) and then connect the assembly to
the dock connector.
Close the lid and hold the lid shut while snapping the locking flaps until you hear a 'click'.
Turning the ToughCase GPS Receiver Off
The ToughCase GPS receiver can be turned off to prevent unnecessary battery drain while being stored or during travel.
Release the Locking Flaps and open the ToughCase GPS receiver. Remove your iPhone or iPod touch from the ToughCase GPS receiver. This reveals the Master
Power switch. Slide it to OFF to keep battery charge.
Setting the ToughCase Power Mode
The ToughCase GPS receiver has four power modes available; OFF/ON (described above), idle, battery
only, or battery+GPS.
Pressing the Mode button (on the bottom of the ToughCase GPS receiver) causes the LEDs to display the
current mode the ToughCase GPS receiver is in. To change the mode you need to press the Mode switch
again before the LEDs go out. (When powering on, all lights flash momentarily.)
Magellan
® ®
or iPod touch .
IPX-7
SiRFStar III
Multidirectional Patch
Integrated, non-replaceable
Mini-USB
Headphone
Battery Level
Speaker
The speaker and microphone openings
provide access to the speaker and
microphone of the installed iPhone.
®
ToughCase TM Instruction Booklet
Mode
Microphone
471 El Camino Real
Santa Clara, CA 95050
USB Connector
Lift the flap to reveal the
USB connector used to
charge the ToughCase
GPS receiver or sync
your iPhone or iPod
touch with iTunes.
Volume Control
Top button increases
volume, lower button
decreases volume.
Locking Flap
Lift the locking flap on
both sides to open the
ToughCase GPS
receiver.
Mode - LED Indicators
Battery Only
Battery and
GPS
Powering Down
