INSTRUCTION MANUAL
PS130 12 VOLT POWER
PACK & PS160 CHARGER
The batteries in your new power pack are
not fully charged! First read the safety
instructions below. Then follow charging
notes and procedures.
WARNING: FOR SAFE OPERATION READ
INSTRUCTION MANUAL.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: When using electric tools basic Safety
precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury including the
following:
READ ALL INSTRUCTIONS
1. Do not incinerate the power pack even if it is severely
damaged or is completely worn out. The power pack can
explode in a fire.
2. A small leakage of liquid from the power pack cells may
occur under extreme usage or temperature conditions.
This does not indicate a failure. However, if the outer
seal is broken and this leakage gets on your skin –
a. Wash quickly with soap and water.
b. Neutralize with a mild acid such as lemon juice or
vinegar.
c. If battery liquid gets into your eyes, flush them with
clean water for a minimum of 10 minutes and seek
immediate medical attention. (Medical note: The liquid
is 25%-35% solution of potassium hydroxide.)
3. Never attempt to open the power pack for any reason.
If the plastic housing of the power pack breaks or cracks,
immediately discontinue use and do not recharge.
4. Do not carry extra "charged power packs" in aprons,
pockets, or tool boxes along with other metal objects.
Power pack could be short circuited causing damage to
the power pack and possibly causing severe burn or fire.
5. Charge the power packs listed above only in
Black & Decker chargers.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
SPECIFICATIONS
Power Packs
PS130 12V DC

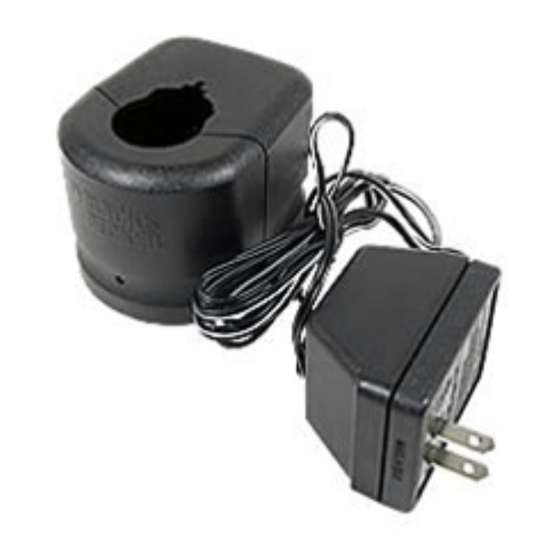

Chargers
PS160
Input 120V AC
60Hz
7.2W
Output 14.5V DC – 200MA
Charging Procedure
THE BATTERIES IN YOUR POWER PACK ARE NOT FULLY
CHARGED AT THE FACTORY. BEFORE ATTEMPTING TO
CHARGE THEM, THOROUGHLY READ ALL OF THE SAFETY
INSTRUCTIONS.
The PS130 (12 volt) power pack uses the PS160 charger.
To charge the power pack from your drill, follow the steps
below.
1. Remove the power pack from the tool, as shown in Figure
1.
2. Plug the charger into any standard 120 V 60 Hz electrical
outlet.
3. Insert the power pack into the charger, as shown in Figure 2
and let it charge for 3 hours.
4. Remove pack from the charger and replace in tool, as
shown in Figure 3.
5. If the power pack is run down completely, it may take up to
8 hours to become fully charged.
NOTE: A power pack will slowly lose its charge when kept
out of the charger. If the power pack has not been kept on
maintenance charge, it may need to be recharged before
use.
FIG. 2
FIG. 1
FIG. 3
