Āra vienības izmēri
W × H × D
760x590x285 (29,9x23,2x11,2)
810x558x310 (31,9x22x12,2)
845x700x320 (33,27x27,5x12,6)
900x860x315 (35,4x33,85x12,4)
945x810x395 (37,2x31,9x15,55)
990x965x345 (38,98x38x13,58)
938x1369x392
(36,93x53,9x15,43)
900x1170x350 (35,4x46x13,8)
800x554x333 (31,5x21,8x13,1)
845x702x363 (33,27x27,6x14,3)
946x810x420 (37,24x31,9x16,53)
946x810x410 (37,24x31,9x16,14)
952x1333x410 (37,5x52,5x16,14)
952x1333x415 (37,5x52,5x16,34)
890x673x342 (35x26,5x13,46)
Lapa 12-LV
(vienība: mm/collas)
Montāžas izmēri
Attālums A Attālums B
530 (20,85) 290 (11,4)
549 (21,6) 325 (12,8)
560 (22) 335 (13,2)
590 (23,2) 333 (13,1)
640 (25,2) 405 (15,95)
624 (24,58) 366 (14,4)
634 (24,96) 404 (15,9)
590 (23,2) 378 (14,88)
514 (20,24) 340 (13,39)
540 (21,26) 350 (13,8)
673 (26,5) 403 (15,87)
673 (26,5) 403 (15,87)
634 (24,96) 404 (15,9)
634 (24,96) 404 (15,9)
663 (26,1) 354 (13,94)

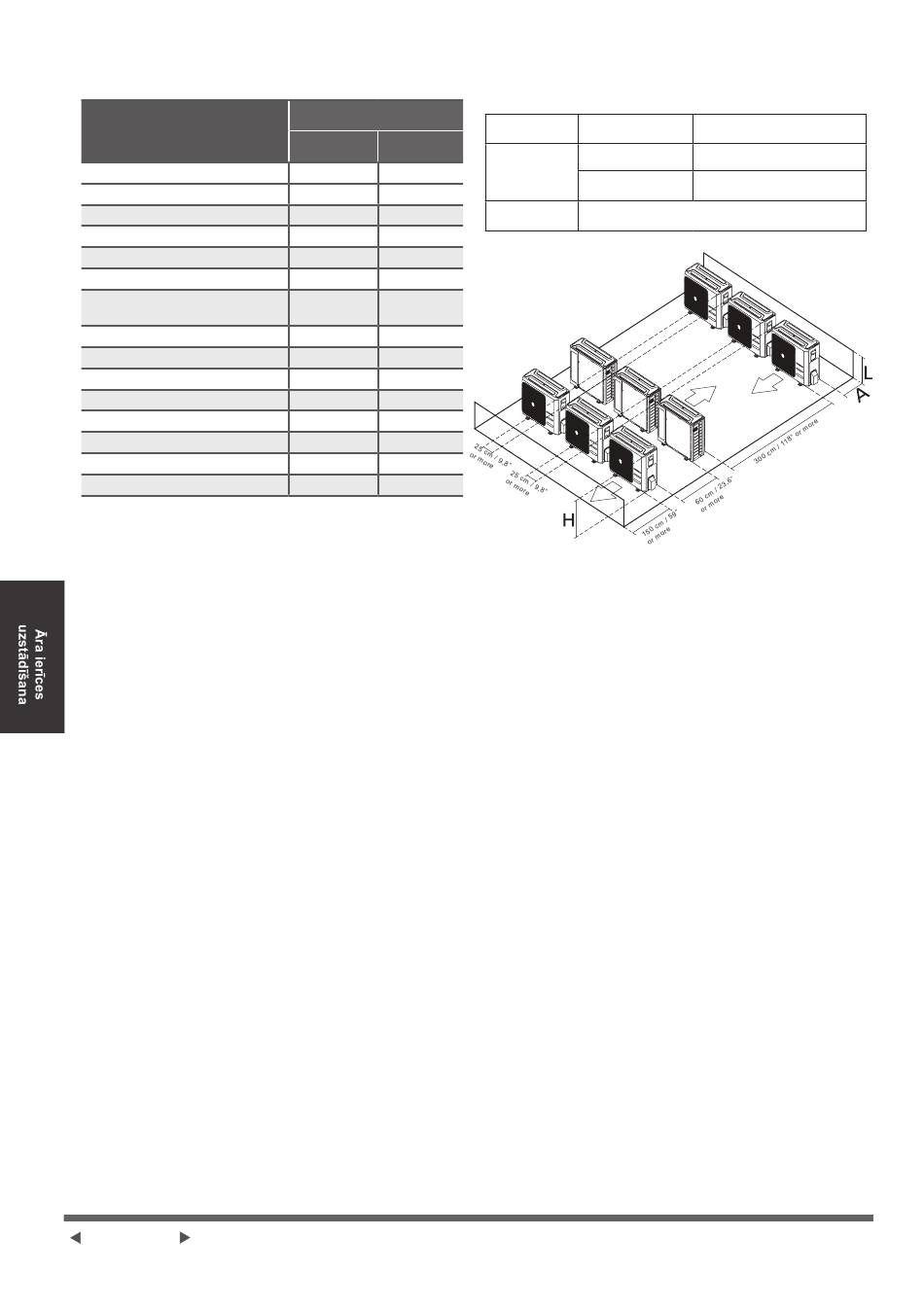

Sēriju uzstādīšanas rindas
H, A un L attiecības ir šādas.
L
L ≤ 1/2H
L ≤ H
1/2H < L ≤ H
L > H
A
25 cm / 9,8" or more
30 cm / 11,8" or more
Nevar instalēt
